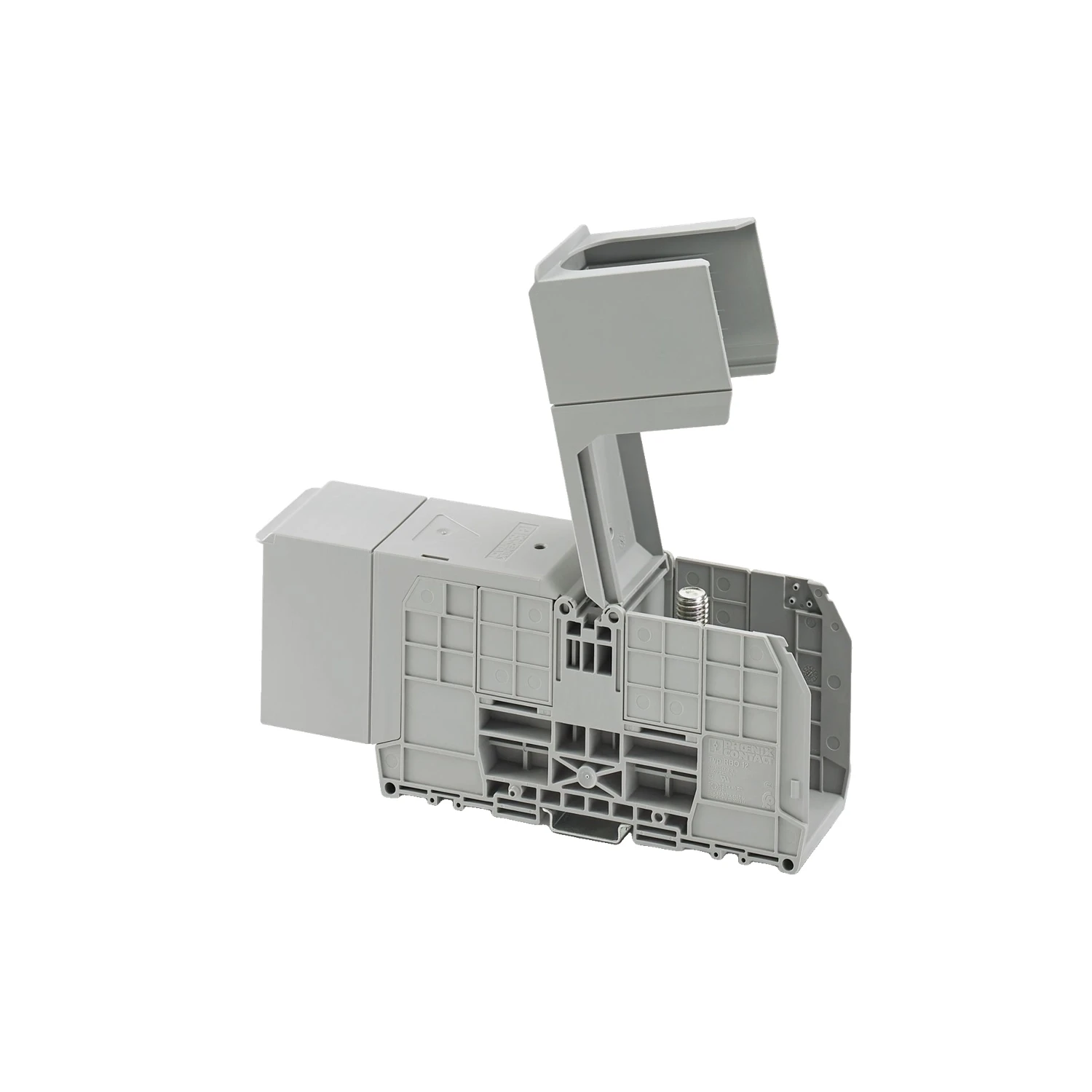

Phoenix Contact RBO 12-HC Bolt Connection Terminal Block 415A 240mm2 1500V DC Gray
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3247986
GTIN
—
Stock status:
In stock
priced individually
Net price: £19.90
Gross price
£23.88
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Phoenix Contact RBO 12-HC is a heavy-duty bolt connection terminal block rated for 240 mm² conductors. Designed for railway, machine building, and plant engineering panels where high-current termination is needed.
M12 bolt connection with cable lug interface to DIN 46234 and DIN 46235. ATEX-rated (Ex eb IIC Gb) and compliant with DIN EN 45545-2 for rail vehicle fire protection. Mounts on NS 35⁄7.5, NS 35⁄15, or NS 32 DIN rail, or direct screw fixing.
- 415 A nominal current, 240 mm² rated cross-section
- 1500 V DC / 1000 V AC nominal voltage
- Cross-section range: 10–240 mm² (8–500 kcmil)
- Tightening torque: 14–30 Nm
- Operating temperature: -60 °C to +110 °C
