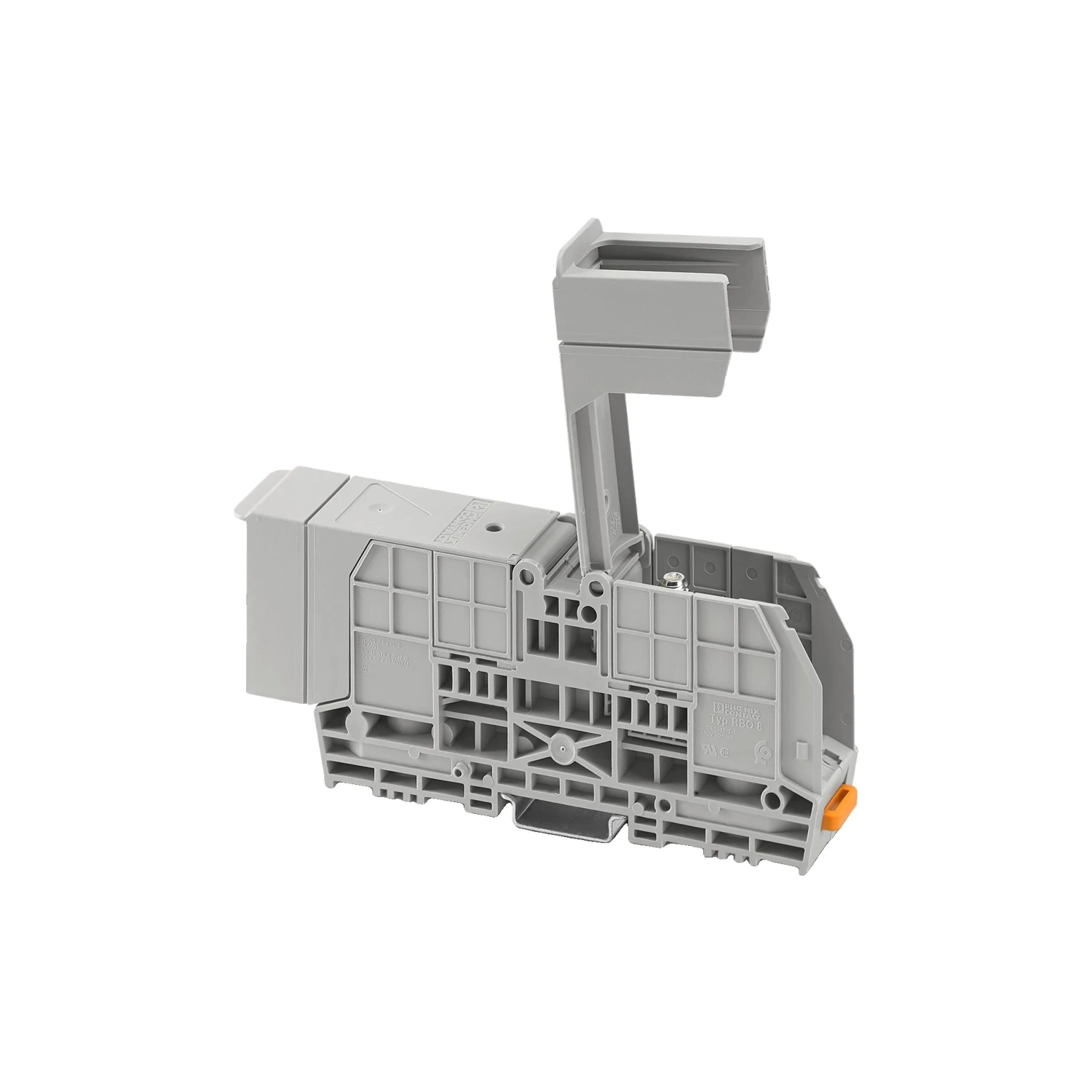

Photo is representative
Phoenix Contact RBO 8-HC Bolt Connection Terminal Block 1500V 192A 70mm² Gray
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3247973
GTIN
4046356725071
Stock status:
In stock
priced individually
More arriving soon
Net price: £12.67
Gross price
£15.21
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Phoenix Contact RBO 8-HC is a bolt connection terminal block rated for heavy-duty applications in railway, machine building, and plant engineering. Handles up to 70 mm² conductors via M8 bolt, accepting cable lugs to DIN 46234, DIN 46235, and DIN 46237.
ATEX/IECEx certified (II 2 GD Ex eb IIC Gb). Passes DIN EN 45545-2 fire protection requirements for rail vehicles across hazard levels HL1–HL3. Mounts on NS 35⁄7.5, NS 35⁄15, or NS 32 DIN rail, or direct screw fixing.
- 1500 V nominal voltage, 192 A nominal current
- 70 mm² rated cross-section (12–2/0 AWG flexible)
- M8 bolt, tightening torque 6–12 Nm
- Operating temperature: -60 °C to +110 °C
- Short-time withstand current: 8.4 kA (70 mm²)
