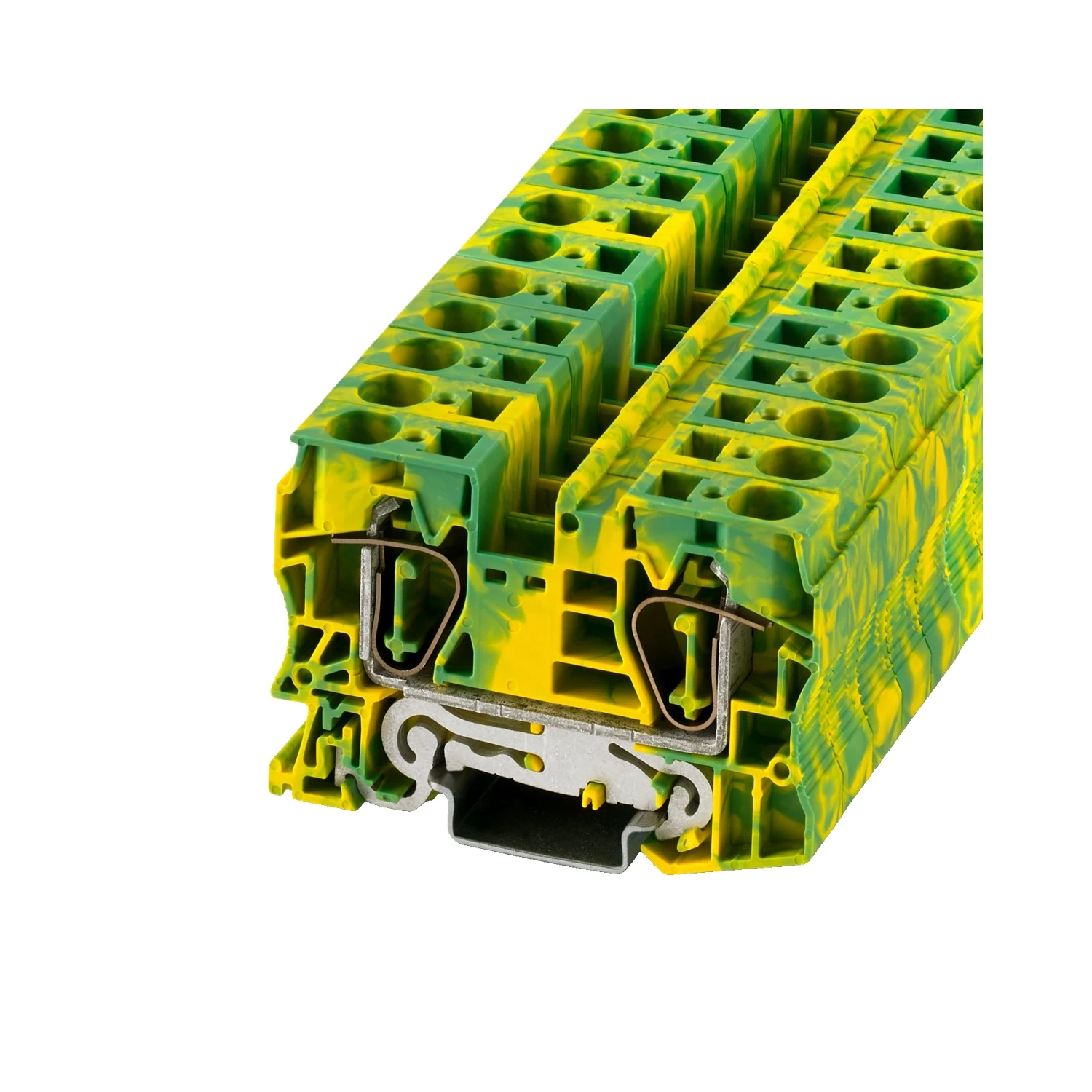

Phoenix Contact ST 16-PE 16mm Spring-Cage Earth Terminal Block Green Yellow

Photo is representative

Phoenix Contact ST 16-PE 16mm Spring-Cage Earth Terminal Block Green Yellow

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3036165
GTIN —
Stock status: In stock

priced individually

Net price: £5.57

Gross price

£6.68

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Spring-cage protective conductor terminal for grounding connections on DIN rail. Part of the Phoenix Contact ST series — suits both NS 35⁄7.5 and NS 35⁄15 rail. ATEX/IECEx rated (II 2 GD Ex eb IIC Gb), so it’s good for hazardous area panels too.

Grounding foot built in. 18 mm strip length. Two connections per level, single row.

  • Rated cross-section: 16 mm²
  • Rigid conductor range: 0.2–25 mm² (24–4 AWG)
  • Flexible conductor range: 0.2–16 mm² (24–6 AWG)
  • Operating temp: -60 °C to 110 °C
  • Flammability: UL 94 V-0
  • Rated surge voltage: 8 kV, Overvoltage Category III
Specifications

Connection Method

Spring-cage

Rated Cross-Section

16 mm²

Conductor Range (Rigid)

0.2–25 mm² (24–4 AWG)

Conductor Range (Flexible)

0.2–16 mm² (24–6 AWG)

Stripping Length

18 mm

Number of Connections

2

Mounting Type

NS 35/7.5, NS 35/15

Rated Surge Voltage

8 kV

Overvoltage Category

III

Ambient Temp (Operation)

-60 °C to 110 °C

Ambient Temp (Assembly/Actuation)

-5 °C to 70 °C

Flammability Rating

UL 94 V-0

Insulating Material

PA

Ex Certification

II 2 GD Ex eb IIC Gb (ATEX/IECEx)

Connection Standard

IEC 60947-7-2

Colour

Green-yellow

Width

12.2 mm

Height

80 mm

Depth on NS 35/7.5

51.5 mm

Depth on NS 35/15

59 mm

Documents

datasheet Phoenix Contact 3036165 Datasheet
