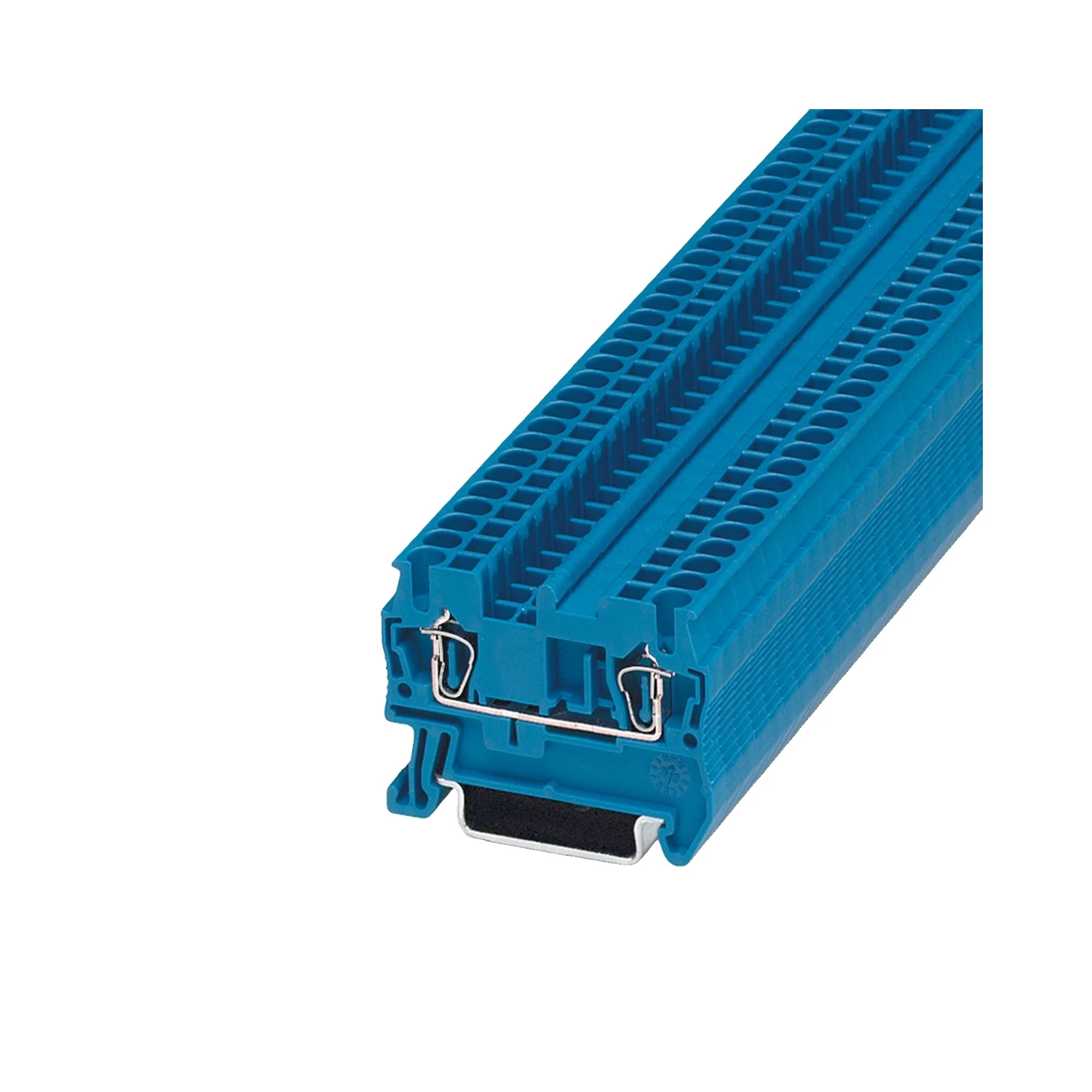

Phoenix Contact ST 2.5 BU Spring-Cage Feed-Through Terminal Block 800V Blue
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3031225
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £0.52
Gross price
£0.63
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Spring-cage feed-through terminal from Phoenix Contact’s ST range. Blue (RAL 5015). Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Rated to IEC 60947-7-1, with ATEX/IECEx certification and full DIN EN 45545-2 fire protection compliance for railway applications.
Suitable for machine building, plant engineering, process industry, and rail vehicle wiring.
- Nominal voltage: 800 V / nominal current: 24 A (at 2.5 mm²)
- Conductor range: 0.08–4 mm² rigid, 0.08–2.5 mm² flexible, 28–12 AWG
- Stripping length: 8–10 mm
- Operating temperature: -60 °C to +110 °C
- UL 94 V-0 insulation, polyamide (PA)
