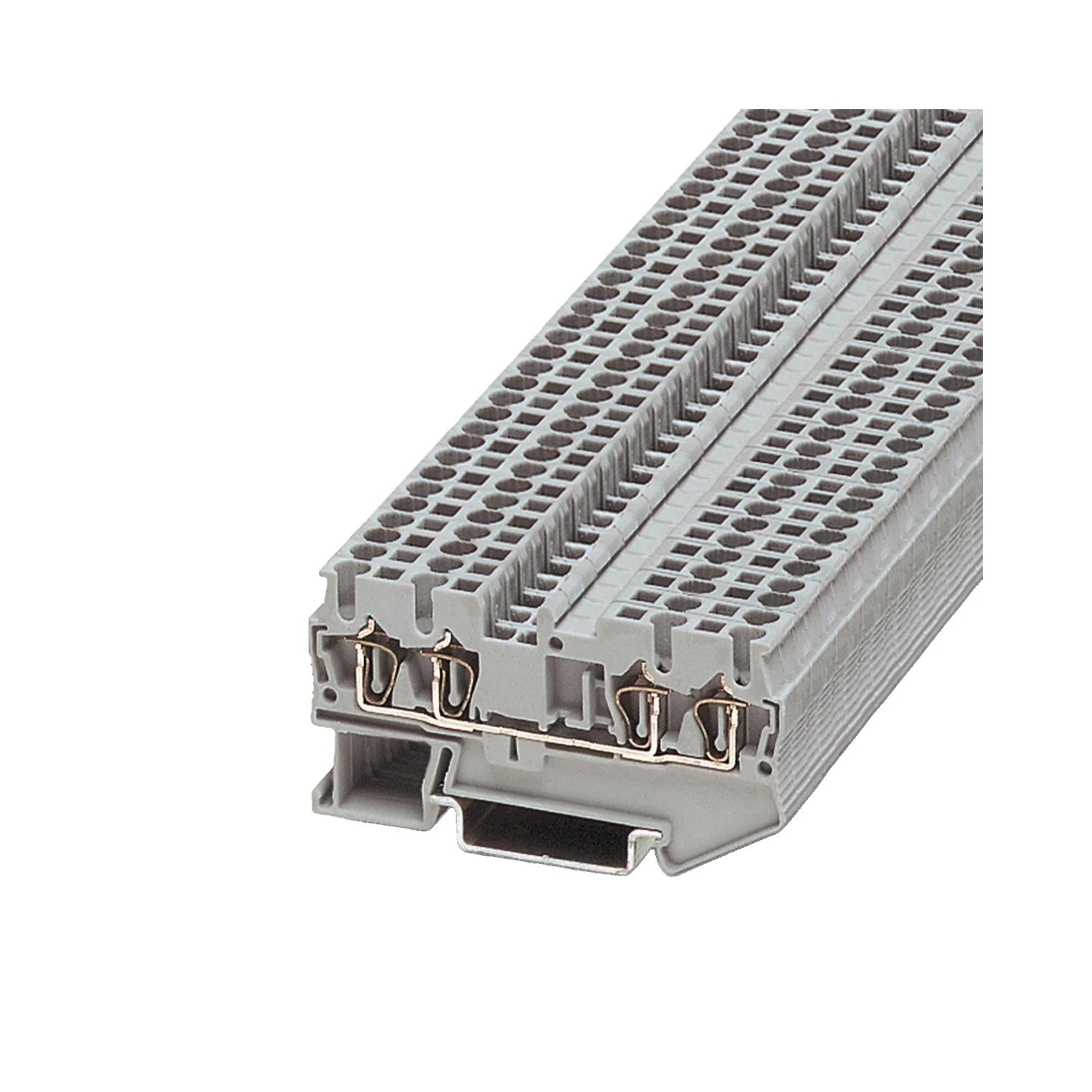

Phoenix Contact ST 2.5-QUATTRO 4-Connection Spring-Cage Feed-Through Terminal Block 800V Gray
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3031306
GTIN
—
Stock status:
Out of stock
priced individually
More arriving soon
Net price: £0.91
Gross price
£1.09
Spring-cage feed-through terminal block from Phoenix Contact’s ST series. Four connections, single potential — suits multi-conductor wiring in panels, machinery, and railway applications.
ATEX/IECEx rated (Ex eb IIC Gb) and fire-rated to DIN EN 45545-2 HL1–HL3, so it’s suitable where those certifications are a requirement.
- Nominal voltage: 800 V, nominal current: 24 A (4 mm²)
- Conductor cross-section: 0.08–4 mm² rigid, 0.08–2.5 mm² flexible
- Stripping length: 8–10 mm
- Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail
- Operating temp: -60 °C to +110 °C
- Width: 5.2 mm, colour: gray (RAL 7042)
