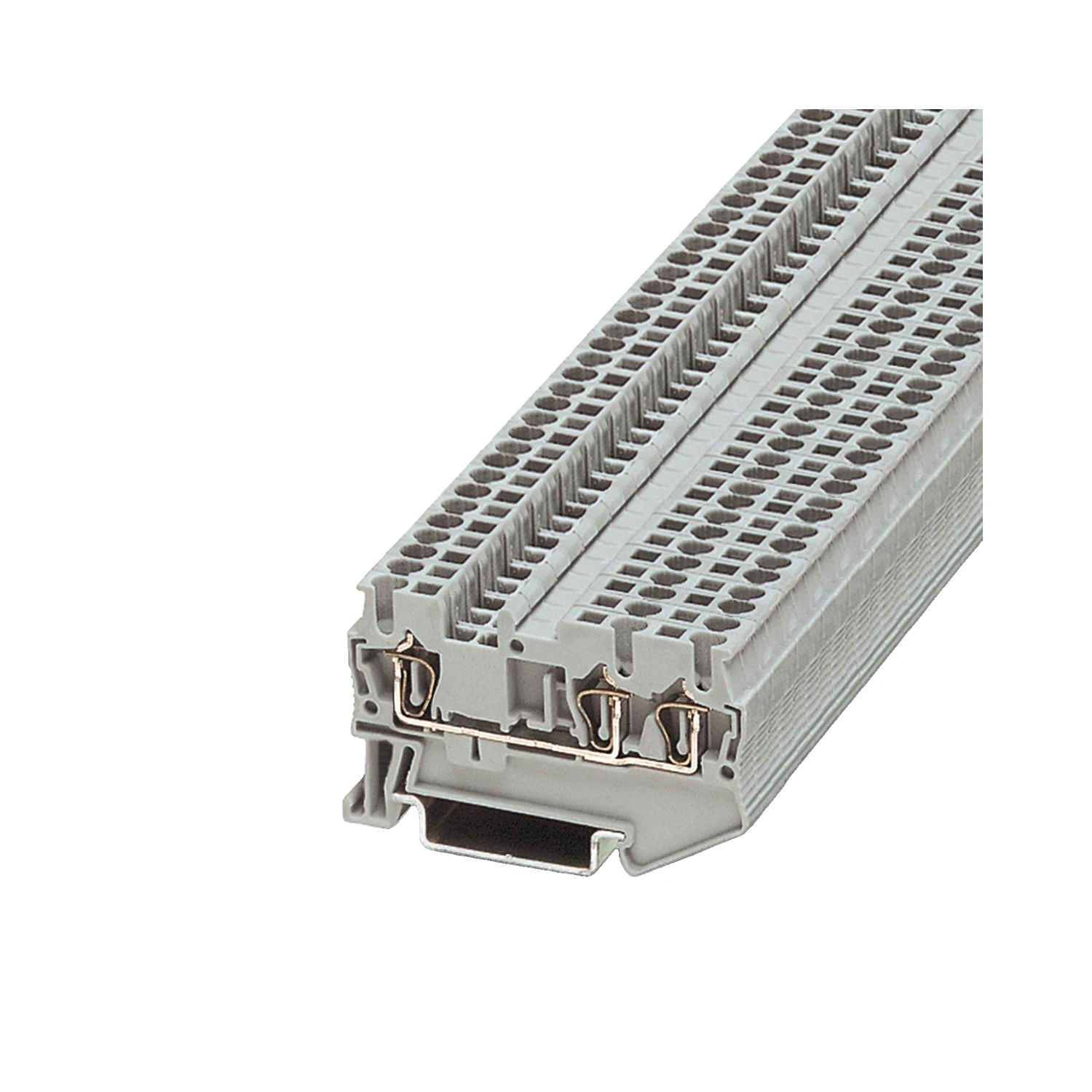

Phoenix Contact ST 2.5-TWIN 24A Spring-Cage Feed-Through Terminal Block 800V Gray
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3031241
GTIN
—
Stock status:
Out of stock
priced individually
Net price: £0.92
Gross price
£1.10
Spring-cage feed-through terminal block from Phoenix Contact’s ST series. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Three connections per block, one potential — suits control panels, machine building, and process plant work.
Tool-free spring-cage connection. Accepts rigid, flexible, ferrule, and TWIN ferrule terminations. Rated for vibration per DIN EN 50155 — certified for railway applications.
- 24A nominal / 800V, rated surge voltage 8 kV
- Nominal cross-section 2.5mm²; rigid up to 4mm², flexible up to 2.5mm²
- Stripping length 8–10mm
- Width 5.2mm, height 60.5mm
- PA insulator, UL 94 V-0, operating temp -60°C to +110°C
- ATEX/IECEx rated: Ex eb IIC Gb
