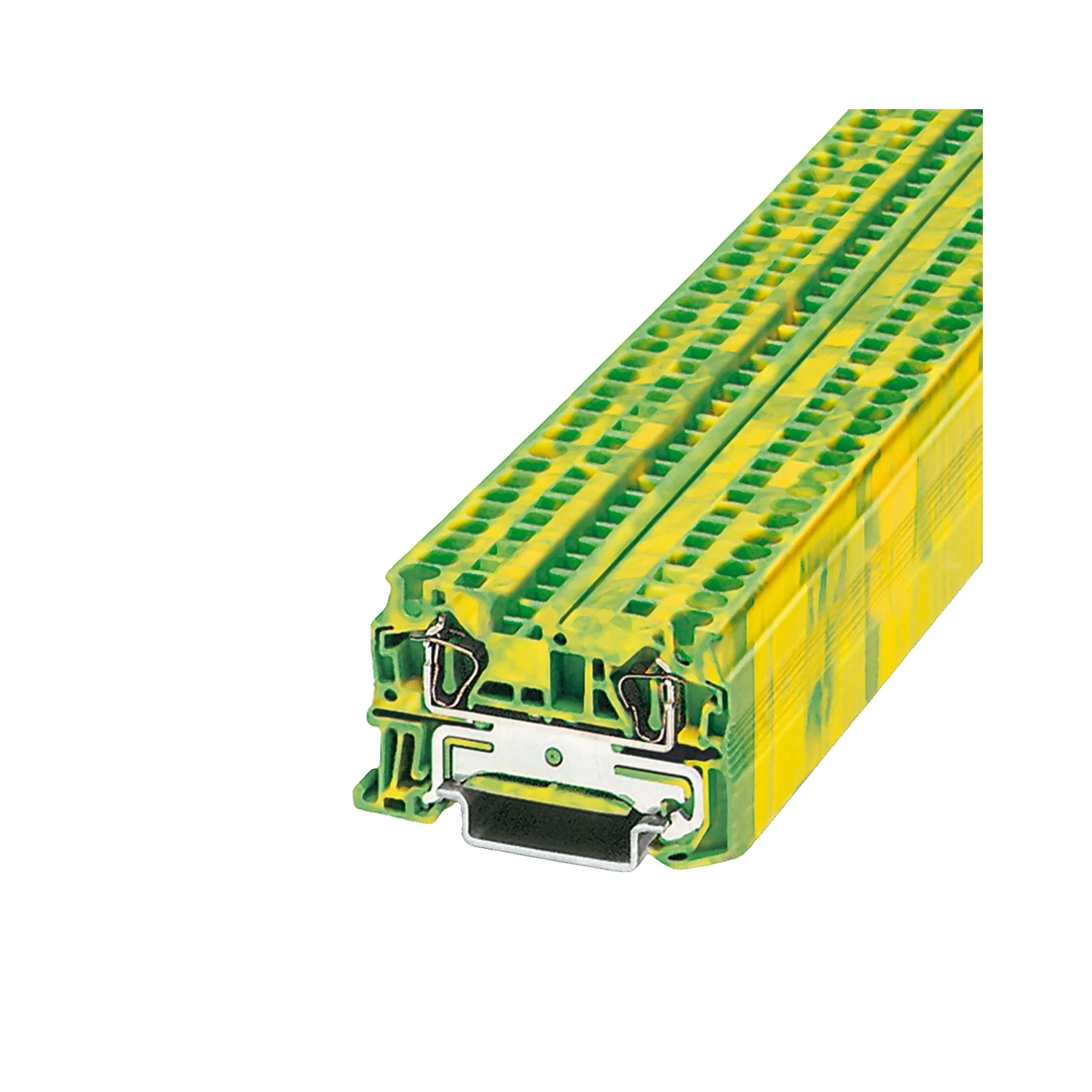

Phoenix Contact ST 4-PE Spring-Cage PE Terminal Block Green-Yellow 3031380

Photo is representative

Phoenix Contact ST 4-PE Spring-Cage PE Terminal Block Green-Yellow 3031380

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3031380
GTIN —
Stock status: In stock

priced individually

Net price: £2.67

Gross price

£3.20

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Spring-cage PE terminal block from the Phoenix Contact ST series. Designed for protective conductor connections on NS 35⁄7.5 or NS 35⁄15 DIN rail, with a grounding foot for direct rail contact.

Rated to IEC 60947-7-2 and ATEX/IECEx certified (II 2 GD Ex eb IIC Gb). Operates across a wide temperature range — suitable for railway, process, and machine-building applications.

  • Nominal cross-section: 4 mm²
  • Rigid conductor range: 0.08–6 mm² / 28–10 AWG
  • Flexible conductor range: 0.08–4 mm²
  • Stripping length: 8–10 mm
  • Operating temp: -60 °C to +85 °C
  • Width: 6.2 mm
Specifications

Connection Method

Spring-cage connection

Nominal Cross-Section

4 mm²

Conductor Range (Rigid)

0.08–6 mm²

Conductor Range (Flexible)

0.08–4 mm²

Conductor Range (Ferrule with sleeve)

0.14–4 mm²

AWG Range (Rigid)

28–10 AWG

AWG Range (Flexible)

28–12 AWG

Stripping Length

8–10 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Operating Temperature

-60 °C to +85 °C

Mounting Type

NS 35/7.5, NS 35/15

Width

6.2 mm

Height

56 mm

Depth on NS 35/7.5

36.5 mm

Depth on NS 35/15

44 mm

Colour

Green-yellow

Insulating Material

PA

Flammability Rating

UL 94 V-0

Connection Standard

IEC 60947-7-2

ATEX/IECEx Classification

II 2 GD Ex eb IIC Gb

Grounding Foot

Yes

Number of Connections

2

Degree of Pollution

3

Documents

datasheet Phoenix Contact 3031380 Datasheet
