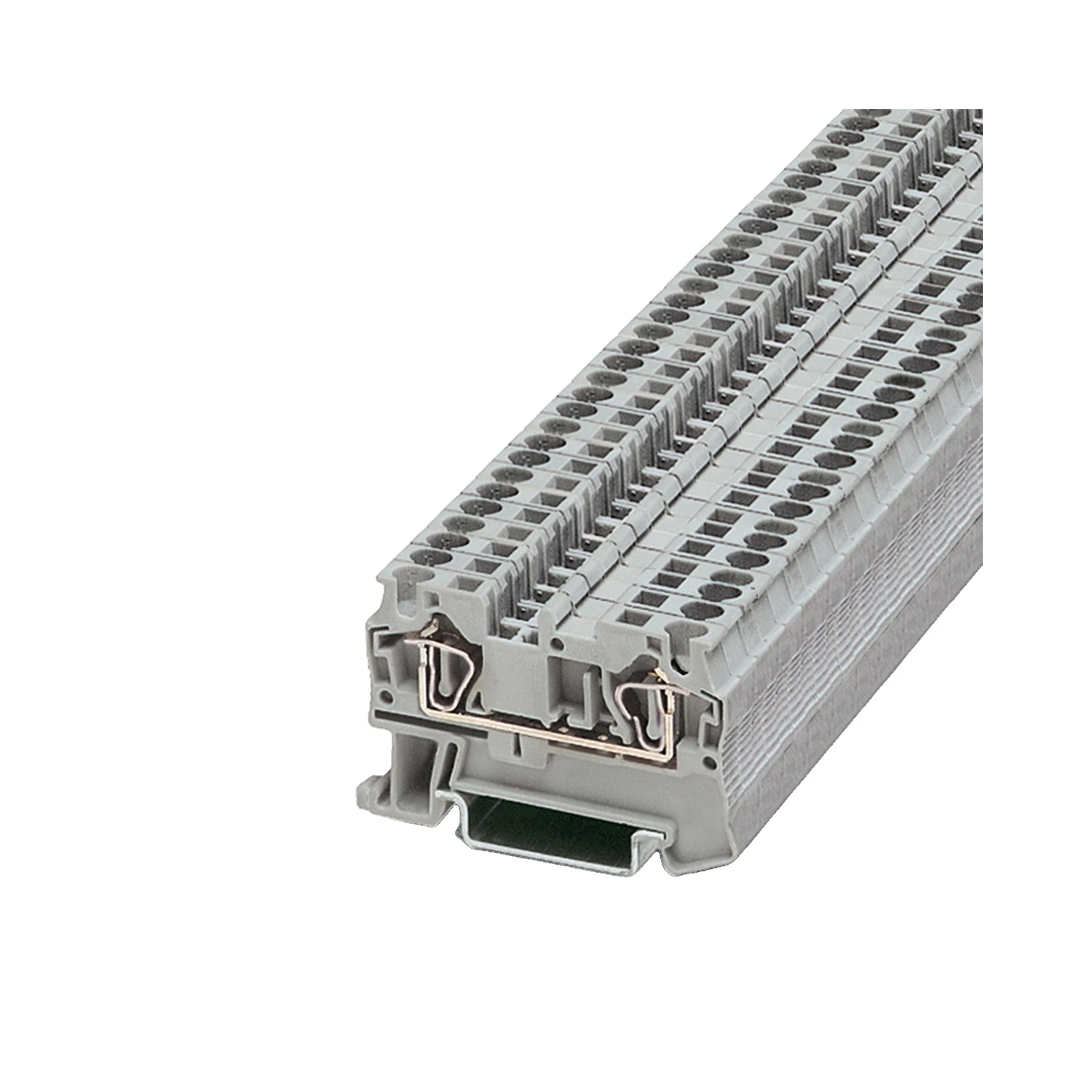

Phoenix Contact ST 4 Spring-Cage Feed-Through Terminal Block 800V Gray 3031364

Photo is representative

Phoenix Contact ST 4 Spring-Cage Feed-Through Terminal Block 800V Gray 3031364

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3031364
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £0.81

Gross price

£0.98

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Phoenix Contact ST 4 is a spring-cage feed-through terminal block from the ST series. Rated at 800V and 32A nominal, it suits panel building, machine building, railway, and process industry installations.

Spring-cage connection gives vibration-resistant, tool-free termination. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. PA insulator body is UL 94 V-0 rated and meets DIN EN 45545-2 for rail vehicle fire protection.

  • Connection: Spring-cage, 2 connections per terminal
  • Rated cross-section: 4mm² | Rigid: 0.08–6mm² (28–10 AWG) | Flexible: 0.08–4mm² (28–12 AWG)
  • Stripping length: 8–10mm
  • Operating temp: -60°C to +110°C
  • Width: 6.2mm | Height: 56mm
  • ATEX/IECEx rated: II 2 GD Ex eb IIC Gb
Specifications

Nominal Voltage

800 V

Nominal Current

32 A

Maximum Load Current

40 A (with 6 mm² conductor)

Rated Surge Voltage

8 kV

Rated Cross-Section

4 mm²

Conductor Range (Rigid)

0.08–6 mm² / 28–10 AWG

Conductor Range (Flexible)

0.08–4 mm² / 28–12 AWG

Connection Method

Spring-cage

Stripping Length

8–10 mm

Mounting Type

NS 35/7.5, NS 35/15

Width

6.2 mm

Height

56 mm

Operating Temperature

-60 °C to +110 °C

Flammability Rating

UL 94 V-0

Overvoltage Category

III

Connection Standard

IEC 60947-7-1

Colour

Gray (RAL 7042)

ATEX/IECEx Classification

II 2 GD Ex eb IIC Gb

Documents

datasheet Phoenix Contact 3031364 Datasheet
