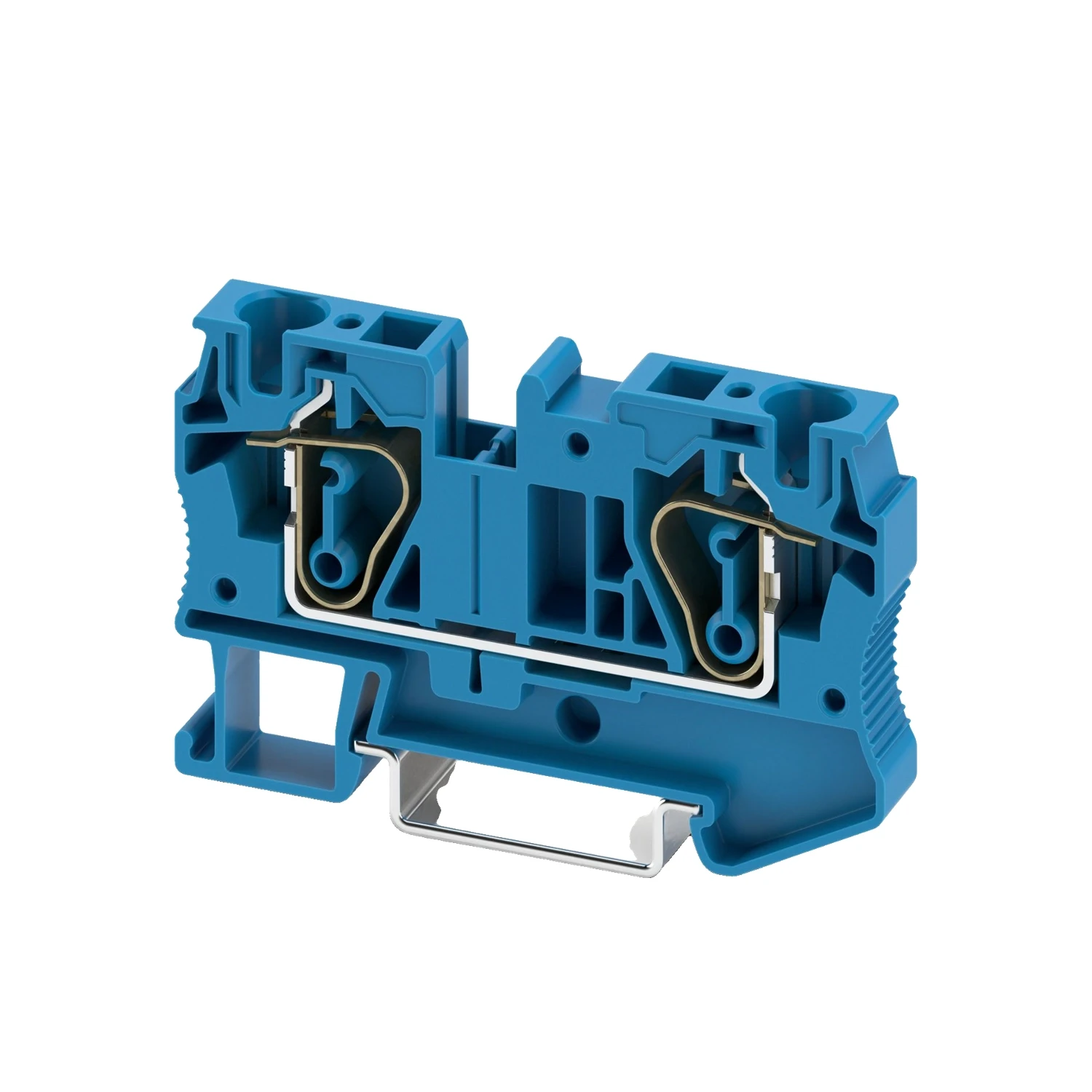

Phoenix Contact ST 6 BU 41A Feed-through Terminal Block 1000V Blue Spring-cage
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3031490
GTIN
—
Stock status:
In stock
priced individually
Net price: £1.43
Gross price
£1.71
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Spring-cage feed-through terminal block from the Phoenix Contact ST series. Blue (RAL 5015). Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Suits railway, machine building, plant engineering, and process industry panels.
ATEX/IECEx rated for hazardous areas (II 2 GD Ex eb IIC Gb). PA insulator, UL 94 V-0 flammability, overvoltage category III.
- Rated cross-section: 6 mm² | Rigid: 0.2–10 mm² (24–8 AWG) | Flexible: 0.2–6 mm² (24–10 AWG)
- Stripping length: 12 mm
- Nominal current: 41 A | Max load current: 52 A (with 10 mm²)
- Nominal voltage: 1000 V | Surge voltage: 8 kV
- Operating temp: -60 °C to +110 °C
- Width: 8.2 mm | Height: 69.5 mm
