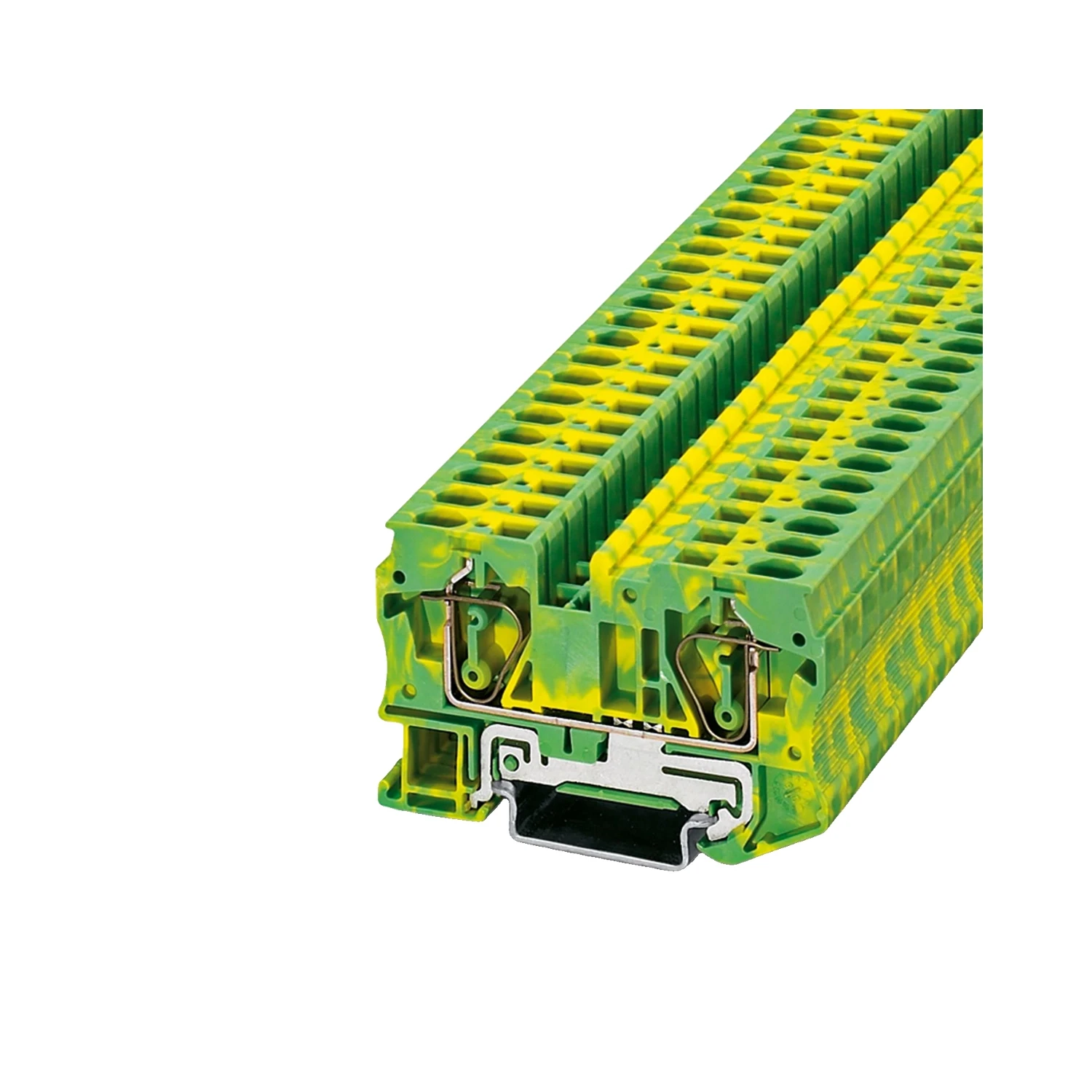

Phoenix Contact ST 6-PE Spring-Cage Protective Conductor Terminal Block Green-Yellow

Photo is representative

Phoenix Contact ST 6-PE Spring-Cage Protective Conductor Terminal Block Green-Yellow

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3031500
GTIN —
Stock status: In stock

priced individually

Net price: £4.33

Gross price

£5.20

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Spring-cage PE terminal block from Phoenix Contact’s ST series. Designed for grounding circuits in machine building, plant engineering, process industry, and railway applications. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail.

Key specs:

  • Nominal cross-section: 6 mm²
  • Rigid conductor range: 0.2–10 mm² (24–8 AWG)
  • Flexible conductor range: 0.2–6 mm² (24–10 AWG)
  • Rated surge voltage: 8 kV
  • Operating temperature: -60 °C to 110 °C
  • UL 94 V-0 insulation, PA housing
  • ATEX/IECEx rated: II 2 GD Ex eb IIC Gb
  • Passes DIN EN 45545-2 R22–R26 (HL1–HL3) for rail vehicles
Specifications

Connection Method

Spring-cage connection

Nominal Cross-Section

6 mm²

Conductor Range (Rigid)

0.2–10 mm² / 24–8 AWG

Conductor Range (Flexible)

0.2–6 mm² / 24–10 AWG

Conductor Range (Ferrule with Sleeve)

0.25–6 mm²

Stripping Length

12 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Degree of Pollution

3

Operating Temperature

-60 °C to 110 °C

Mounting

NS 35/7.5, NS 35/15

Width

8.2 mm

Height

69.5 mm

Depth on NS 35/7.5

43.5 mm

Depth on NS 35/15

51 mm

Insulating Material

PA

Flammability Rating

UL 94 V-0

Colour

Green-yellow

ATEX/IECEx Classification

II 2 GD Ex eb IIC Gb

Standard

IEC 60947-7-2

Number of Connections

2

Number of Rows

1

Documents

datasheet Phoenix Contact 3031500 Datasheet
