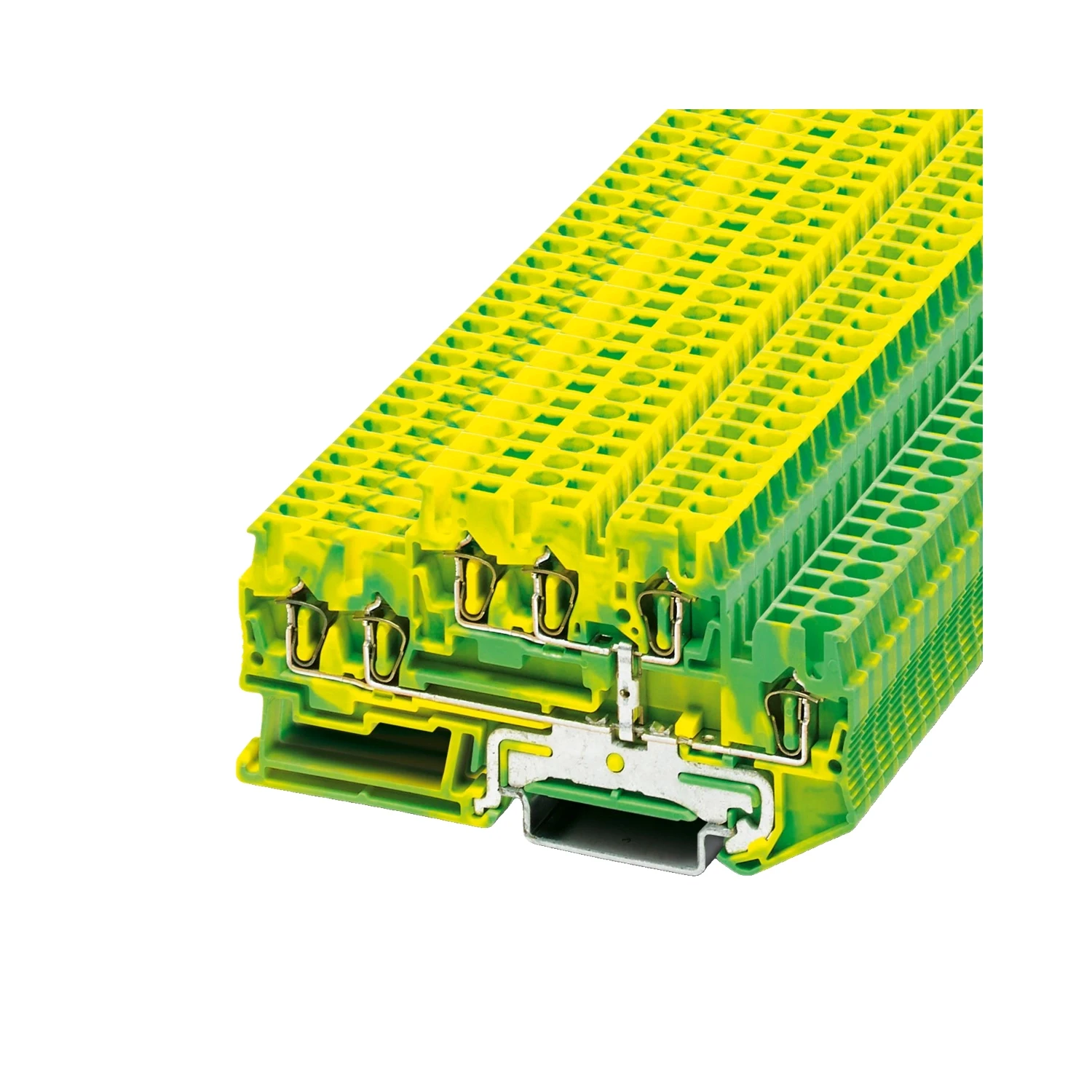

Phoenix Contact STTB 2.5-TWIN-PE 2.5mm² Double-Level PE Terminal Block Green-Yellow

Photo is representative

Phoenix Contact STTB 2.5-TWIN-PE 2.5mm² Double-Level PE Terminal Block Green-Yellow

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3038532
GTIN —
Stock status: In stock

priced individually

Net price: £6.42

Gross price

£7.70

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Double-level PE terminal block from Phoenix Contact’s ST family. Spring-cage connection, direct DIN rail contact for grounding. Two levels, three connections per level — six termination points in a 5.2 mm width.

Built to IEC 60947-7-2. Suits panel builds, machine building, and railway applications.

  • Nominal cross-section: 2.5 mm²
  • Rigid conductor range: 0.08–4 mm² (28–12 AWG)
  • Flexible conductor range: 0.08–2.5 mm² (28–14 AWG)
  • Stripping length: 8–10 mm
  • Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail
  • Green-yellow, PA insulator, UL 94 V-0
Specifications

Connection Method

Spring-cage

Nominal Cross-Section

2.5 mm²

Conductor Cross-Section Rigid

0.08–4 mm² (28–12 AWG)

Conductor Cross-Section Flexible

0.08–2.5 mm² (28–14 AWG)

Stripping Length

8–10 mm

Number of Connections

6

Number of Levels

2

Connections Per Level

3

Mounting Type

NS 35/7.5, NS 35/15

Width

5.2 mm

Height

91.5 mm

Depth on NS 35/7.5

47.5 mm

Rated Surge Voltage

6 kV

Overvoltage Category

III

Ambient Temperature (Operation)

-60 °C to +110 °C

Flammability Rating

UL 94 V-0

Insulating Material

PA

Colour

Green-yellow

Standard

IEC 60947-7-2

Documents

datasheet Phoenix Contact 3038532 Datasheet
