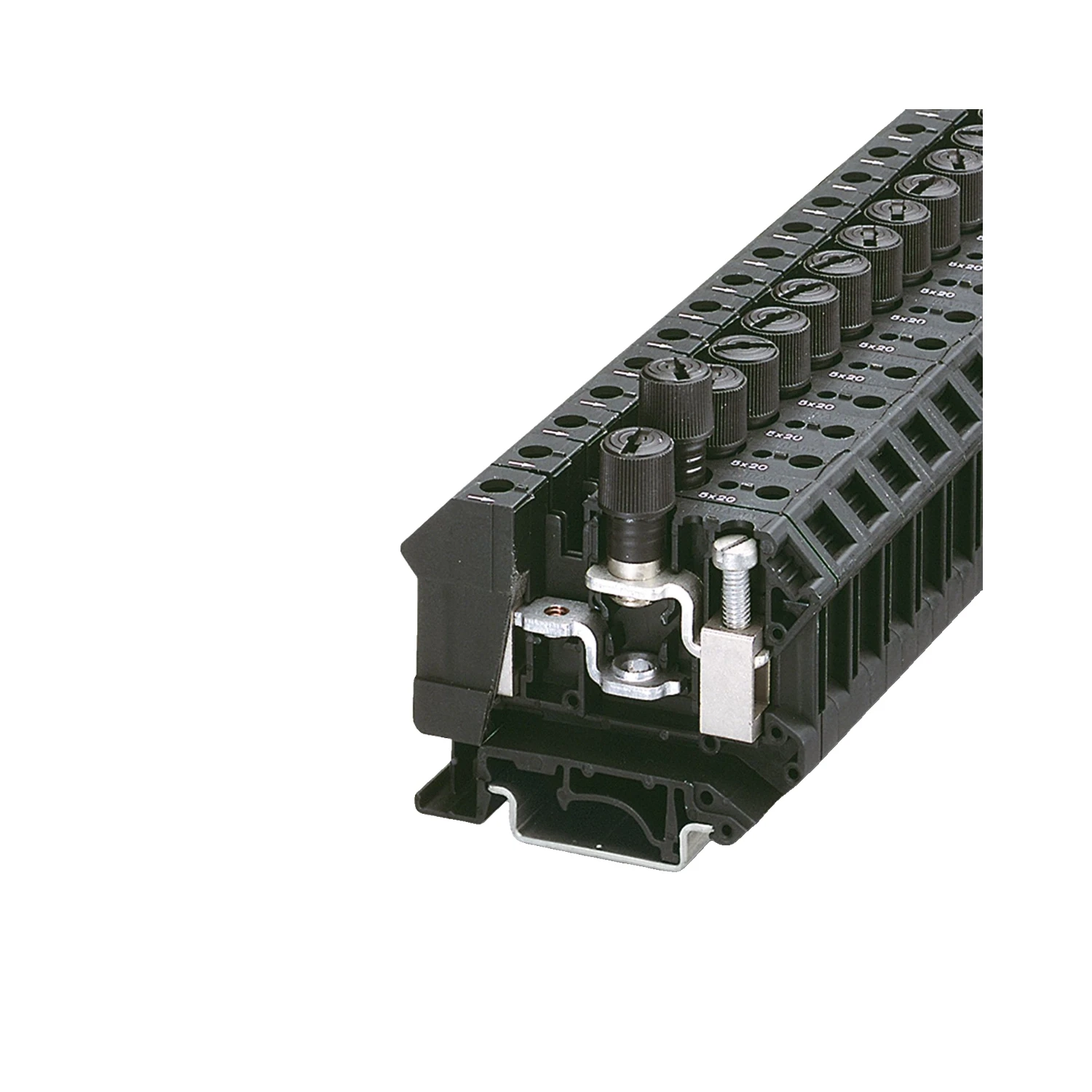

Phoenix Contact UK 10-DREHSI 5x20 Fuse Modular Terminal Block 500V Black
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3005109
GTIN
—
Stock status:
Out of stock
priced individually
More arriving soon
Net price: £7.55
Gross price
£9.06
Fuse modular terminal block from Phoenix Contact for G/5x20 glass or ceramic fuses. Single-position, screw connection, mounts on NS 35⁄7.5, NS 35⁄15, or NS 32 DIN rail.
Rated 10 A / 500 V as a fuse terminal block, or 800 V when used as a disconnect terminal. M4 screw, tighten to 1.5–1.8 Nm, strip 11 mm. Black (RAL 9005).
Note: Fuse-link not supplied as standard.
- Conductor range: 0.5–16 mm² rigid or flexible; 0.5–10 mm² with ferrule
- AWG range: 20–6
- Rated surge voltage: 4 kV, Overvoltage Category III
- UL 94 V-0 insulator
- Operating temp: -60 °C to +110 °C
