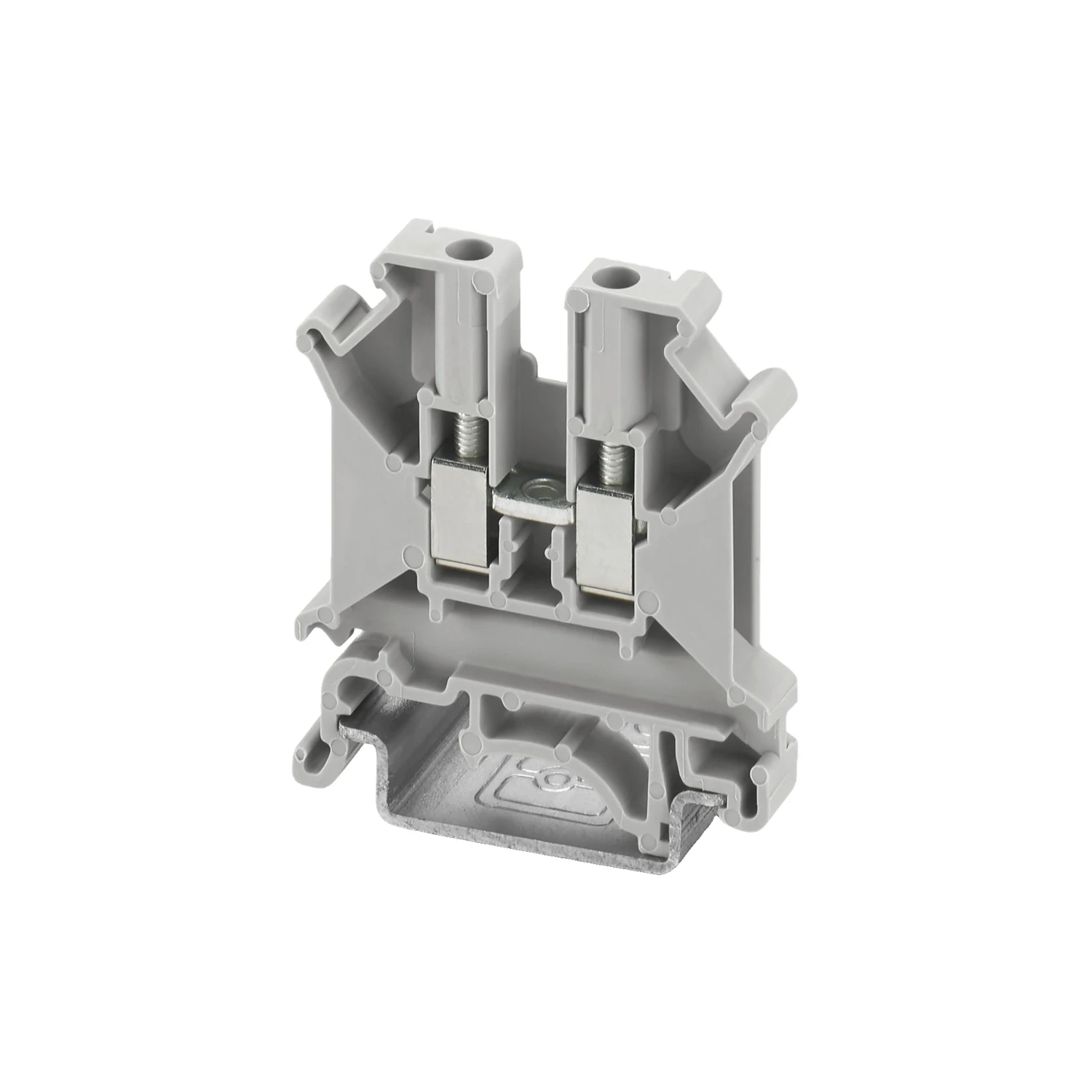

Phoenix Contact UK 5N 4mm Grey Feed-through Terminal Block 800V 32A

Photo is representative

Phoenix Contact UK 5N 4mm Grey Feed-through Terminal Block 800V 32A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3004362
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £0.59

Gross price

£0.71

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Phoenix Contact UK 5N feed-through terminal block with M3 screw connection. Single-row, single-potential, 2-connection design for DIN rail panel builds.

Rated 800V nominal and 32A nominal current, with a maximum load current of 41A at 6mm². Accepts solid conductors from 0.2–6mm² and flexible from 0.2–4mm². Mounts on NS 35⁄7.5, NS 35⁄15, and NS 32 rail. PA insulator with UL 94 V-0 flammability rating.

  • Tightening torque: 0.6–0.8 Nm
  • Stripping length: 8mm
  • Rated surge voltage: 8kV, overvoltage category III
  • AWG range: 24–10 (rigid), 24–12 (flexible)
  • Operating temperature: -60°C to 110°C
Specifications

Nominal Voltage

800 V

Nominal Current

32 A

Maximum Load Current

41 A (with 6 mm² conductor)

Nominal Cross-Section

4 mm²

Conductor Cross-Section (rigid)

0.2 mm² – 6 mm²

Conductor Cross-Section (flexible)

0.2 mm² – 4 mm²

AWG Range (rigid)

24 – 10

AWG Range (flexible)

24 – 12

Connection Method

Screw connection

Screw Thread

M3

Tightening Torque

0.6 – 0.8 Nm

Stripping Length

8 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Degree of Pollution

3

Connection Standard

IEC 60947-7-1

Mounting Type

NS 35/7.5, NS 35/15, NS 32

Width

6.2 mm

Height

42.5 mm

Depth on NS 35/7.5

47 mm

Depth on NS 35/15

54.5 mm

Depth on NS 32

52 mm

Colour

Gray (RAL 7042)

Insulating Material

PA

Flammability Rating

UL 94 V-0

Operating Temperature

-60 °C – 110 °C

Storage/Transport Temperature

-25 °C – 60 °C

Number of Connections

2

Potentials

1

Number of Rows

1

Documents

datasheet Phoenix Contact 3004362 Datasheet
