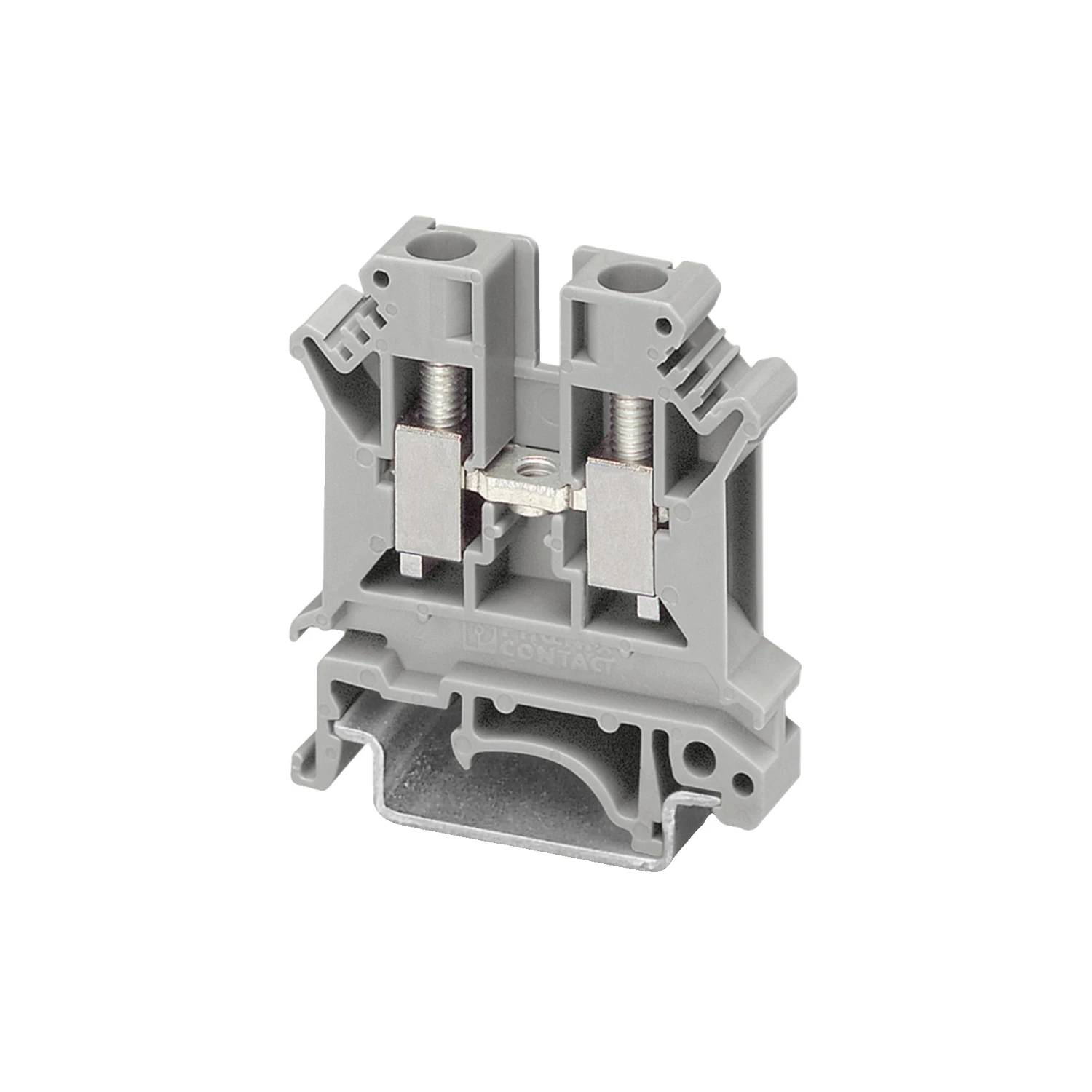

Phoenix Contact UK 6N 6mm Feed-Through Screw Terminal Block Grey
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3004524
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £1.05
Gross price
£1.26
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Feed-through terminal block from Phoenix Contact’s UK series. Screw connection, single row, single potential. Designed for DIN rail mounting on NS 32, NS 35⁄7.5 or NS 35⁄15 rail.
Rated at 800 V and 41 A nominal, with a max load current of 57 A at 10 mm². M4 screw with a tightening torque of 1.5–1.8 Nm and 10 mm stripping length.
- Conductor range (rigid): 0.2–10 mm² (24–8 AWG)
- Conductor range (flexible): 0.2–6 mm²
- Two conductors same cross-section (rigid): 0.2–2.5 mm²
- TWIN ferrule with plastic sleeve: 0.5–4 mm²
- Operating temp: -60 °C to +110 °C
- PA insulator, UL 94 V-0 rated, overvoltage category III
