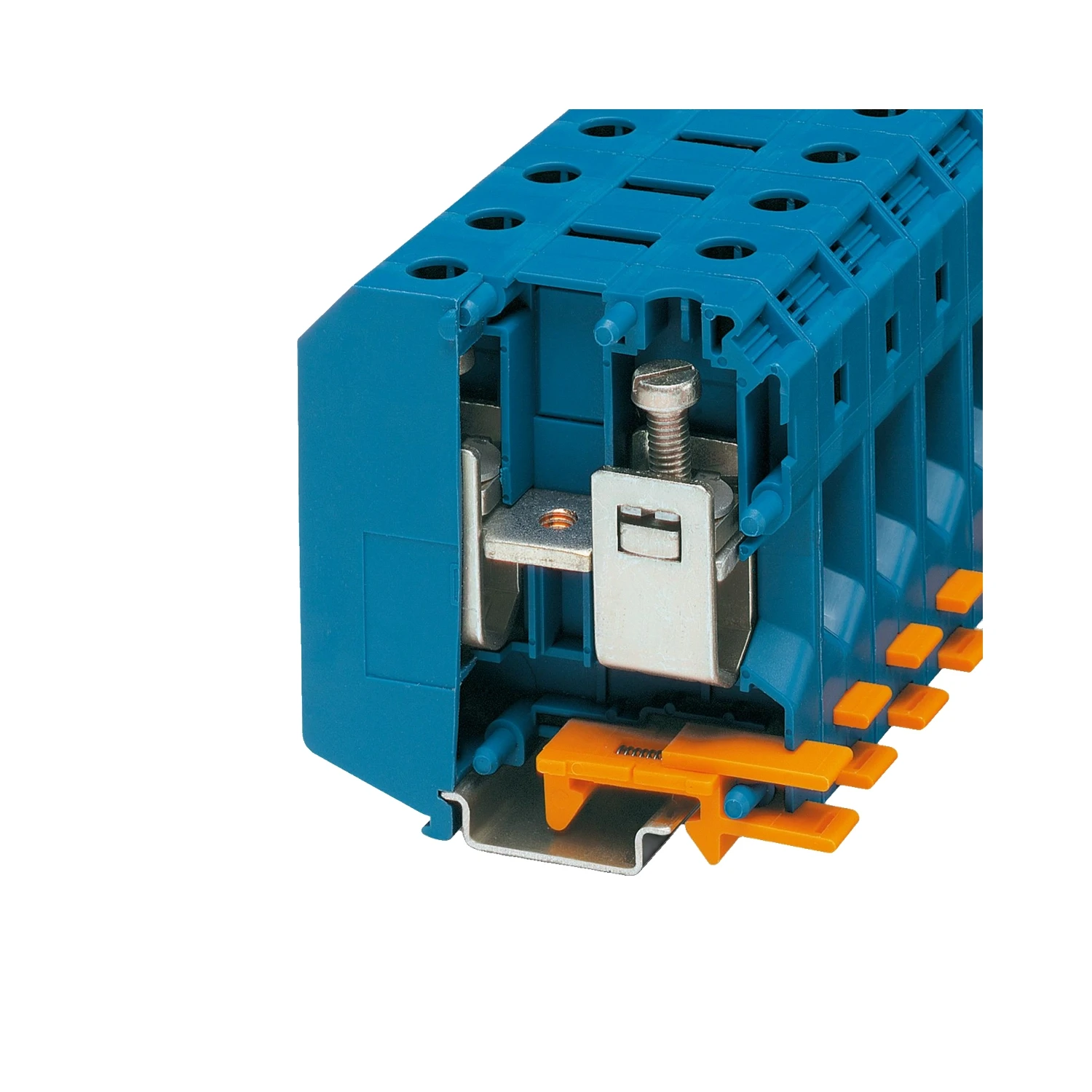

Phoenix Contact UKH 50 BU 150A Screw Terminal Block 1000V Blue High Current

Photo is representative

Phoenix Contact UKH 50 BU 150A Screw Terminal Block 1000V Blue High Current

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3009105
GTIN —
Stock status: In stock

priced individually

Net price: £11.60

Gross price

£13.92

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Feed-through screw terminal for high-current applications. The UKH 50 BU handles 50mm² nominal cross-section at 150A/1000V — suited for heavy power distribution in industrial panels and rail vehicle systems.

ATEX/IECEx certified (II 2 GD Ex eb IIC Gb). Mounts on NS 35⁄7.5, NS 35⁄15, and NS 32 DIN rail.

  • M6 screw, 6–8 Nm tightening torque
  • Rigid conductors: 16–70mm²; flexible: 25–70mm²
  • Stripping length: 24mm
  • Rated surge voltage: 8kV, Overvoltage Category III
  • Operating temp: -60°C to +110°C
  • UL 94 V-0, PA insulator, blue (RAL 5015)
Specifications

Nominal Voltage

1000 V

Nominal Current

150 A

Nominal Cross Section

50 mm²

Rated Cross Section AWG

1/0

Conductor Cross-Section Rigid

16 mm² ... 70 mm²

Conductor Cross-Section Flexible

25 mm² ... 70 mm²

Connection Method

Screw connection

Screw Thread

M6

Tightening Torque

6 ... 8 Nm

Stripping Length

24 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Short-Time Withstand Current

6 kA (50 mm²)

Contact Resistance

0.1 mΩ

Mounting Type

NS 35/7.5; NS 35/15; NS 32; NS 35/15-2.3

Width

20 mm

Height

70.5 mm

Depth

75.8 mm

Ambient Temperature (Operation)

-60 °C ... 110 °C

Insulating Material

PA

Flammability Rating

UL 94 V-0

Connection Standard

IEC 60947-7-1

ATEX/IECEx Identification

II 2 GD Ex eb IIC Gb

Colour

Blue (RAL 5015)

Documents

datasheet Phoenix Contact 3009105 Datasheet
