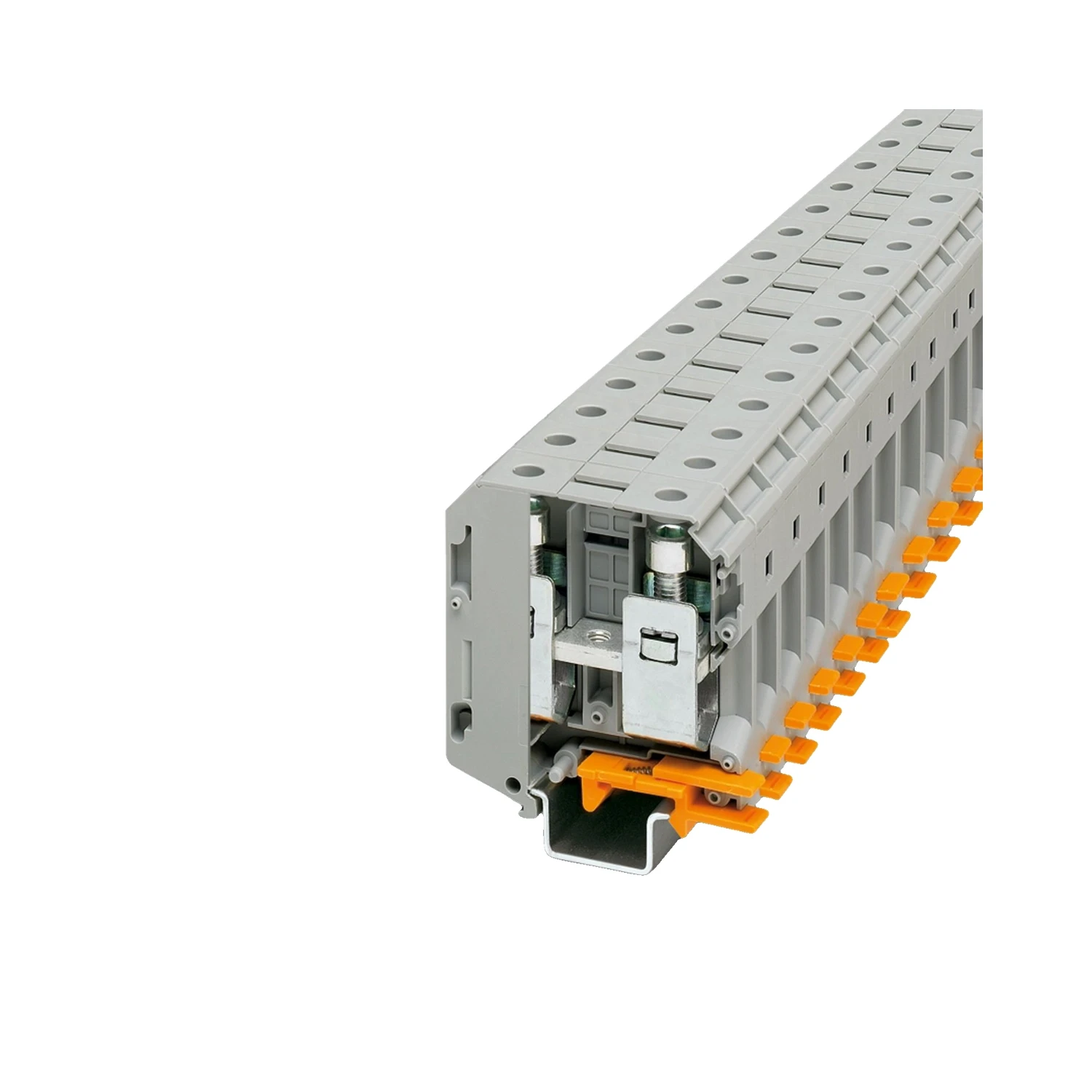

Phoenix Contact UKH 70 High Current Terminal Block 192A Screw Connection Grey

Photo is representative

Phoenix Contact UKH 70 High Current Terminal Block 192A Screw Connection Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3213140
GTIN —
Stock status: In stock

priced individually

Net price: £19.81

Gross price

£23.78

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Phoenix Contact UKH 70 is a high-current screw terminal rated for heavy panel builds, machine building, and railway applications. Fits NS 32, NS 35⁄7.5, and NS 35⁄15 DIN rail. ATEX/IECEx rated II 2 GD Ex eb IIC Gb and compliant with IEC 60947-7-1.

  • 192A nominal current, 1000V nominal voltage
  • Screw connection, M8, 8–10 Nm torque
  • Rigid conductor: 16–95 mm² / Flexible: 25–70 mm²
  • Stripping length: 24 mm
  • Operating temp: -60°C to +110°C
Specifications

Nominal Voltage

1000 V

Nominal Current

192 A

Rated Cross-Section

70 mm²

Connection Method

Screw connection

Screw Thread

M8

Tightening Torque

8 ... 10 Nm

Conductor Cross-Section Rigid

16 mm² ... 95 mm²

Conductor Cross-Section Flexible

25 mm² ... 70 mm²

Cross-Section AWG

4 ... 3/0

Stripping Length

24 mm

Rated Surge Voltage

8 kV

Short-Time Withstand Current

8.4 kA (70 mm²)

Mounting Type

NS 32, NS 35/7.5, NS 35/15, NS 35/15-2.3

Width

20.3 mm

Height

70.5 mm

Depth

78.3 mm

Depth on NS 35/7.5

80 mm

Depth on NS 35/15

87.5 mm

Depth on NS 32

85.4 mm

Ambient Temperature (Operation)

-60 °C ... 110 °C

Ambient Temperature (Assembly)

-5 °C ... 70 °C

Flammability Rating

UL 94 V-0

Overvoltage Category

III

Degree of Pollution

3

Contact Resistance

0.08 mΩ

Insulator Material

PA (Polyamide)

Colour

Grey (RAL 7042)

ATEX/IECEx Classification

II 2 GD Ex eb IIC Gb

Standard Compliance

IEC 60947-7-1
