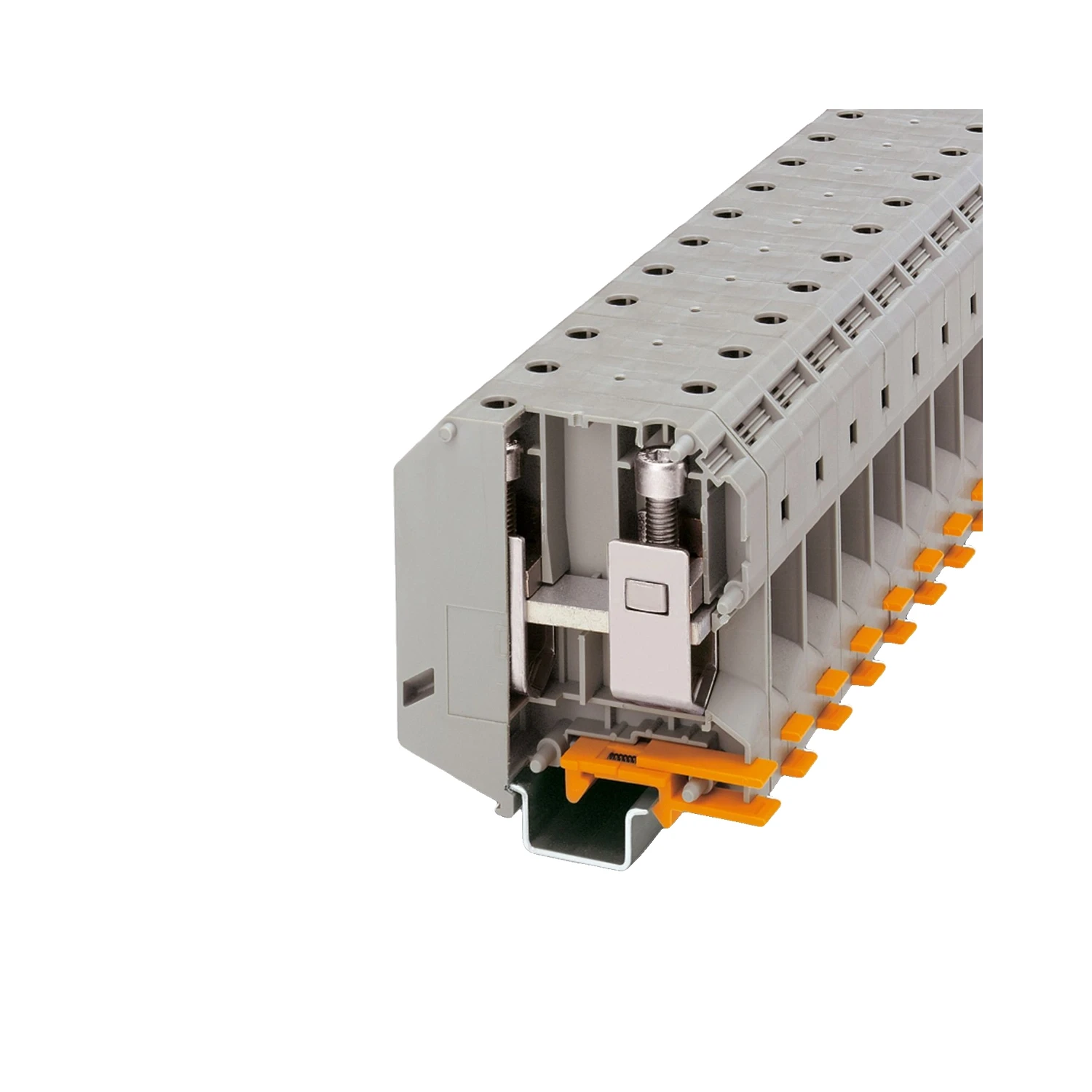

Phoenix Contact UKH 95 232A 1000V High Current Screw Terminal Block Grey

Photo is representative

Phoenix Contact UKH 95 232A 1000V High Current Screw Terminal Block Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3010013
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £22.20

Gross price

£26.64

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

High-current feed-through terminal from Phoenix Contact’s UKH series. Designed for screw connection of large-section cables up to 95mm² in power distribution panels and heavy-duty control gear.

ATEX certified (II 2 GD Ex eb IIC Gb) — suits hazardous area installations. Mounts on NS 35⁄15 or NS 32 DIN rail.

  • Nominal current: 232A at 1000V
  • Conductor range: 25–95mm² rigid, 35–95mm² flexible (2–3/0 AWG)
  • M8 screw, tighten to 15–20 Nm
  • Stripping length: 33mm
  • Operating temp: -60°C to +110°C
Specifications

Nominal Voltage

1000 V

Nominal Current

232 A

Rated Cross Section

95 mm²

Conductor Cross Section (Rigid)

25 mm² ... 95 mm²

Conductor Cross Section (Flexible)

35 mm² ... 95 mm²

Cross Section AWG

2 ... 3/0

Connection Method

Screw connection

Screw Thread

M8

Tightening Torque

15 ... 20 Nm

Stripping Length

33 mm

Mounting Type

NS 35/15, NS 32

Dimensions (W x H x D)

25 x 83 x 90 mm

Operating Temperature

-60 °C ... 110 °C

Flammability Rating

UL 94 V-0

Overvoltage Category

III

Rated Surge Voltage

8 kV

Short-time Withstand Current

11.4 kA (95 mm²)

Insulating Material

PA

Colour

Grey (RAL 7042)

Connection Standard

IEC 60947-7-1

ATEX Classification

II 2 GD Ex eb IIC Gb

Documents

datasheet Phoenix Contact 3010013 Datasheet
