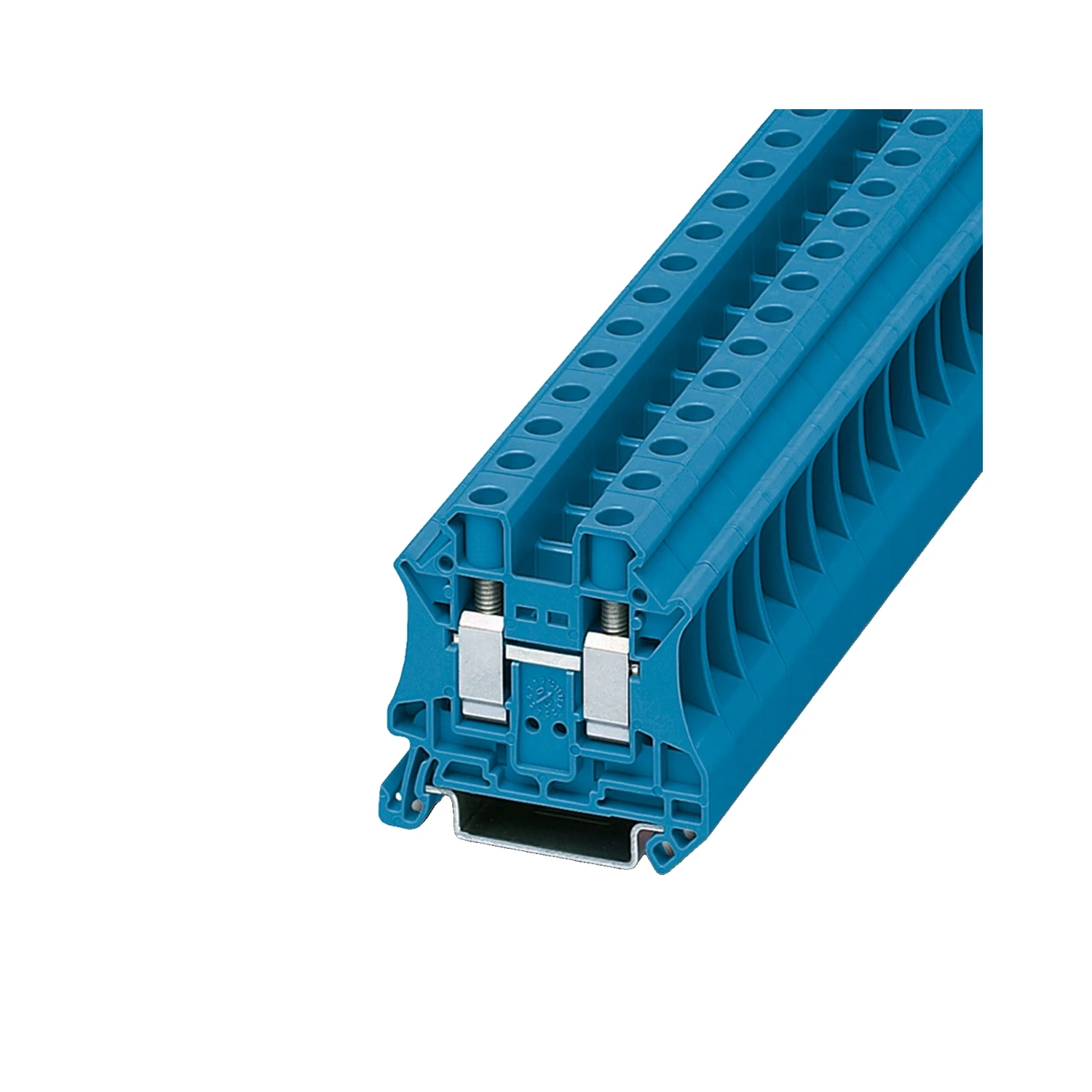

Phoenix Contact UT 10 BU 10mm² Screw Feed-Through Terminal Block Blue 1000V

Photo is representative

Phoenix Contact UT 10 BU 10mm² Screw Feed-Through Terminal Block Blue 1000V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3044188
GTIN —
Stock status: In stock

priced individually

Net price: £1.91

Gross price

£2.29

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Phoenix Contact UT 10 BU is a single-row, single-potential feed-through terminal block with M4 screw connection. Fits NS 35⁄7.5 and NS 35⁄15 DIN rail. Rated for railway, machine building, plant engineering, and process industry use. ATEX/IECEx certified: II 2 GD Ex eb IIC Gb.

  • Nominal current: 57 A / max load: 76 A (with 16 mm² conductor)
  • Conductor range (single): 0.5–16 mm² rigid or flexible
  • Two conductors same cross-section: 0.5–4 mm² (rigid/flexible)
  • Tightening torque: 1.5–1.8 Nm, stripping length: 10 mm
  • Operating temp: -60 °C to +110 °C
Specifications

Nominal Voltage

1000 V

Nominal Current

57 A

Max Load Current

76 A (with 16 mm² conductor)

Rated Surge Voltage

8 kV

Connection Method

Screw connection

Screw Thread

M4

Tightening Torque

1.5 ... 1.8 Nm

Nominal Cross Section

10 mm²

Conductor Cross-Section (Rigid/Flexible)

0.5 ... 16 mm²

2 Conductors Same Cross-Section (Rigid/Flexible)

0.5 ... 4 mm²

Cross Section AWG

20 ... 6

Stripping Length

10 mm

Mounting Type

NS 35/7.5, NS 35/15

Poles / Rows

1 row, 1 potential, 2 connections

Overvoltage Category

III

Degree of Pollution

3

Flammability Rating

UL 94 V0

Insulating Material

PA

Colour

Blue (RAL 5015)

Width

10.2 mm

Height

47.7 mm

Depth (NS 35/7.5)

47.5 mm

Depth (NS 35/15)

55 mm

Operating Temperature

-60 °C ... 110 °C

Connection Standard

IEC 60947-7-1

ATEX/IECEx

II 2 GD Ex eb IIC Gb

Documents

datasheet Phoenix Contact 3044188 Datasheet
