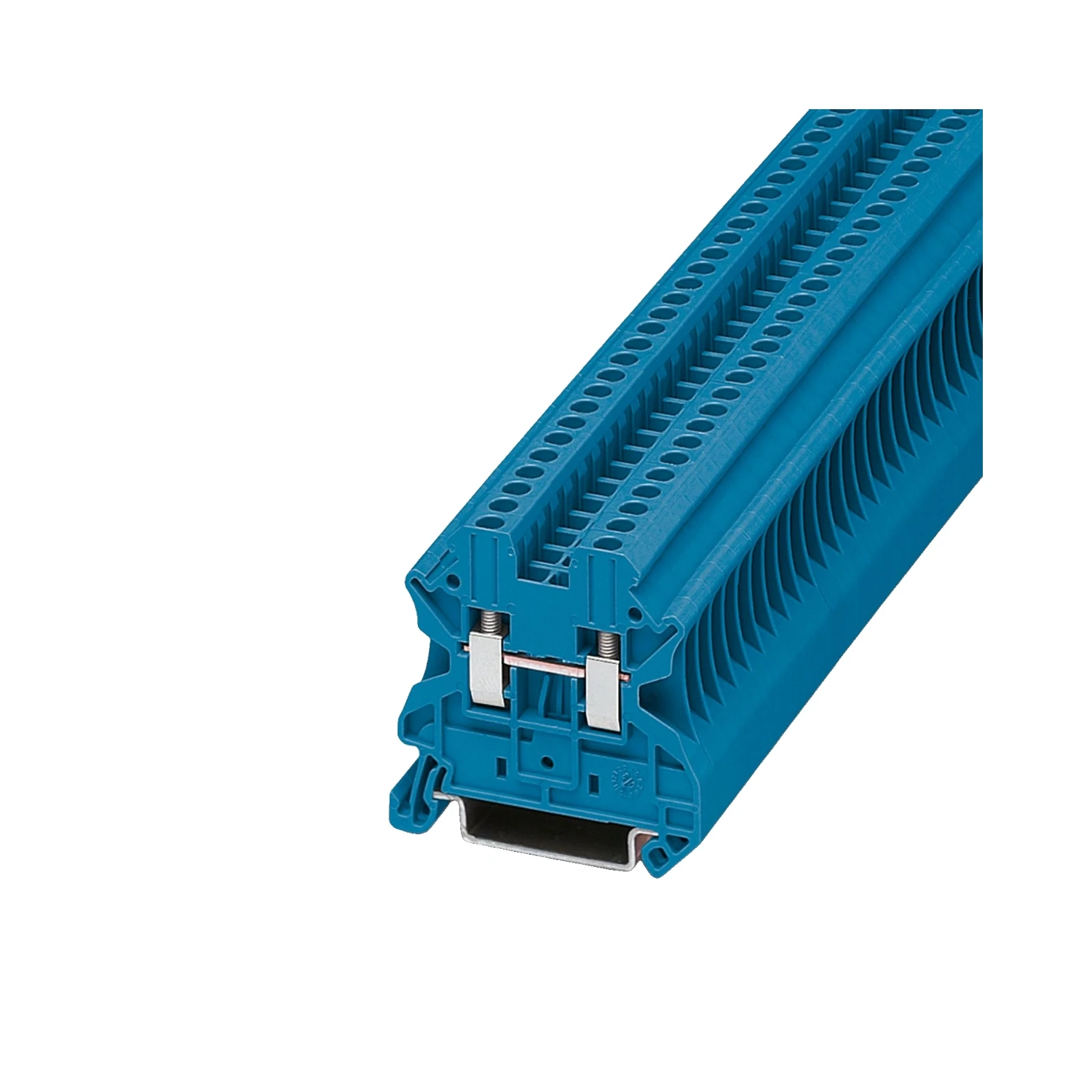

Phoenix Contact UT 2.5 BU 2.5mm Feed-Through Terminal Block 1000V Blue

Photo is representative

Phoenix Contact UT 2.5 BU 2.5mm Feed-Through Terminal Block 1000V Blue

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3044089
GTIN —
Stock status: In stock

priced individually

Net price: £0.67

Gross price

£0.80

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Phoenix Contact UT 2.5 BU is a single-row, single-potential feed-through terminal block for control panels and distribution boards. Screw connection with M3 thread. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail.

Blue (RAL 5015) — suited to neutral conductor identification in panel builds.

  • Nominal: 2.5mm² / 24A / 1000V
  • Conductor range: 0.14–4mm² rigid or flexible (26–12 AWG)
  • Accepts twin conductors up to 1.5mm² same cross-section
  • Tightening torque: 0.5–0.6 Nm, stripping length: 9mm
  • UL 94 V-0 insulator, operating temp: -60°C to +110°C
Specifications

Nominal Voltage

1000 V

Nominal Current

24 A

Maximum Load Current

32 A (with 4 mm² conductor)

Rated Surge Voltage

8 kV

Nominal Cross Section

2.5 mm²

Conductor Cross Section (rigid)

0.14 mm² ... 4 mm² (26 ... 12 AWG)

Conductor Cross Section (flexible)

0.14 mm² ... 4 mm² (26 ... 12 AWG)

Connection Method

Screw connection

Screw Thread

M3

Tightening Torque

0.5 ... 0.6 Nm

Stripping Length

9 mm

Mounting Type

NS 35/7.5, NS 35/15

Poles / Connections

2 connections, 1 row, 1 potential

Width

5.2 mm

Height

47.7 mm

Depth (on NS 35/7.5)

47.5 mm

Depth (on NS 35/15)

55 mm

Insulating Material

PA (Polyamide)

Flammability Rating

UL 94 V-0

Overvoltage Category

III

Degree of Pollution

3

Operating Temperature

-60 °C ... 110 °C

Colour

Blue (RAL 5015)

Standard

IEC 60947-7-1

Documents

datasheet Phoenix Contact 3044089 Datasheet
