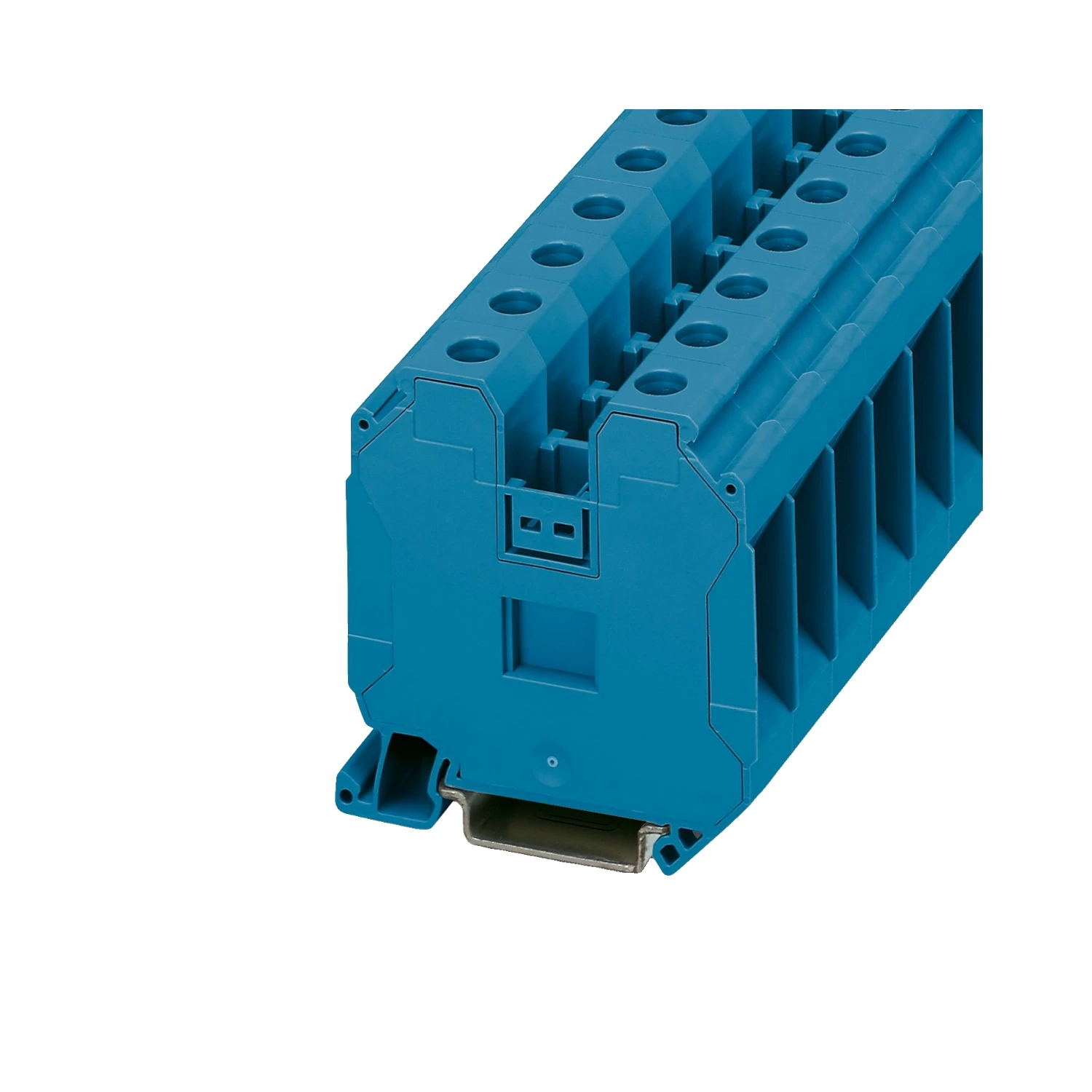

Phoenix Contact UT 35 BU 35mm2 Screw Feed-Through Terminal Block 1000V Blue
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3044238
GTIN
—
Stock status:
In stock
priced individually
Net price: £8.21
Gross price
£9.85
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Single-row, single-potential feed-through terminal block from Phoenix Contact’s UT series. Screw connection via M6 thread — takes two conductors per level. Rated 125 A nominal / 150 A maximum load at 1000 V. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail.
Suited to railway, machine building, plant engineering, and process industry. ATEX/IECEx rated (II 2 GD Ex eb IIC Gb) and passes DIN EN 45545-2 fire protection for rail vehicles (HL 1–HL 3, R22–R26).
- Conductor range (single, rigid or flexible): 1.5–50 mm²
- Two conductors same cross-section (rigid): 1.5–16 mm²; (flexible): 1.5–10 mm²
- Stripping length: 18 mm | Tightening torque: 3.2–3.7 Nm
- Operating temp: -60 °C to +110 °C
- Flammability: UL 94 V-0 | Overvoltage category: III
