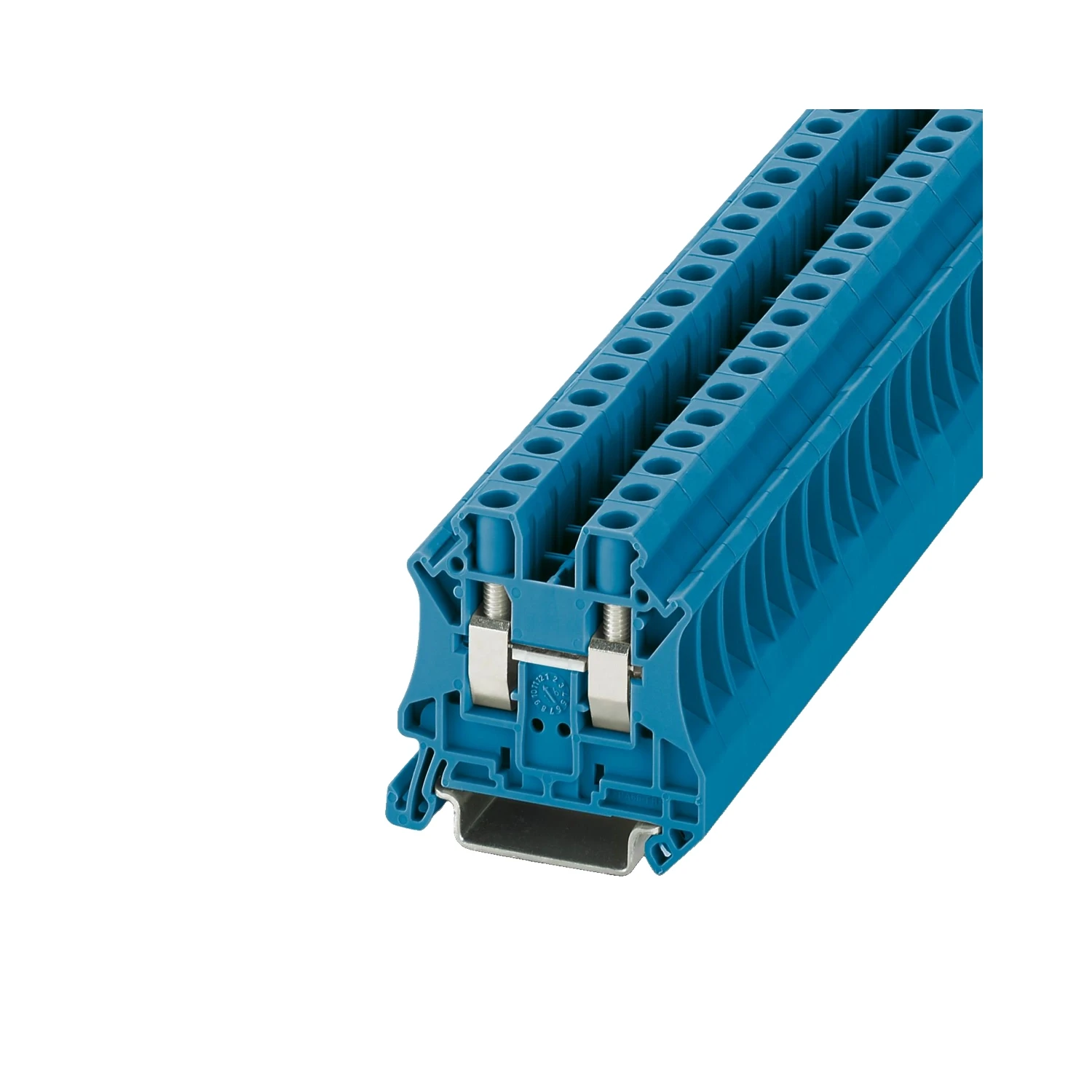

Phoenix Contact UT 6 BU 6mm² Screw Feed-through Terminal Block Blue 1000V
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3044144
GTIN
—
Stock status:
In stock
priced individually
Net price: £1.12
Gross price
£1.34
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Phoenix Contact UT 6 BU is a single-row, single-potential feed-through terminal block with M4 screw connection. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Rated for use in machine building, plant engineering, process industry, and railway applications.
Blue (RAL 5015) insulator, PA housing with UL94 V-0 flammability rating. ATEX/IECEx certified for use in Zone 2⁄22 explosive atmospheres. Accepts rigid and flexible conductors up to 10mm² and twin ferrules up to 4mm².
- Nominal voltage: 1000 V
- Nominal current: 41 A / max load: 57 A at 10mm²
- Conductor range: 0.2–10mm² rigid or flexible
- Stripping length: 10 mm, torque: 1.5–1.8 Nm
- Operating temp: -60°C to +110°C
