3044636 - Phoenix Double-Level Terminal Block UTTB 2 5 3044636

Photo is representative

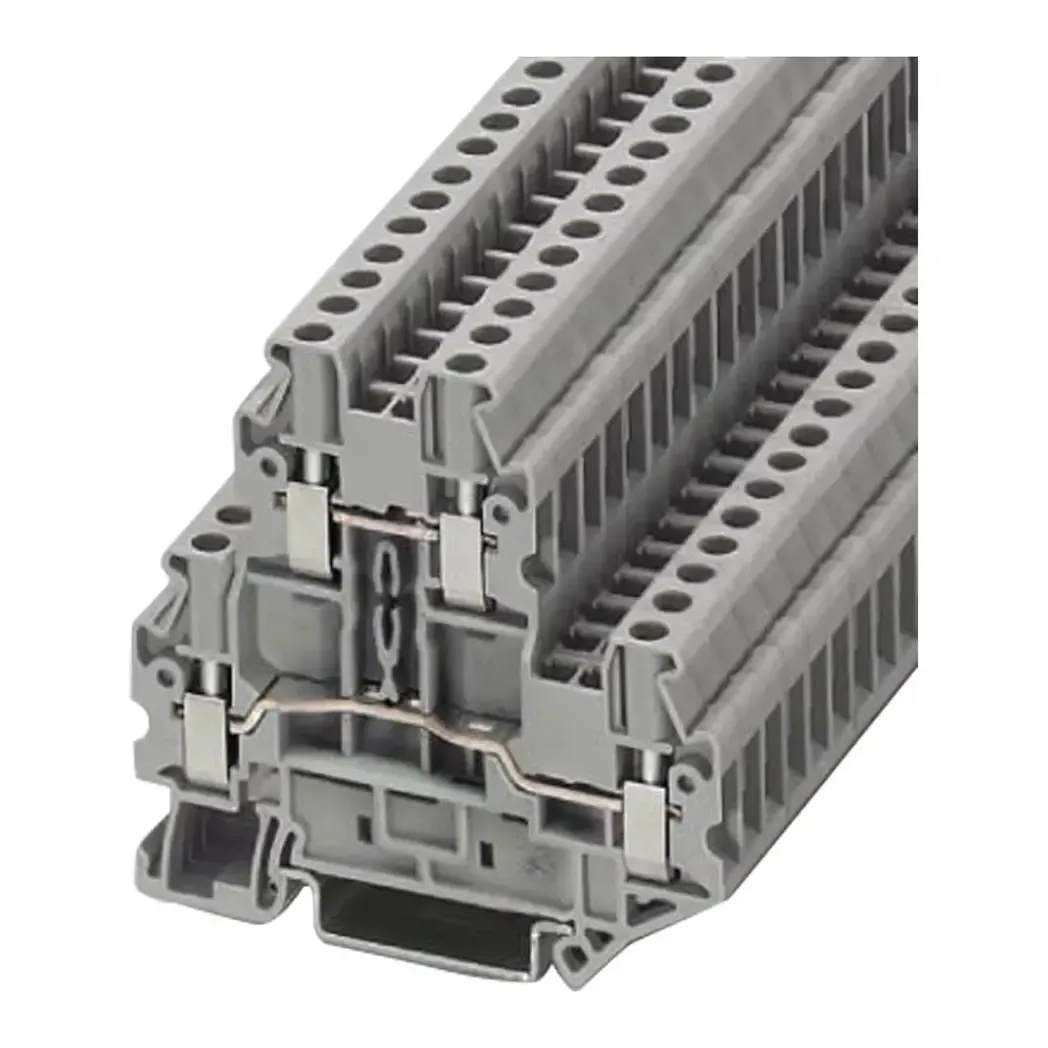

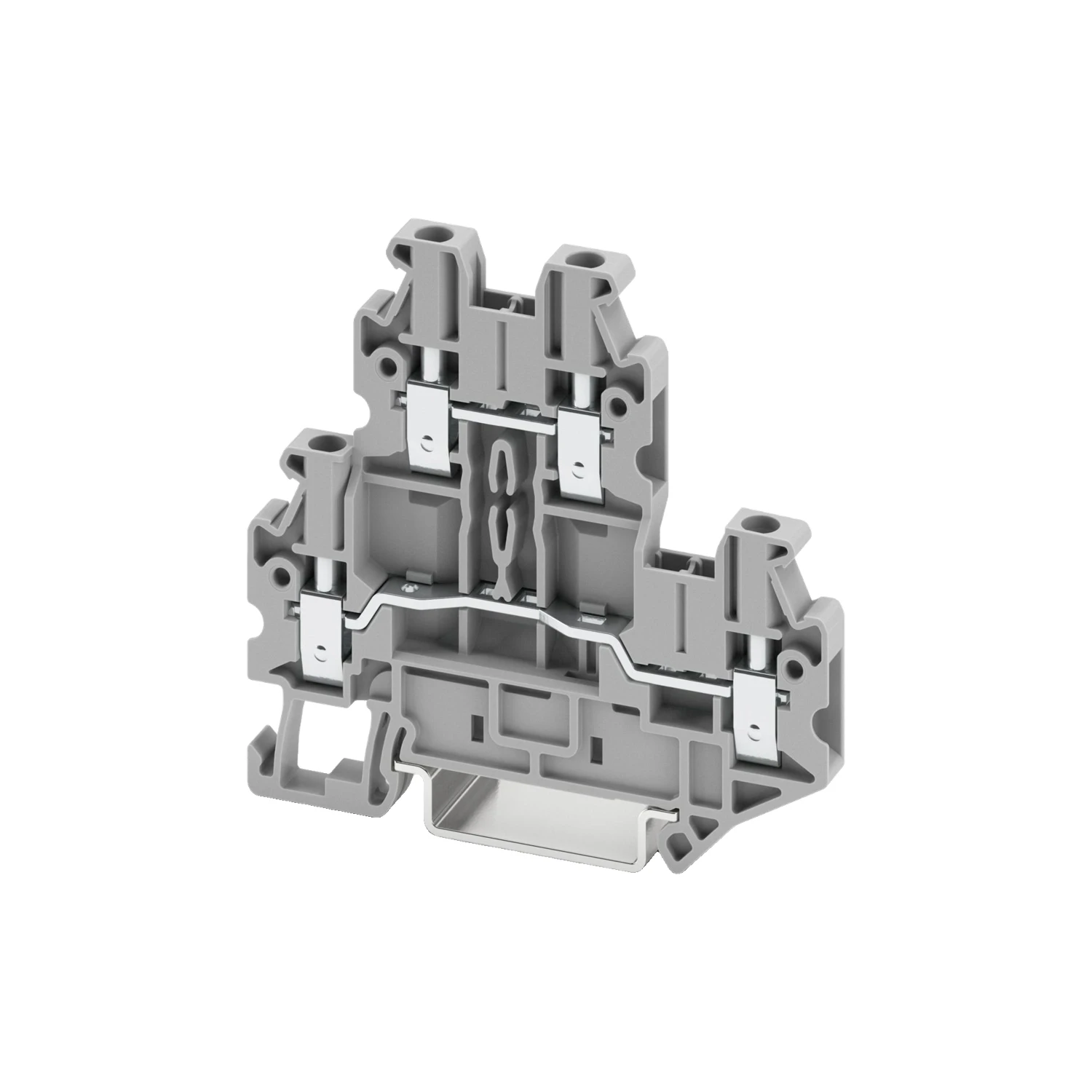

Phoenix Double-Level Terminal Block UTTB 2 5 3044636

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3044636
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £1.49

Gross price

£1.78

Double-level Terminal Block UTTB 2 5 3044636 with 2 levels, 4 connections, 2.5 mm cross-section, in Grey color. Insulating material: PA. Flammability rating: V0.

Specifications

Colour

Grey

OpenSidePanel

Yes

NumberOfLevels

2

BendingTestTurns

135

FingerProtection

Guaranteed

NominalCurrentIN

24 A

NominalVoltageUN

500 V

DegreeOfPollution

3

RatedSurgeVoltage

6 kV

TensileTestResult

Test passed

TightFitOnCarrier

NS 35 Setpoint: 1 N

InsulatingMaterial

PA

MaximumLoadCurrent

28 A

NominalCrossSection

2.5 mm

NumberOfConnections

4

OvervoltageCategory

III

TractiveForceSetpoint

10 N, 50 N, 60 N

FlammabilityRatingUL94

V0

BackOfTheHandProtection

Guaranteed

InsulatingMaterialGroup

I

RequirementsVoltageDrop

3.2 mV

ResultOfVoltageDropTest

Test passed

BendingTestRotationSpeed

10 rpm

ResultOfSurgeVoltageTest

Test passed

ResultOfTightFitOnSupport

Test passed

ResultOfFlexionPullOutTest

Test passed

ResultOfTemperatureRiseTest

Test passed

ConductorCrossSectionTensileTest

0.14 mm, 2.5 mm, 4 mm

ShockProtectionTestSpecification

DIN EN 50274 (VDE 0660-514):2002-11

BendingTestConductorCrossSectionWeight

0.14 mm / 0.2 kg, 2.5 mm / 0.7 kg, 4 mm / 0.9 kg

PowerFrequencyWithstandVoltageSetpoint

1.89 kV

ResultOfPowerFrequencyWithstandVoltageTest

Test passed

CheckingMechanicalStabilityOfTerminalPoints

Test passed

Phoenix Contact
