Photo is representative

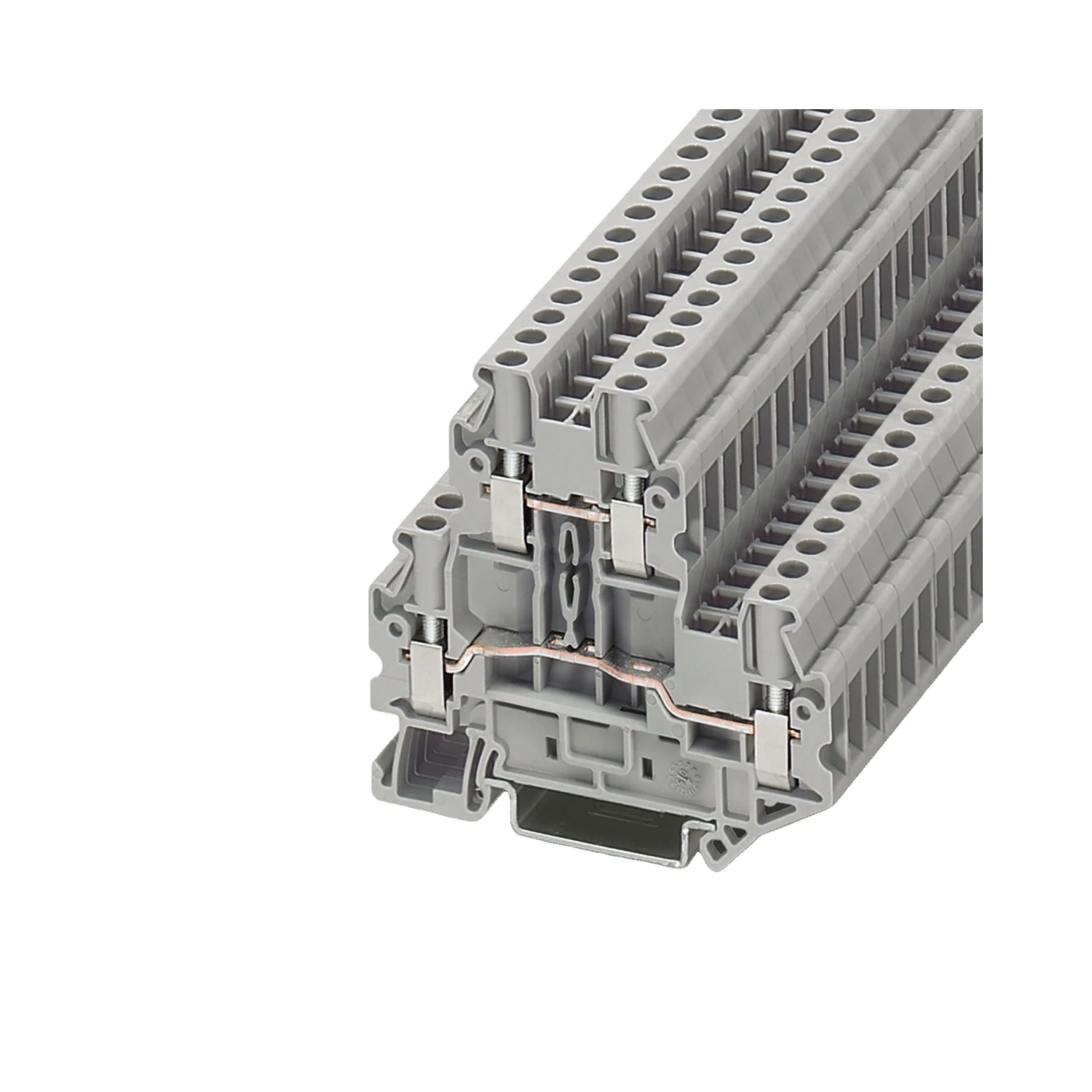

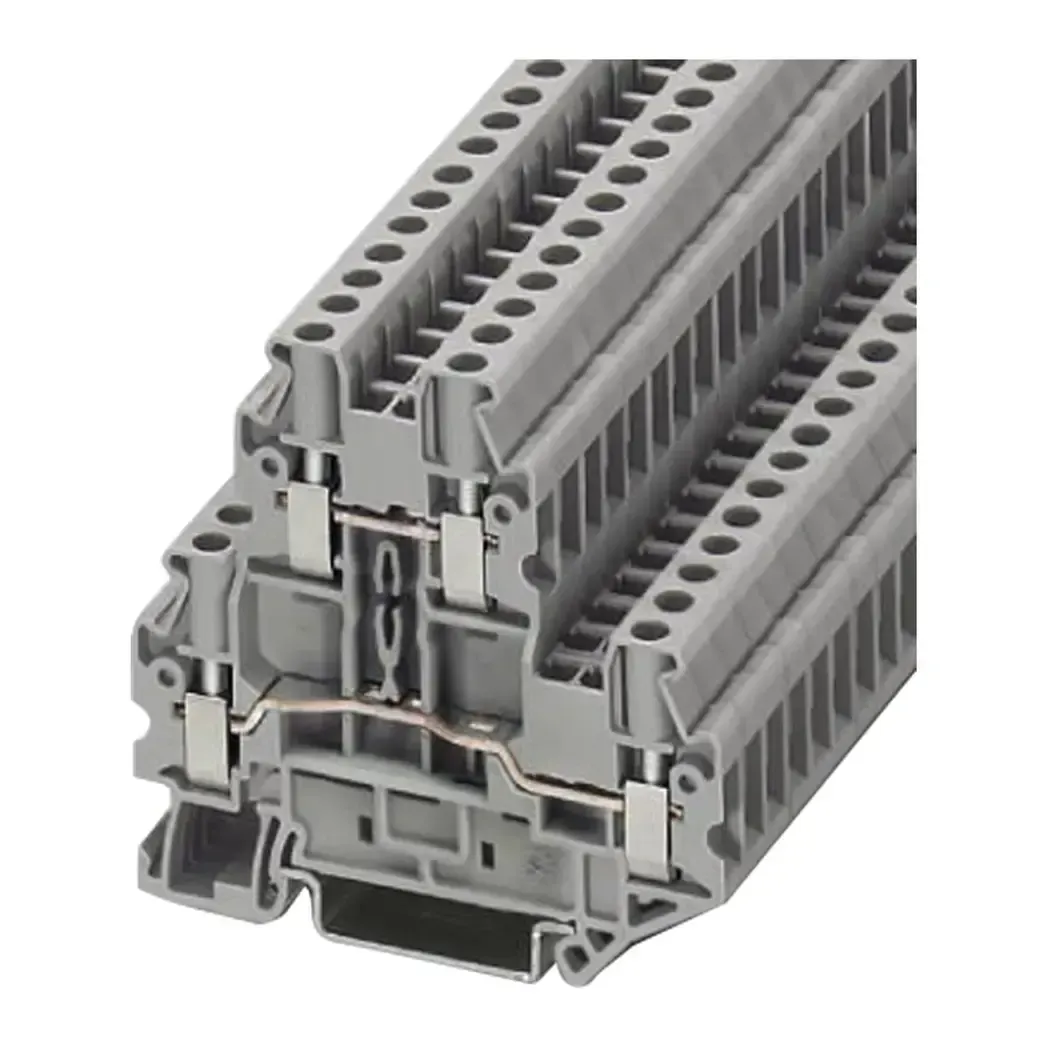

Phoenix Contact UTTB 4 Double-Level Screw Terminal Block 800V 30A Grey
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3044814
GTIN
—
Stock status:
In stock
priced individually
Net price: £2.53
Gross price
£3.04
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Double-level feed-through terminal from Phoenix Contact’s UT family. Two independent potentials in a single 6.2 mm wide block — connects two conductors simultaneously per level. Fits NS 35⁄7.5 and NS 35⁄15 DIN rail. Rated for railway, machine building, and process industry panels.
ATEX/IECEx rated (II 2 GD Ex eb IIC Gb) and NFPA 130 compliant — suits rolling stock and hazardous area panel builds.
- 800V nominal, 30A nominal (36A max with 6mm²)
- 4 connections total, 2 per level, 2 potentials
- Screw connection, M3, 0.6–0.8 Nm, 9mm strip length
- Conductor range: 0.14–6mm² rigid/flexible (single); 0.14–1.5mm² same cross-section pair
- Operating temp: -60°C to 110°C; UL94 V-0
