3212123 - Phoenix Feed-Through Terminal Block - PT 10 BU - 3212123

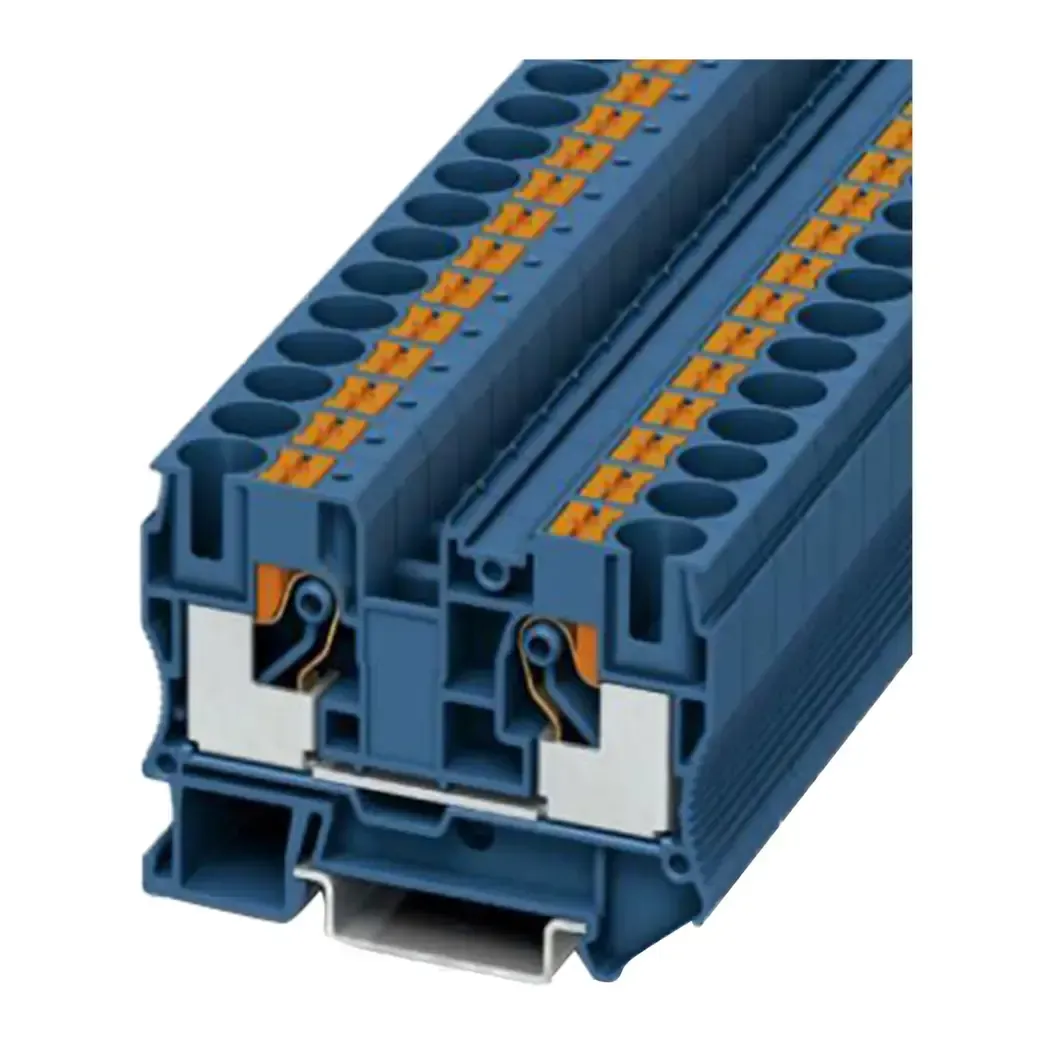

Photo is representative

Phoenix Feed-Through Terminal Block - PT 10 BU - 3212123

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3212123
GTIN —
Stock status: In stock

priced individually

Net price: £2.08

Gross price

£2.50

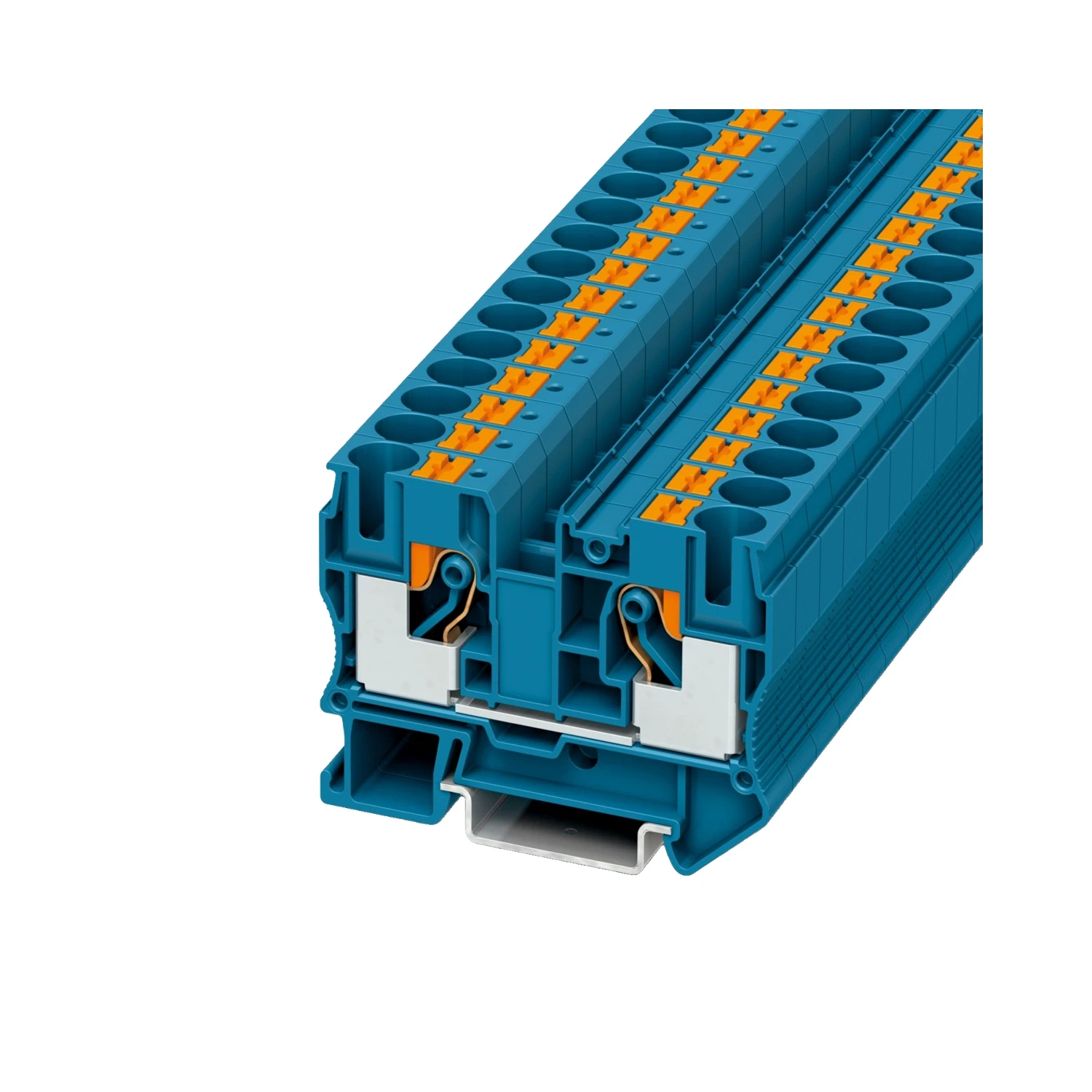

The Phoenix Feed-through terminal block PT 10 BU - 3212123 features a single level design with 2 connections, a nominal cross section of 10 mm, blue color, and PA insulating material. It is rated V0 for flammability according to UL 94. Shock protection, finger protection, and surge voltage tests have all passed, ensuring reliable performance.

Specifications

Colour

Blue

Potentials

1

Open Side Panel

Yes

Number Of Levels

1

Finger Protection

Guaranteed

Nominal Current IN

57 A

Nominal Voltage UN

1000 V

Degree Of Pollution

3

Insulating Material

PA

Rated Surge Voltage

8 kV

Maximum Load Current

70 A (with a 16 mm conductor cross section rigid)

Overvoltage Category

III

Nominal Cross Section

10 mm

Number Of Connections

2

Insulating Material Group

I

Back Of The Hand Protection

Guaranteed

Result Of Surge Voltage Test

Test Passed

Shock Protection Test Specification

DIN EN 50274 (VDE 0660-514):2002-11

Flammability Rating According To UL 94

V0

Power Frequency Withstand Voltage Setpoint

2.2 kV

Maximum Power Dissipation For Nominal Condition

1.82 W

Result Of Power-Frequency Withstand Voltage Test

Test Passed

Phoenix Contact
