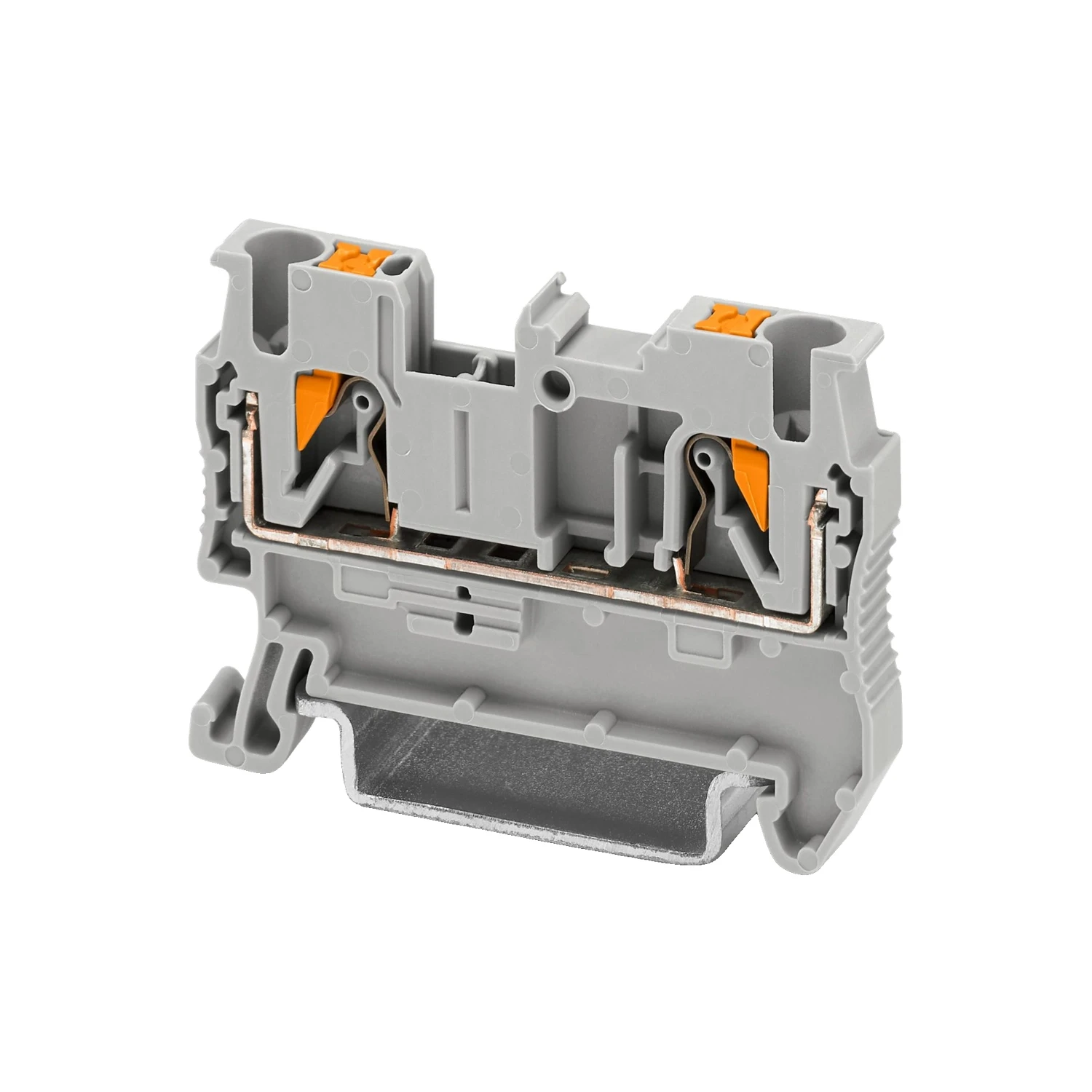

Phoenix Contact PT 2.5 Push-In Feed-Through Terminal Block 800V 24A Grey
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3209510
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £0.68
Gross price
£0.82
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

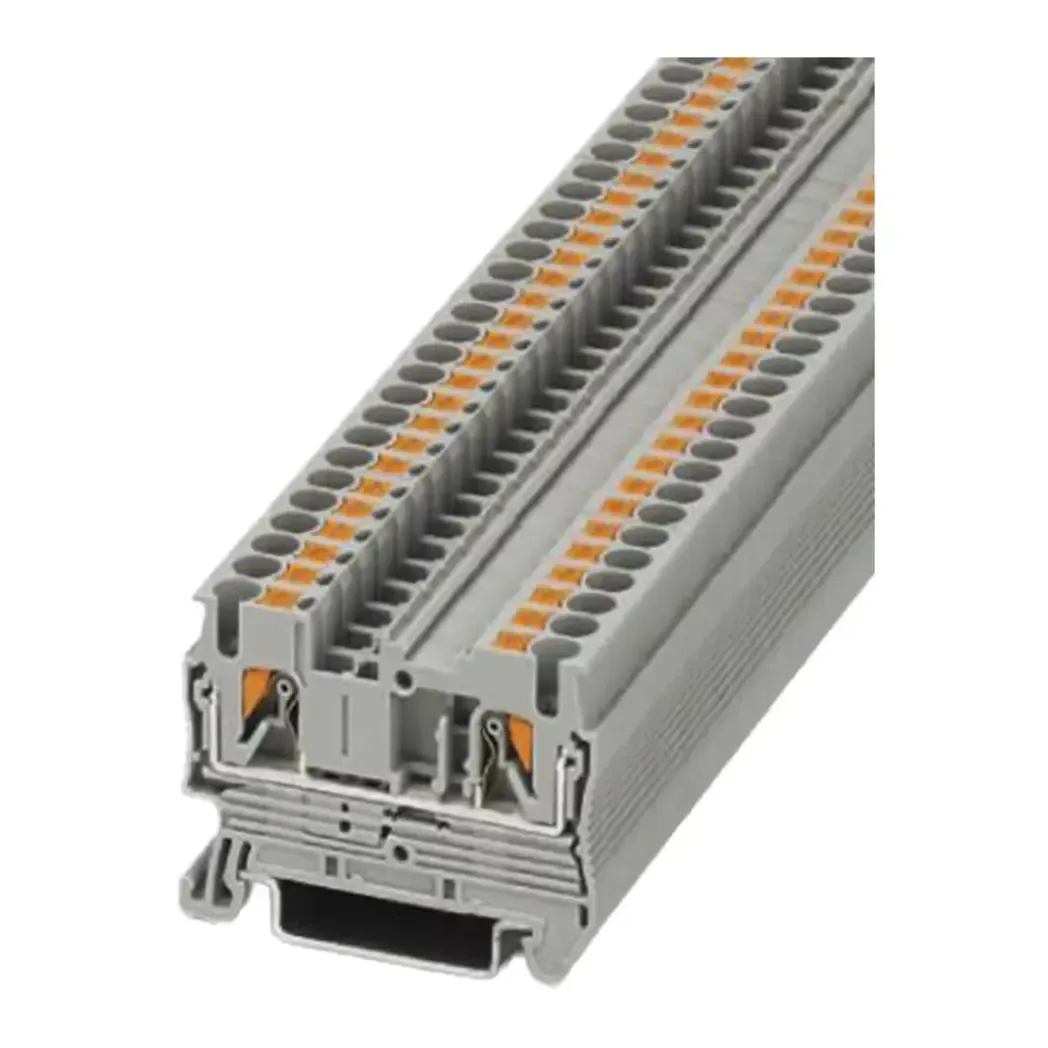

Phoenix Contact PT 2.5 push-in feed-through terminal block — single position, single row, two connections. Suits NS 35⁄7.5 and NS 35⁄15 DIN rail. Rated for railway, machine building, plant engineering, and process industry panels.
Push-in connection accepts rigid and flexible conductors without a screwdriver. Strip 8–10 mm. ATEX/IECEx rated for hazardous area use (II 2 G Ex eb IIC Gb).
- Nominal voltage: 800 V, nominal current: 24 A (at 2.5 mm²)
- Conductor range: 0.14–4 mm² (rigid and flexible), 26–12 AWG
- Operating temp: -60 °C to +110 °C
- Flammability: UL 94 V-0, PA insulator
- Width: 5.2 mm, height: 48.6 mm
