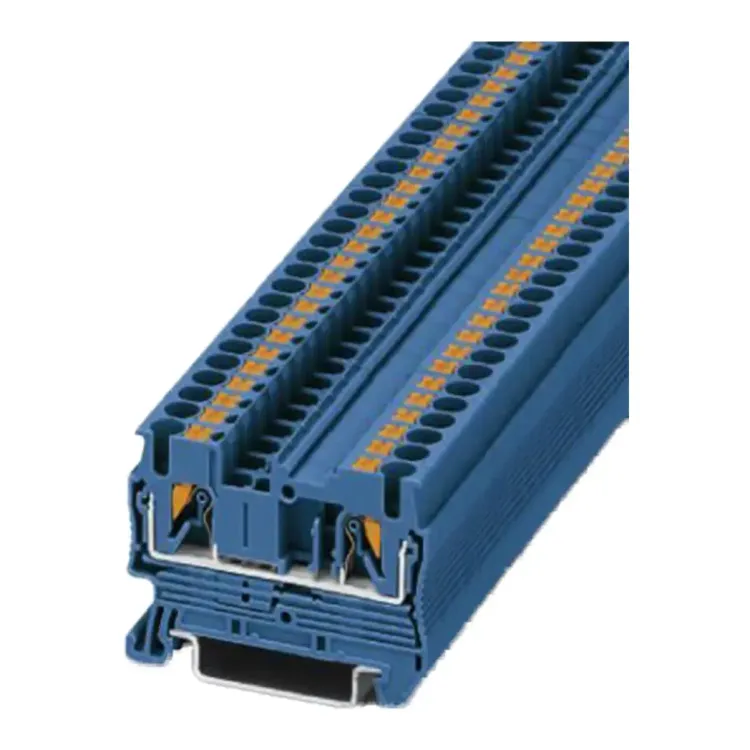

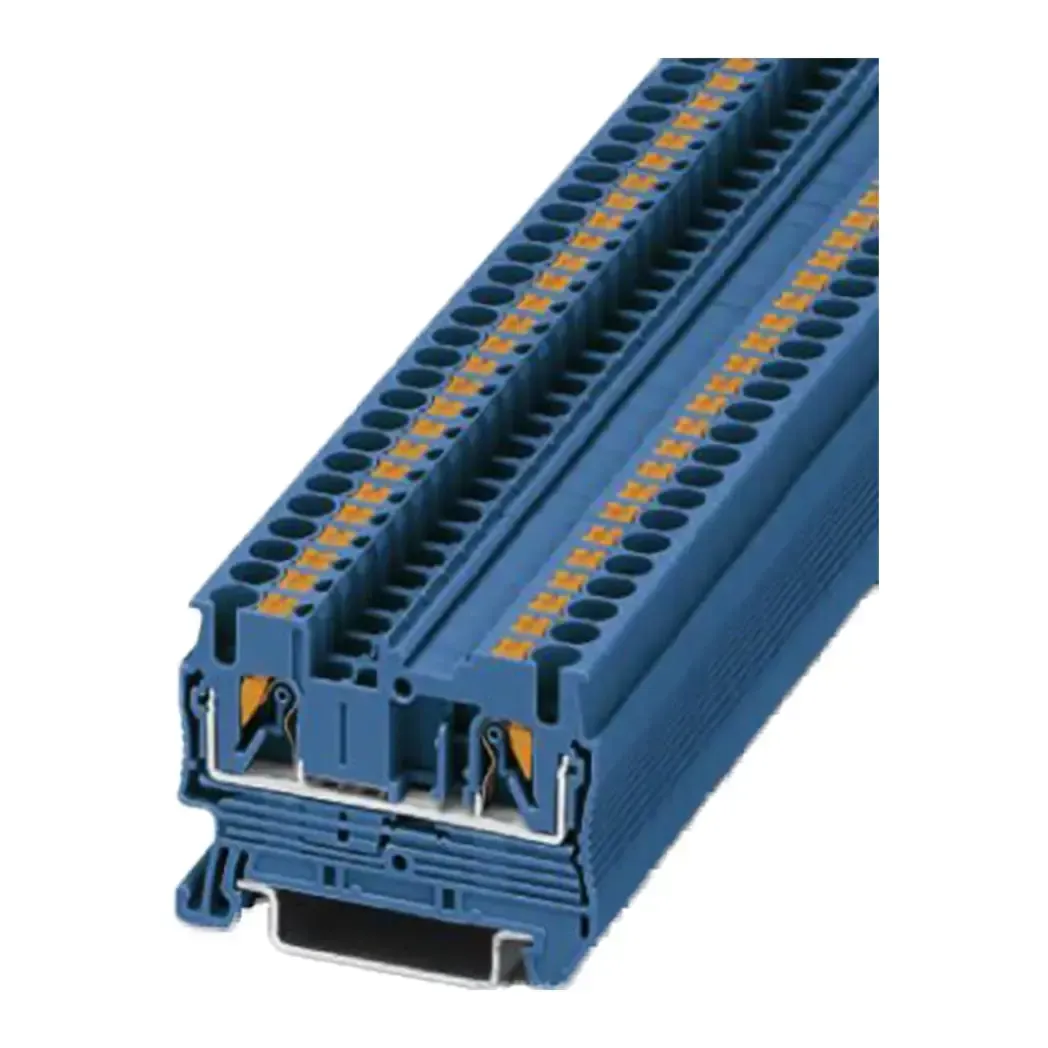

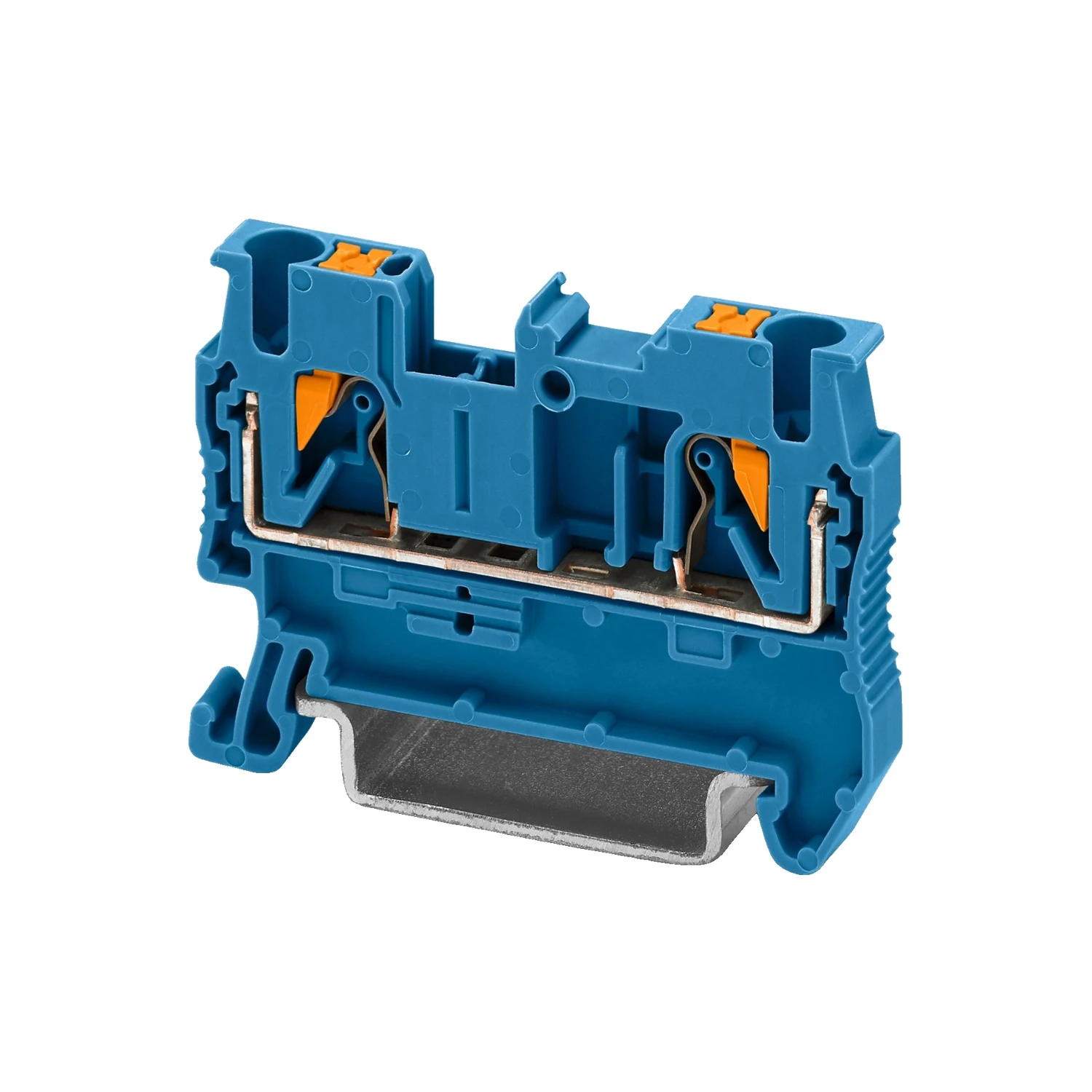

Phoenix Contact PT 2.5 BU Push-In Feed-Through Terminal Block 800V Blue

Photo is representative

Phoenix Contact PT 2.5 BU Push-In Feed-Through Terminal Block 800V Blue

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3209523
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £0.78

Gross price

£0.94

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Feed-through terminal block from Phoenix Contact’s PT series. Push-in connection — no tool needed for termination. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail.

Suited to panel builds, machine building, plant engineering, and rail vehicle applications. Carries ATEX/IECEx approval (II 2 G Ex eb IIC Gb) and meets DIN EN 45545-2 fire protection for railway use.

  • Nominal: 800 V / 24 A at 2.5 mm²
  • Conductor range: 0.14–4 mm² rigid and flexible (26–12 AWG)
  • Stripping length: 8–10 mm
  • Rated surge voltage: 8 kV, Overvoltage Category III
  • Operating temp: -60 °C to +110 °C
Specifications

Connection Method

Push-in connection

Nominal Voltage

800 V

Nominal Current

24 A (at 2.5 mm²)

Maximum Load Current

30 A (4 mm² rigid conductor)

Nominal Cross Section

2.5 mm²

Conductor Cross-Section Rigid

0.14–4 mm²

Conductor Cross-Section Flexible

0.14–4 mm²

Conductor Cross-Section AWG

26–12

Stripping Length

8–10 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Degree of Pollution

3

Mounting Type

NS 35/7.5, NS 35/15

Width

5.2 mm

Height

48.5 mm

Depth

35.3 mm

Depth on NS 35/7.5

36.8 mm

Depth on NS 35/15

44.3 mm

Colour

Blue (RAL 5015)

Material

Polyamide (PA)

Flammability Rating

UL 94 V-0

Operating Temperature

-60 °C to +110 °C

Standard

IEC 60947-7-1

ATEX/IECEx Classification

II 2 G Ex eb IIC Gb
