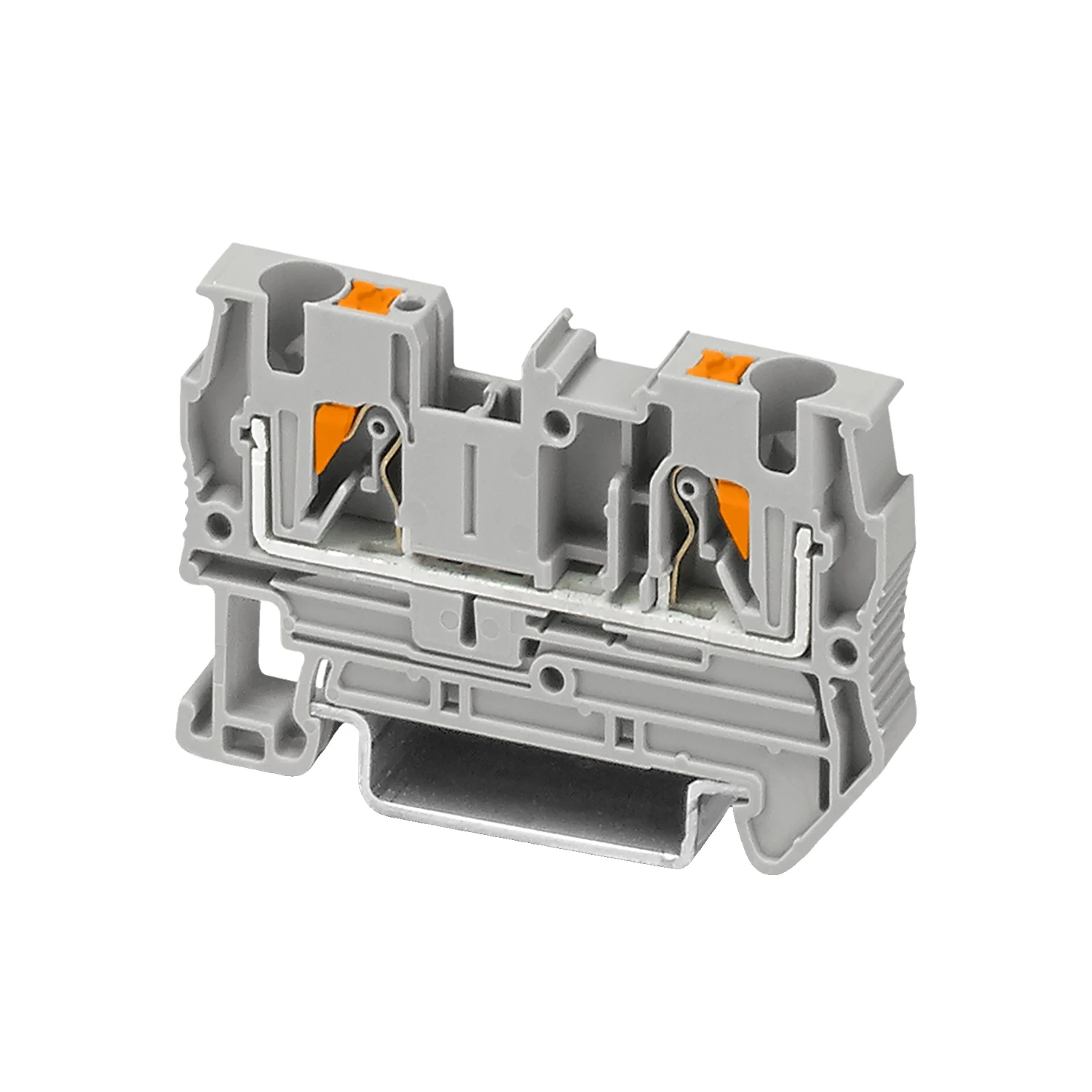

Phoenix Contact PT 4 Push-In Feed-Through Terminal Block 32A 800V Grey

Photo is representative

Phoenix Contact PT 4 Push-In Feed-Through Terminal Block 32A 800V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3211757
GTIN —
Stock status: In stock

priced individually

Net price: £0.85

Gross price

£1.01

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

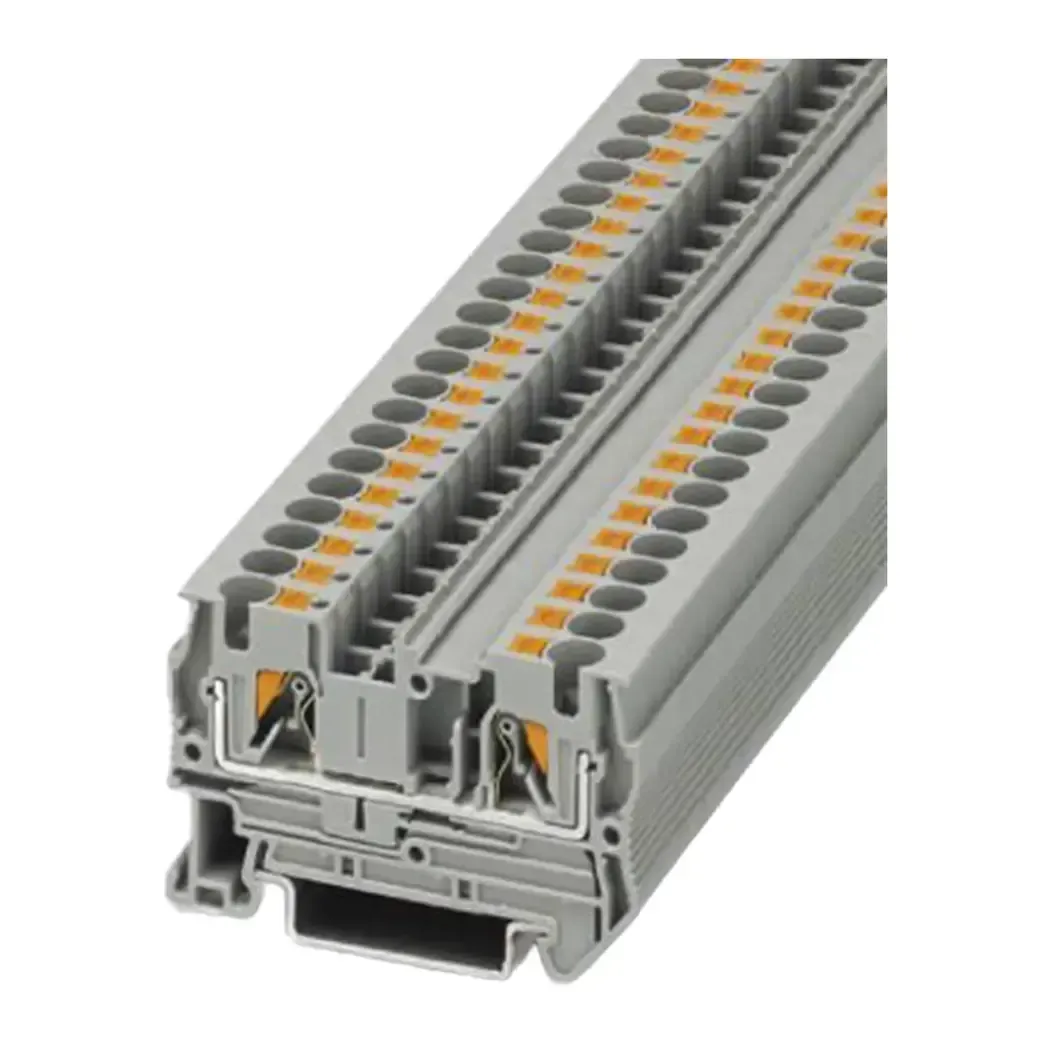

Phoenix Contact PT 4 feed-through terminal block with push-in connection. Single-position, single-row block for DIN rail mounting — suits NS 35⁄7.5 and NS 35⁄15. Rated to IEC 60947-7-1.

Covers rigid and flexible conductors from 0.2–6 mm² (24–10 AWG). TWIN ferrule connections accepted up to 1 mm². Stripping length 10–12 mm.

  • Nominal current: 32 A / Max load: 36 A (6 mm² rigid)
  • Nominal voltage: 800 V / Surge voltage: 8 kV
  • Operating temp: -60 °C to +110 °C
  • Flammability: UL 94 V-0, PA insulator
  • ATEX/IECEx rated: II 2 G Ex eb IIC Gb
Specifications

Connection Method

Push-in connection

Nominal Current

32 A

Maximum Load Current

36 A (6 mm² rigid)

Nominal Voltage

800 V

Rated Surge Voltage

8 kV

Nominal Cross-Section

4 mm²

Conductor Cross-Section (rigid)

0.2 – 6 mm²

Conductor Cross-Section (flexible)

0.2 – 6 mm²

Conductor Cross-Section AWG

24 – 10

Stripping Length

10 – 12 mm

Mounting Type

NS 35/7.5, NS 35/15

Dimensions (W x H x D)

6.2 x 56 x 35.3 mm

Operating Temperature

-60 °C – 110 °C

Flammability Rating

UL 94 V-0

Insulating Material

PA

Colour

Grey (RAL 7042)

Overvoltage Category

III

Connection Standard

IEC 60947-7-1

ATEX/IECEx Classification

II 2 G Ex eb IIC Gb

Documents

datasheet Phoenix Contact 3211757 Datasheet
