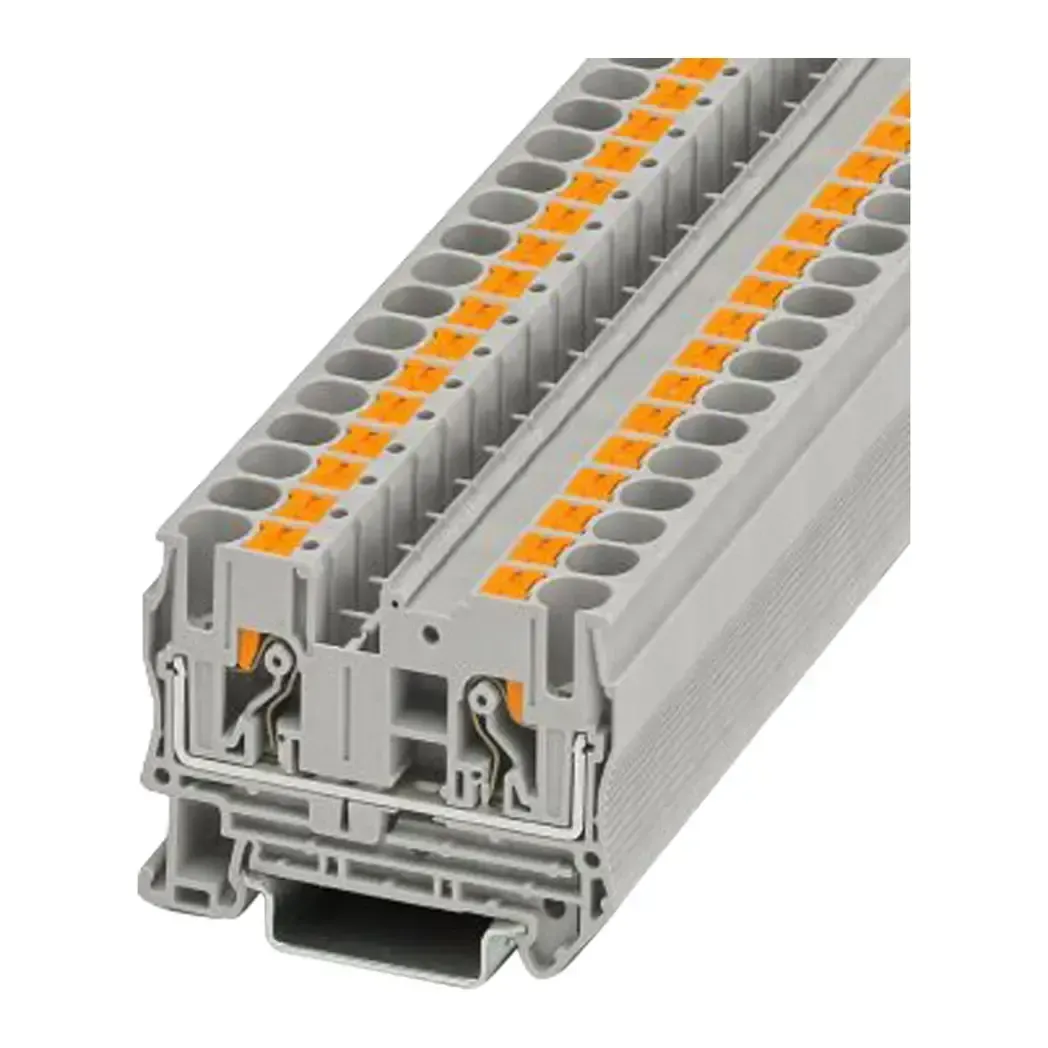

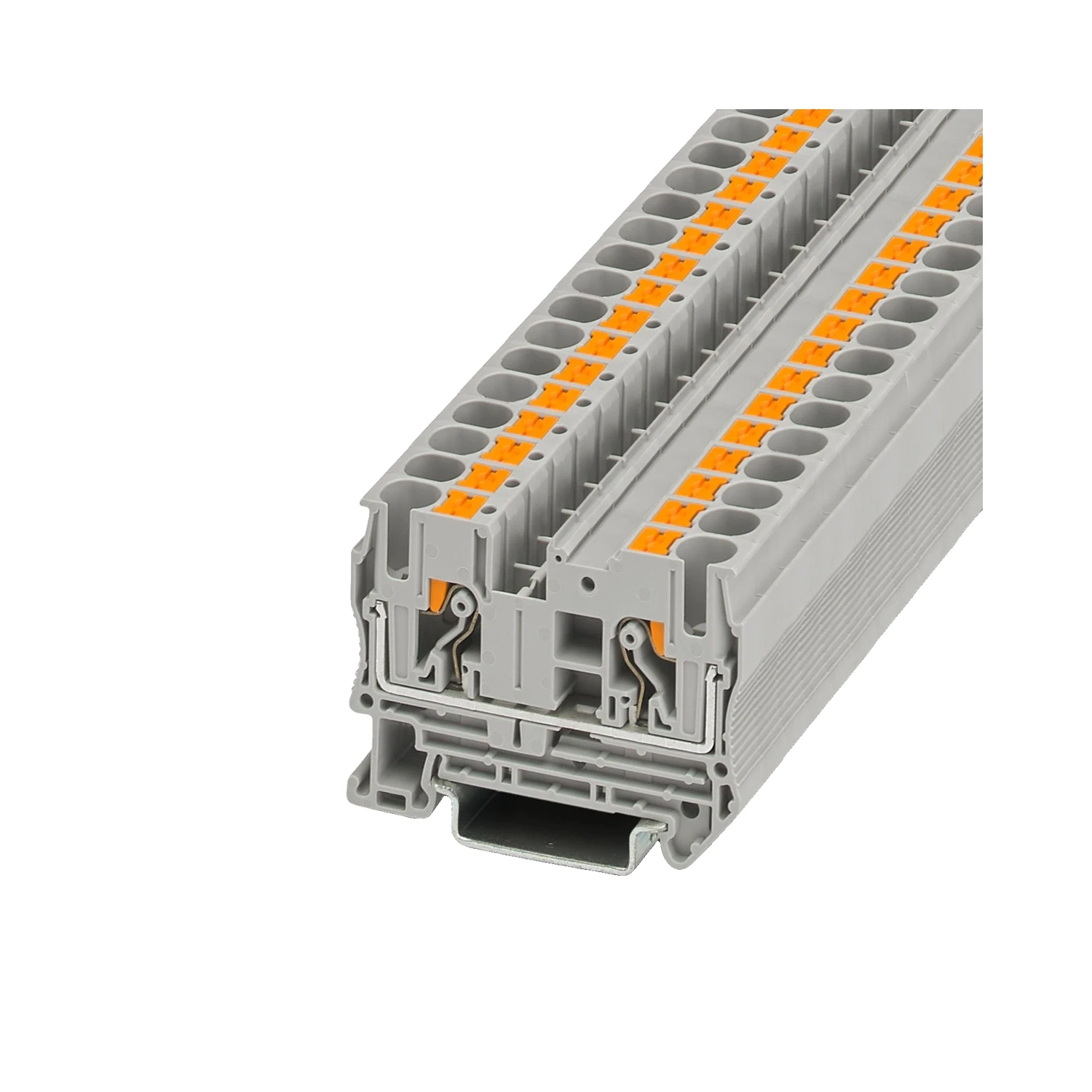

Phoenix Contact PT 6 Push-In Feed-Through Terminal Block 1000V Grey 3211813

Photo is representative

Phoenix Contact PT 6 Push-In Feed-Through Terminal Block 1000V Grey 3211813

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3211813
GTIN —
Stock status: In stock

priced individually

Net price: £2.17

Gross price

£2.61

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Phoenix Contact PT 6 series feed-through terminal block with push-in connection. Suits railway, machine building, and plant engineering panel builds. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail.

  • Nominal voltage: 1000 V, nominal current: 41 A
  • Accepts rigid and flexible conductors 0.5–10 mm², directly pluggable from 1 mm²
  • Stripping length: 10–12 mm
  • Operating temp: -60 °C to +110 °C
  • PA insulator, UL 94 V-0, ATEX/IECEx rated
Specifications

Nominal Voltage

1000 V

Nominal Current

41 A

Maximum Load Current

52 A (10 mm² rigid conductor)

Nominal Cross Section

6 mm²

Rated Cross Section (AWG)

10 AWG

Connection Method

Push-in connection

Conductor Cross-Section Rigid

0.5 mm² – 10 mm²

Conductor Cross-Section Flexible

0.5 mm² – 10 mm²

Cross Section AWG Range

20 – 8 AWG

Stripping Length

10 mm – 12 mm

Mounting Type

NS 35/7.5, NS 35/15

Overvoltage Category

III

Rated Surge Voltage

8 kV

Operating Temperature

-60 °C – 110 °C

Insulating Material

PA

Flammability Rating

UL 94 V-0

Connection Standard

IEC 60947-7-1

ATEX/IECEx Classification

II 2 GD Ex eb IIC Gb

Width

8.2 mm

Height

57.7 mm

Depth

42.2 mm

Colour

Gray (RAL 7042)
