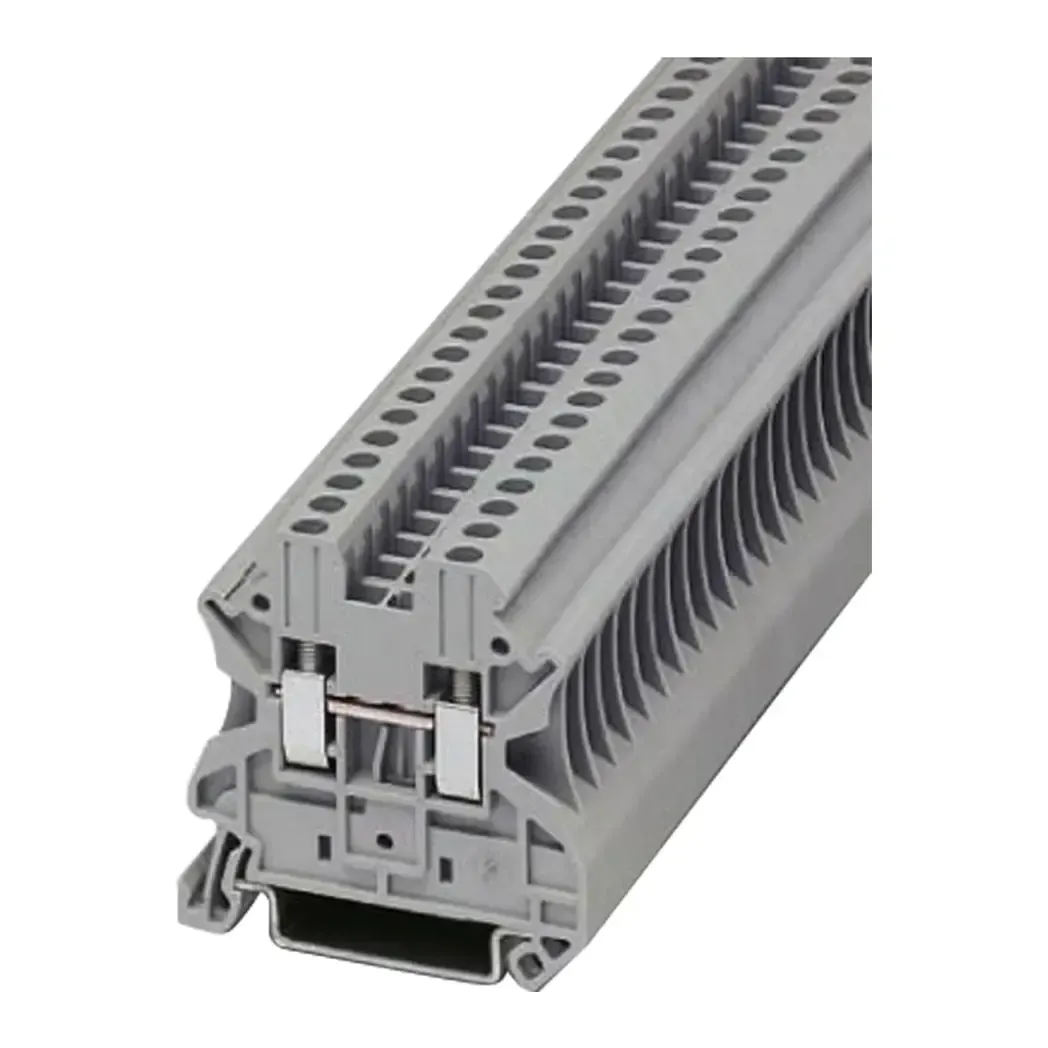

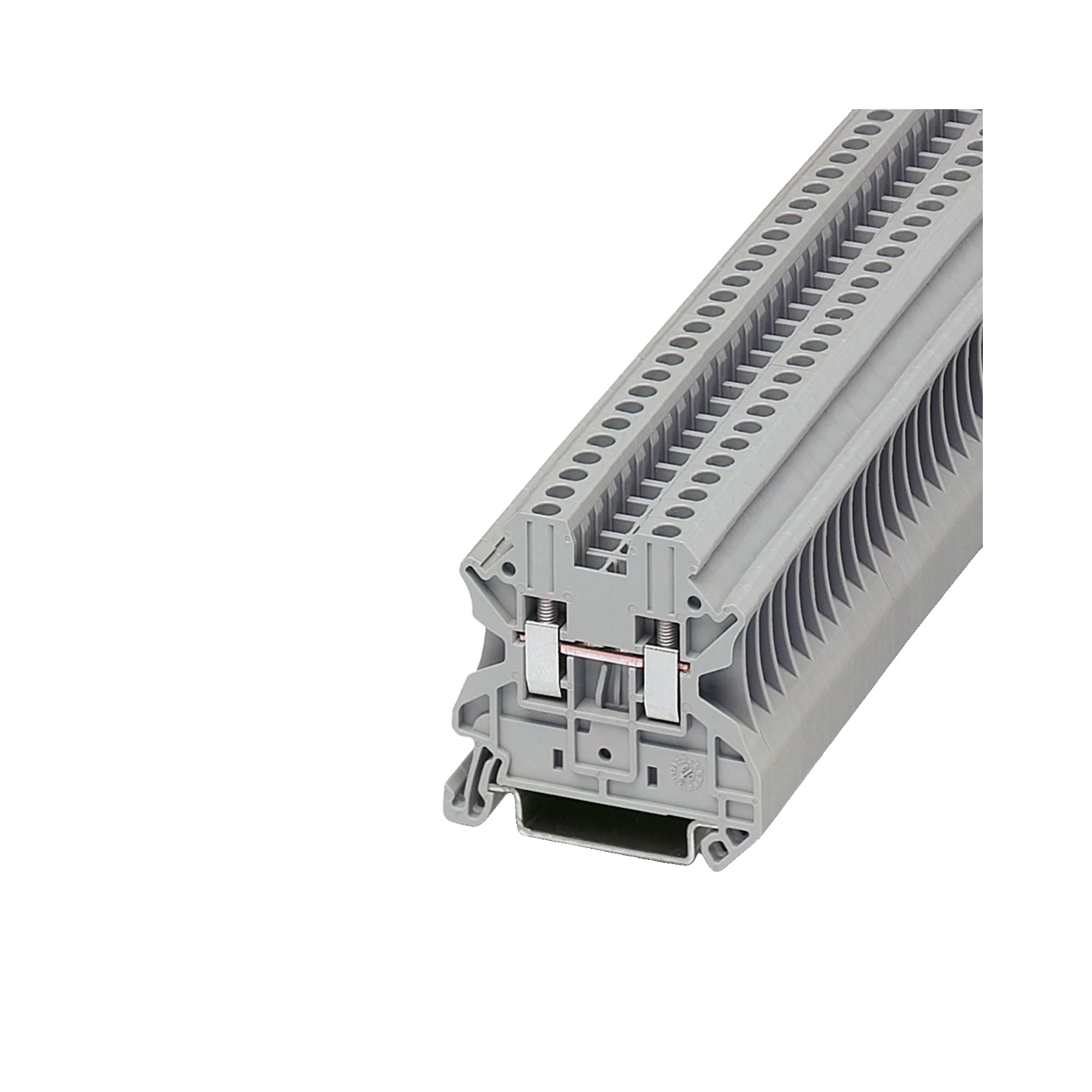

3044076 - Phoenix Feed-Through Terminal Block UT 2.5 3044076

Phoenix Feed-Through Terminal Block UT 2.5 3044076

Phoenix Feed-through terminal block UT 2.5 3044076 - Number of levels: 1, Number of connections: 2, Potentials: 1. Nominal cross section: 2.5 mm. Colour: Grey.

Stock Code

3044076

Available

£0.60

incl. VATpriced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Area Of Application

    Railway Industry

  • Back Of The Hand Protection

    Guaranteed

  • Colour

    Grey

  • Degree Of Pollution

    3

  • Finger Protection

    Guaranteed

  • Flammability Rating According To UL 94

    V0

  • Insulating Material

    PA

  • Insulating Material Group

    I

  • Maximum Load Current

    32 A (with 4 mm conductor cross section)

  • Maximum Power Dissipation For Nominal Condition

    0.77 W

  • Nominal Cross Section

    2.5 mm

  • Nominal Current IN

    24 A

  • Nominal Voltage UN

    1000 V

  • Number Of Connections

    2

  • Number Of Levels

    1

  • Open Side Panel

    Yes

  • Overvoltage Category

    III

  • Potentials

    1

  • Rated Surge Voltage

    8 kV

  • SKU

    3044076

  • Shock Protection Test Specification

    DIN EN 50274 (VDE 0660-514):2002-11

Brand

Phoenix Contact
