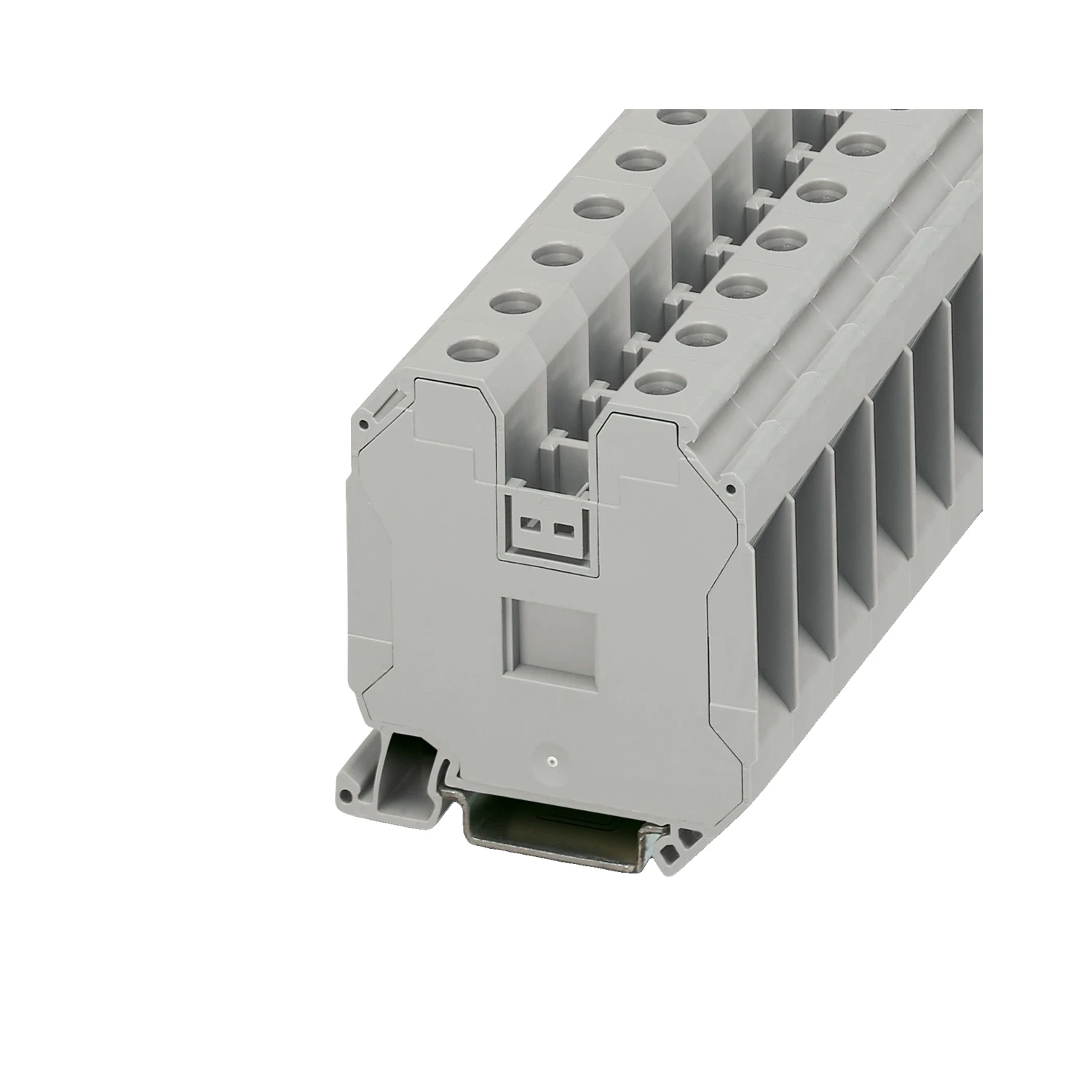

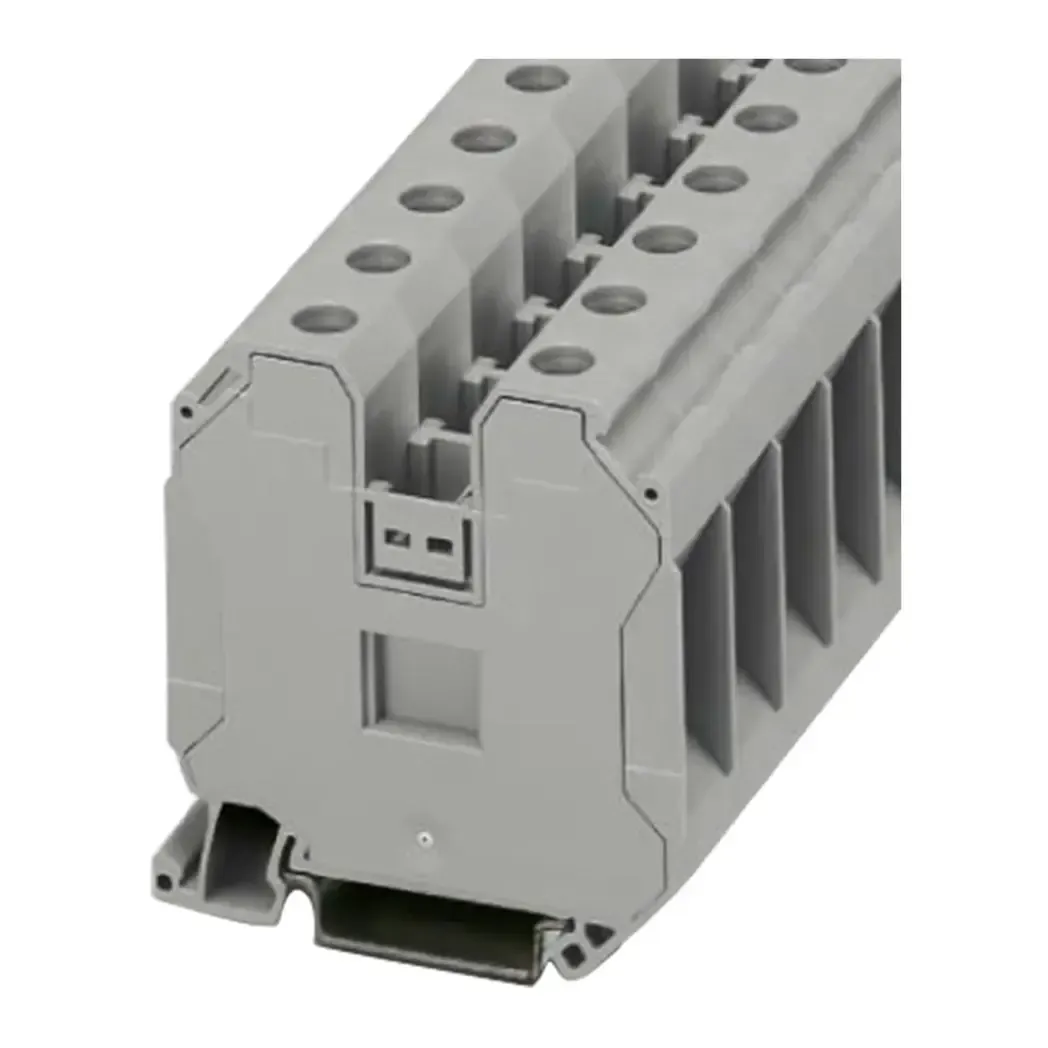

Phoenix Feed-through Terminal Block UT 35 3044225
The Phoenix Feed-through Terminal Block UT 35 3044225 has 1 level and 2 connections, with a nominal cross section of 35 mm. It is grey in color with insulating material made of PA and a flammability rating of V0.
Stock Code
3044225
Available
£4.75
incl. VATpriced individually
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Back Of The Hand Protection
Guaranteed
-
Colour
Grey
-
Degree Of Pollution
3
-
Finger Protection
Guaranteed
-
Flammability Rating According to UL 94
V0
-
Insulating Material
PA
-
Insulating Material Group
I
-
Maximum Load Current
150 A (with 50 mm conductor cross section)
-
Maximum Power Dissipation For Nominal Condition
4.06 W
-
Nominal Cross Section
35 mm
-
Nominal Current IN
125 A
-
Nominal Voltage UN
1000 V
-
Number Of Connections
2
-
Number Of Levels
1
-
Open Side Panel
No
-
Overvoltage Category
III
-
Potentials
1
-
Rated Surge Voltage
8 kV
-
SKU
3044225
-
Shock Protection Test Specification
DIN EN 50274 (VDE 0660-514):2002-11
Brand
