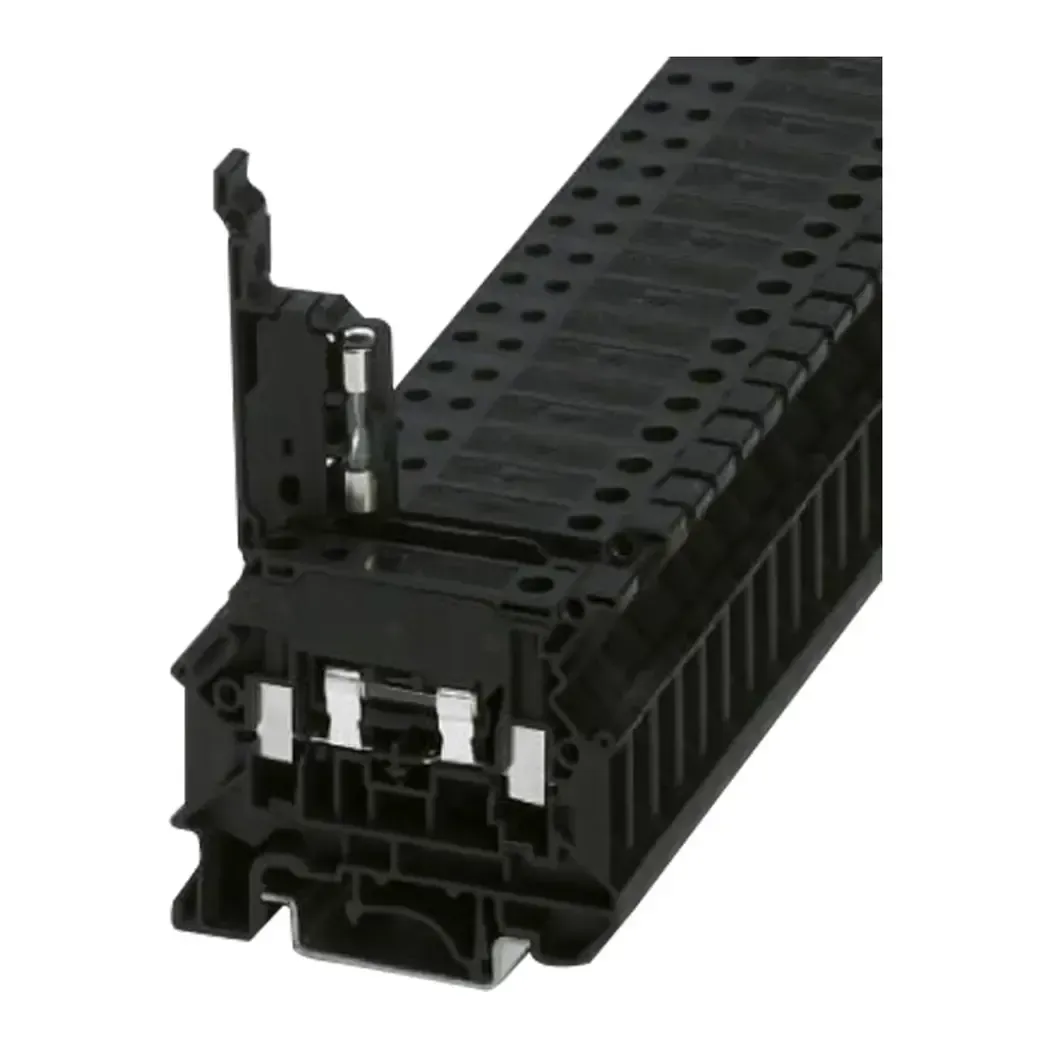

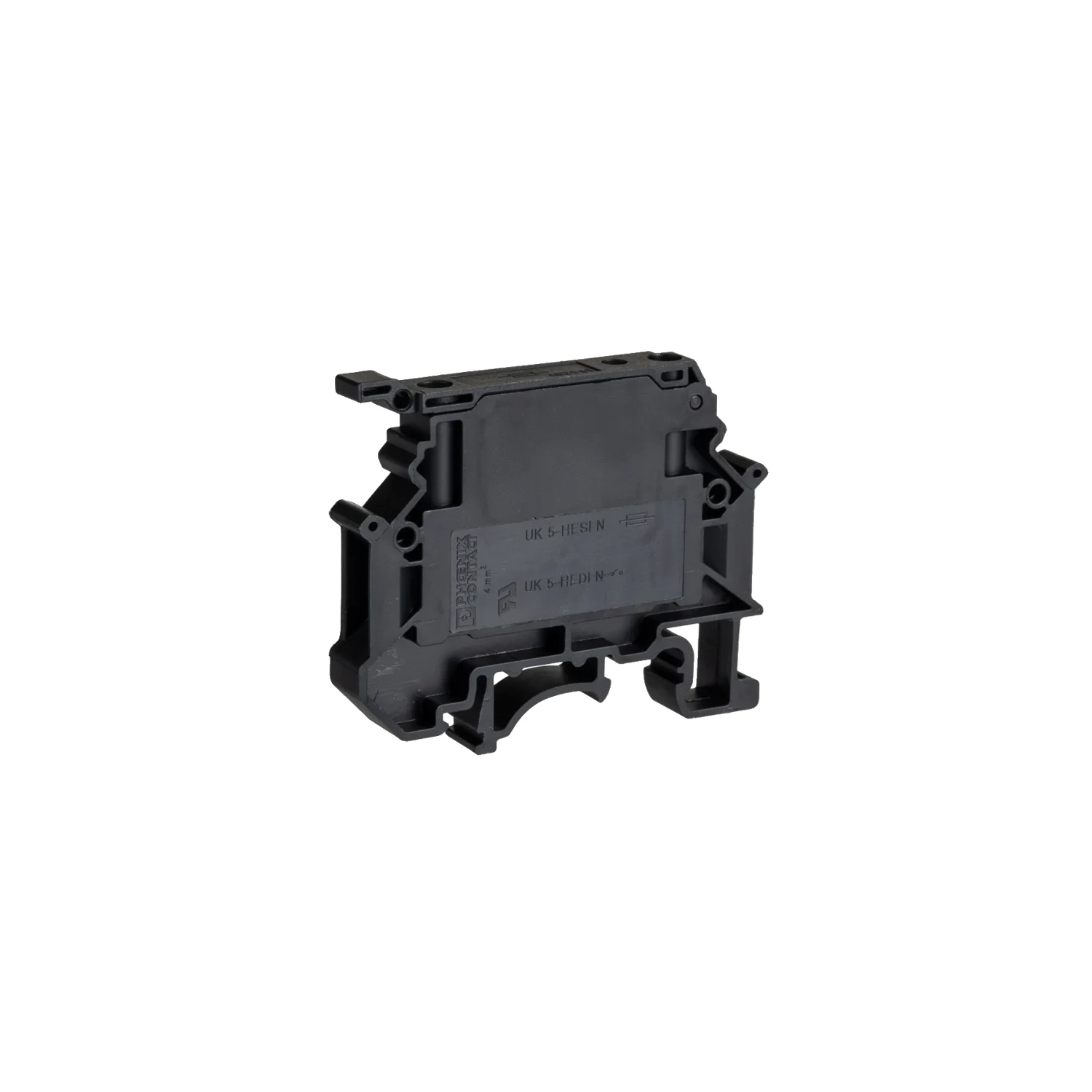

Phoenix Contact UK 5-HESI N Fuse Terminal Block 6.3A 500V Black

Photo is representative

Phoenix Contact UK 5-HESI N Fuse Terminal Block 6.3A 500V Black for 5x20mm Fuses

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3000539
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £5.21

Gross price

£6.25

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-position fuse terminal block for G/5×20mm glass or ceramic fuses. Mounts on NS 35⁄7.5, NS 35⁄15, or NS 32 DIN rail. Screw connection with M3 thread.

Note: fuse-link not supplied. Use 8.2mm pitch marking material for terminal marking, 6.2mm pitch for lever marking.

  • Connection: screw, M3, 0.6–0.8 Nm tightening torque
  • Conductor cross-section: 0.2–6mm² rigid, 0.2–4mm² flexible
  • Stripping length: 8mm
  • Housing: black PA, UL94 V-0
  • Operating temp: -60°C to +110°C
Specifications

Nominal Voltage

500 V

Nominal Current

6.3 A

Fuse Size

G / 5 x 20 mm

Fuse Type

Glass / ceramics

Connection Method

Screw connection

Screw Thread

M3

Tightening Torque

0.6 ... 0.8 Nm

Stripping Length

8 mm

Conductor Cross-Section (Rigid)

0.2 mm² ... 6 mm²

Conductor Cross-Section (Flexible)

0.2 mm² ... 4 mm²

Conductor Cross-Section AWG (Rigid)

24 ... 10

Mounting Type

NS 35/7.5; NS 35/15; NS 32

Rated Surge Voltage

6 kV

Overvoltage Category

III

Connection Standard

IEC 60947-7-3

Width

8.2 mm

Height

58 mm

Depth on NS 35/7.5

50 mm

Ambient Temperature (Operation)

-60 °C ... 110 °C

Flammability Rating (UL 94)

V0

Housing Material

PA

Colour

Black (RAL 9005)
