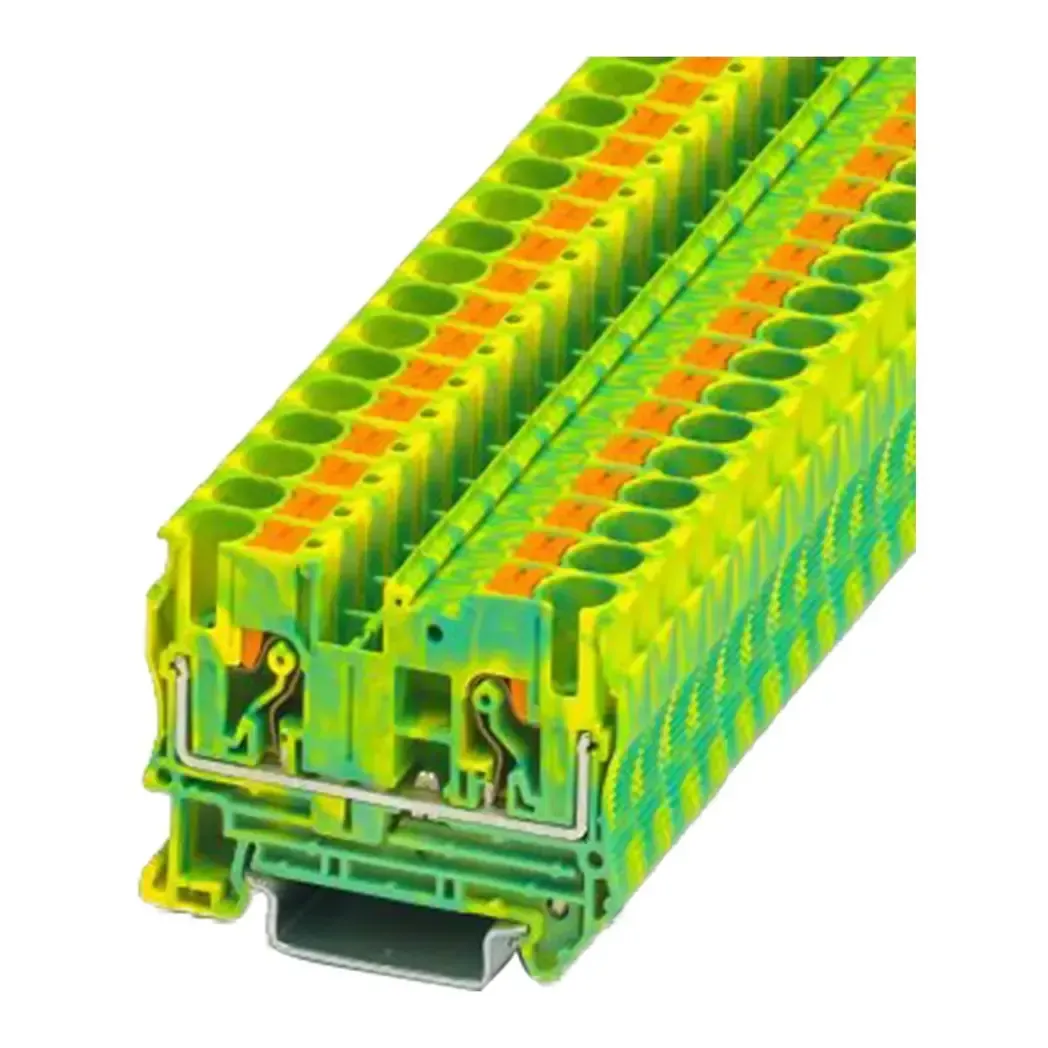

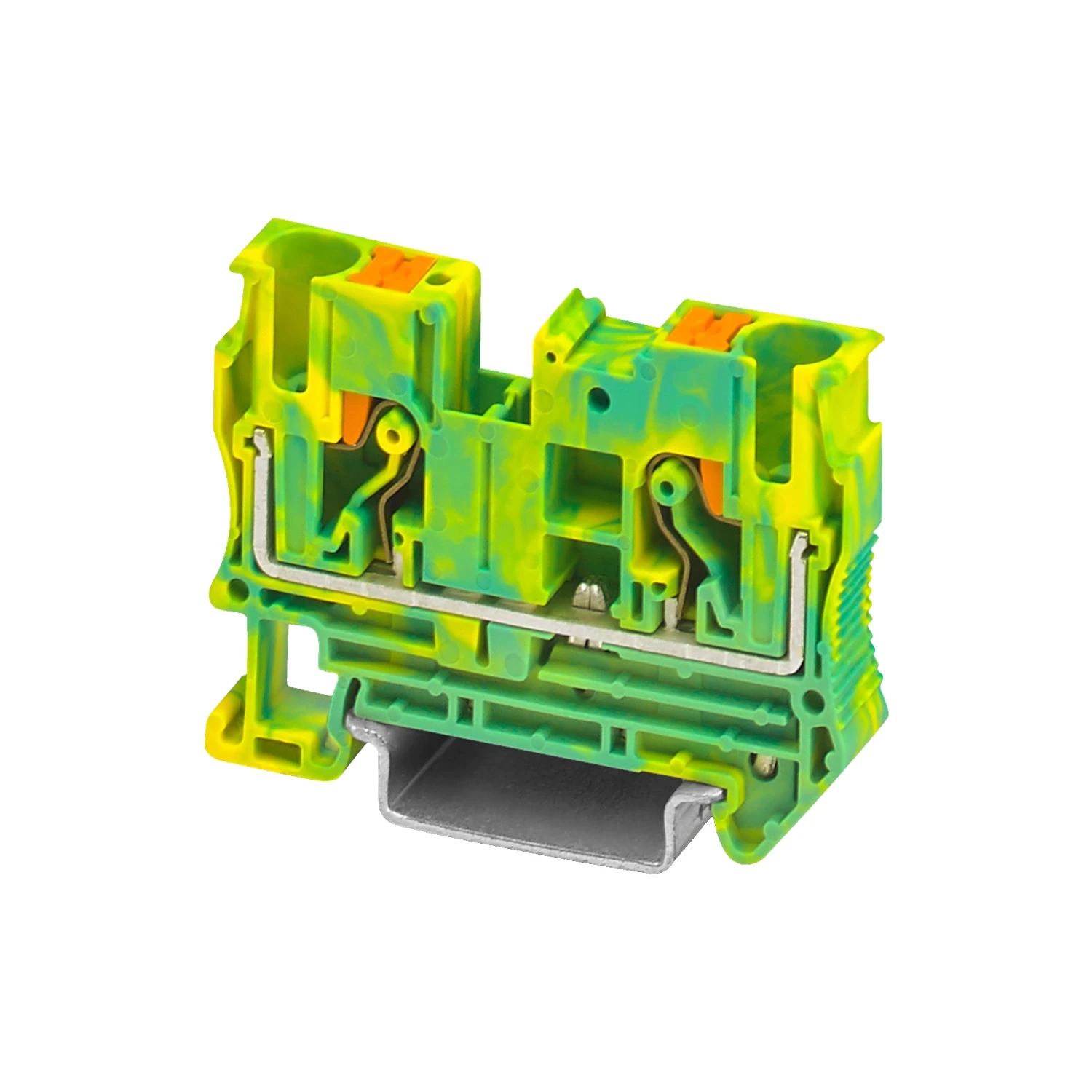

Phoenix Contact PT 6-PE Push-In Protective Conductor Terminal Block Green Yellow

Photo is representative

Phoenix Contact PT 6-PE Push-In Protective Conductor Terminal Block Green Yellow

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3211822
GTIN —
Stock status: In stock

priced individually

Net price: £3.81

Gross price

£4.57

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Push-in protective conductor terminal block from Phoenix Contact’s PT series. Single-position, single-row, two-connection earth terminal for DIN rail panels in machine building, plant engineering, and railway installations.

Fits NS 35⁄7.5 and NS 35⁄15 DIN rail. Accepts solid, stranded, and ferruled conductors without tools — just strip to 10–12 mm and insert.

  • Nominal cross-section: 6 mm²
  • Conductor range: 0.5–10 mm² (rigid and flexible), 20–8 AWG
  • Rated surge voltage: 8 kV, Overvoltage Category III
  • Operating temp: -60 °C to +110 °C
  • UL 94 V-0 insulation, PA housing, green-yellow
Specifications

Connection Method

Push-in connection

Nominal Cross-Section

6 mm²

Conductor Range (Rigid)

0.5 mm² – 10 mm²

Conductor Range (Flexible)

0.5 mm² – 10 mm²

Conductor Range (AWG)

20 – 8

Ferrule Without Plastic Sleeve

0.5 mm² – 6 mm²

Ferrule With Plastic Sleeve

0.5 mm² – 6 mm²

Stripping Length

10 mm – 12 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Degree of Pollution

3

Mounting Type

NS 35/7.5, NS 35/15

Operating Temperature

-60 °C – 110 °C

Storage Temperature

-25 °C – 60 °C

Assembly Temperature

-5 °C – 70 °C

Width

8.2 mm

Height

57.7 mm

Depth

42.2 mm

Depth on NS 35/7.5

43.5 mm

Depth on NS 35/15

51 mm

Insulating Material

PA

Flammability Rating

UL 94 V-0

Colour

Green-yellow

Connection Standard

IEC 60947-7-2

Documents

datasheet Phoenix Contact 3211822 Datasheet
