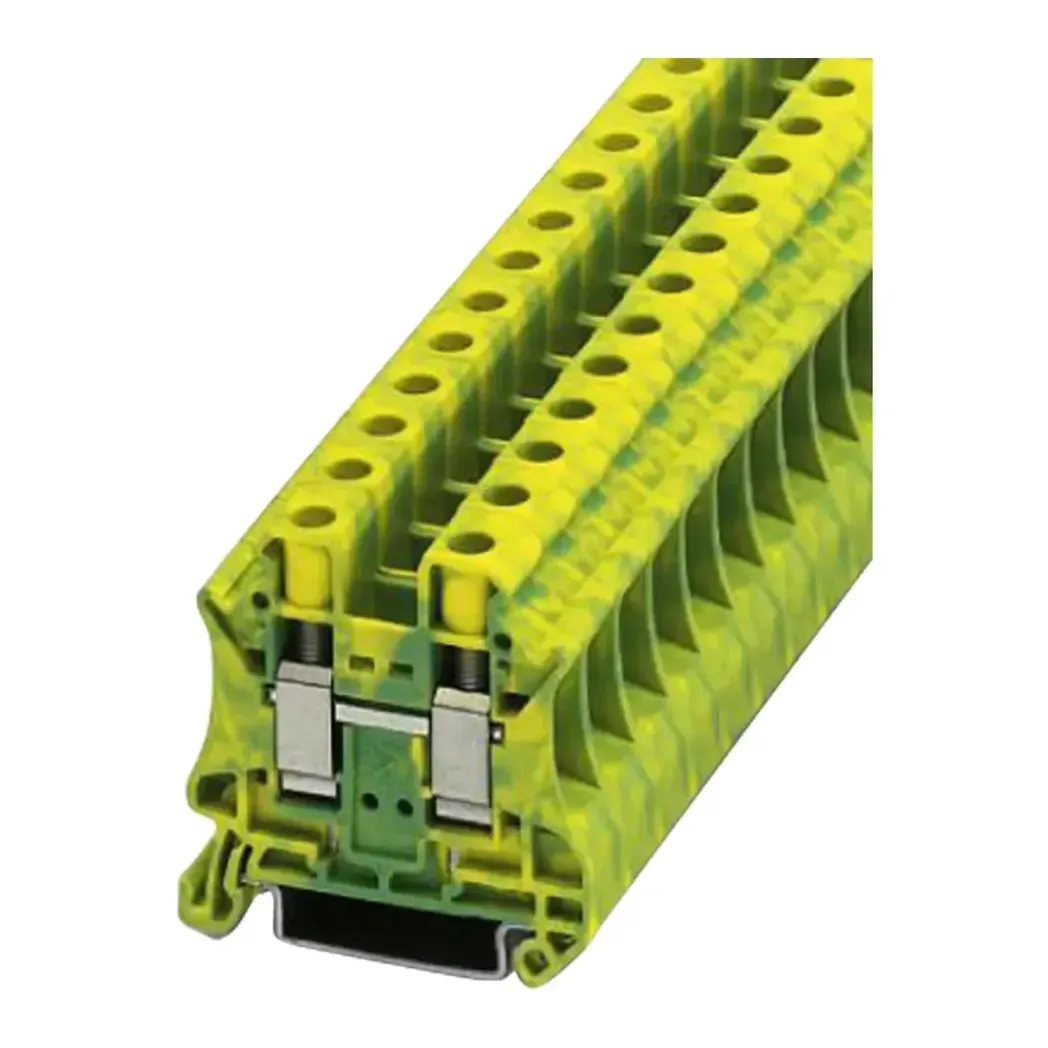

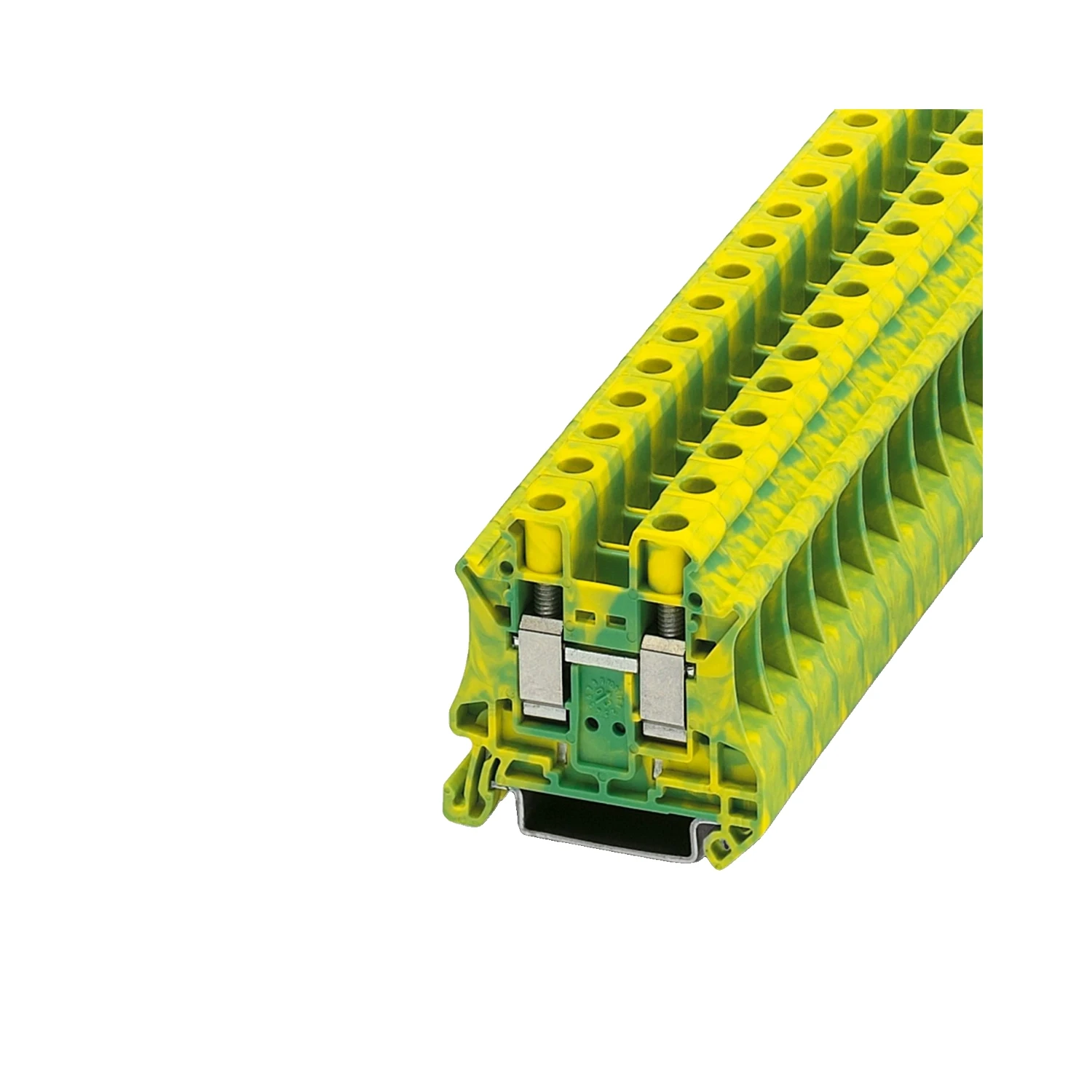

Phoenix Ground Modular Terminal Block UT 10-PE 3044173
The Phoenix Ground Modular Terminal Block UT 10-PE 3044173, with nominal cross section 10 mm, is a green-yellow block suitable for railway industry, machine building, plant engineering, and process industry. It has a flammability rating of V0 and a rated surge voltage of 8 kV.
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Colour
Green-Yellow
-
ASD Level
6.12 (m/s2)2/Hz
-
Shock Form
Half-Sine
-
Acceleration
3.12 g
-
Test Spectrum
Service Life Test Category 2 Bogie-Mounted
-
Test Frequency
f1 = 5 Hz to f2 = 250 Hz
-
Open Side Panel
Yes
-
Test Directions
X- Y- and Z-Axis
-
Number Of Levels
1
-
Finger Protection
Not Guaranteed
-
Area Of Application
Railway Industry Machine Building Plant Engineering Process Industry
-
Degree Of Pollution
3
-
Insulating Material
PA
-
Rated Surge Voltage
8 kV
-
Overvoltage Category
III
-
Nominal Cross Section
10 mm
-
Number Of Connections
2
-
Test Duration Per Axis
5 h
-
Insulating Material Group
I
-
Back Of The Hand Protection
Not Guaranteed
-
Test Specification Shock Test
DIN EN 50155 (VDE 0115-200):2008-03
-
Shock Protection Test Specification
DIN EN 50274 (VDE 0660-514):2002-11
-
Flammability Rating According To UL 94
V0
-
Surface Flammability NFPA 130 (ASTM E 162)
Passed
-
Static Insulating Material Application In Cold
-60 C
-
Test Specification Oscillation Broadband Noise
DIN EN 50155 (VDE 0115-200):2018-05
-
Calorimetric Heat Release NFPA 130 (ASTM E 1354)
27.5 MJ/kg
-
Specific Optical Density Of Smoke NFPA 130 (ASTM E 662)
Passed
-
Relative Insulation Material Temperature Index (Elec. UL 746 B)
130 C
-
Temperature Index Of Insulation Material (DIN EN 60216-1 (VDE 0304-21))
125 C
