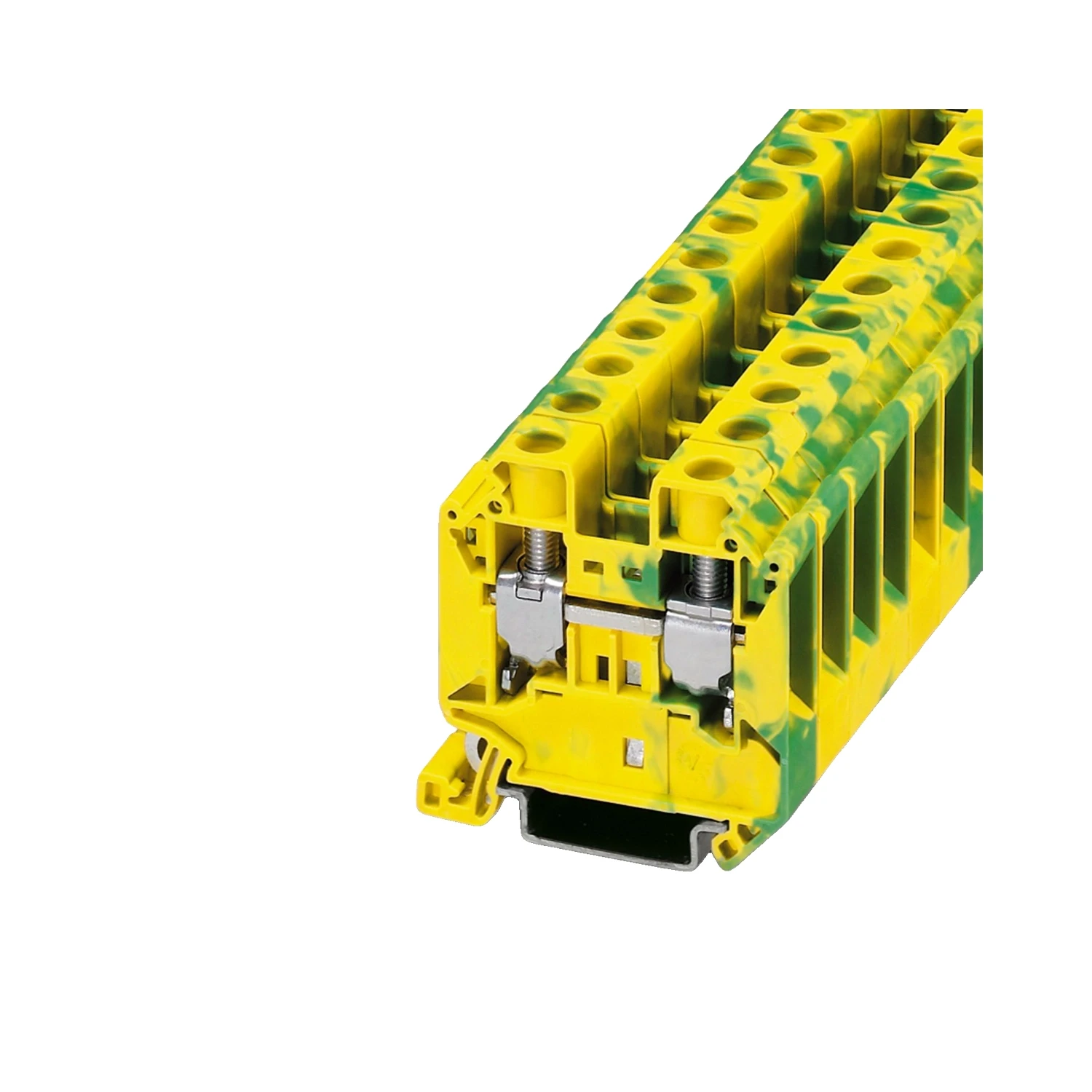

Photo is representative

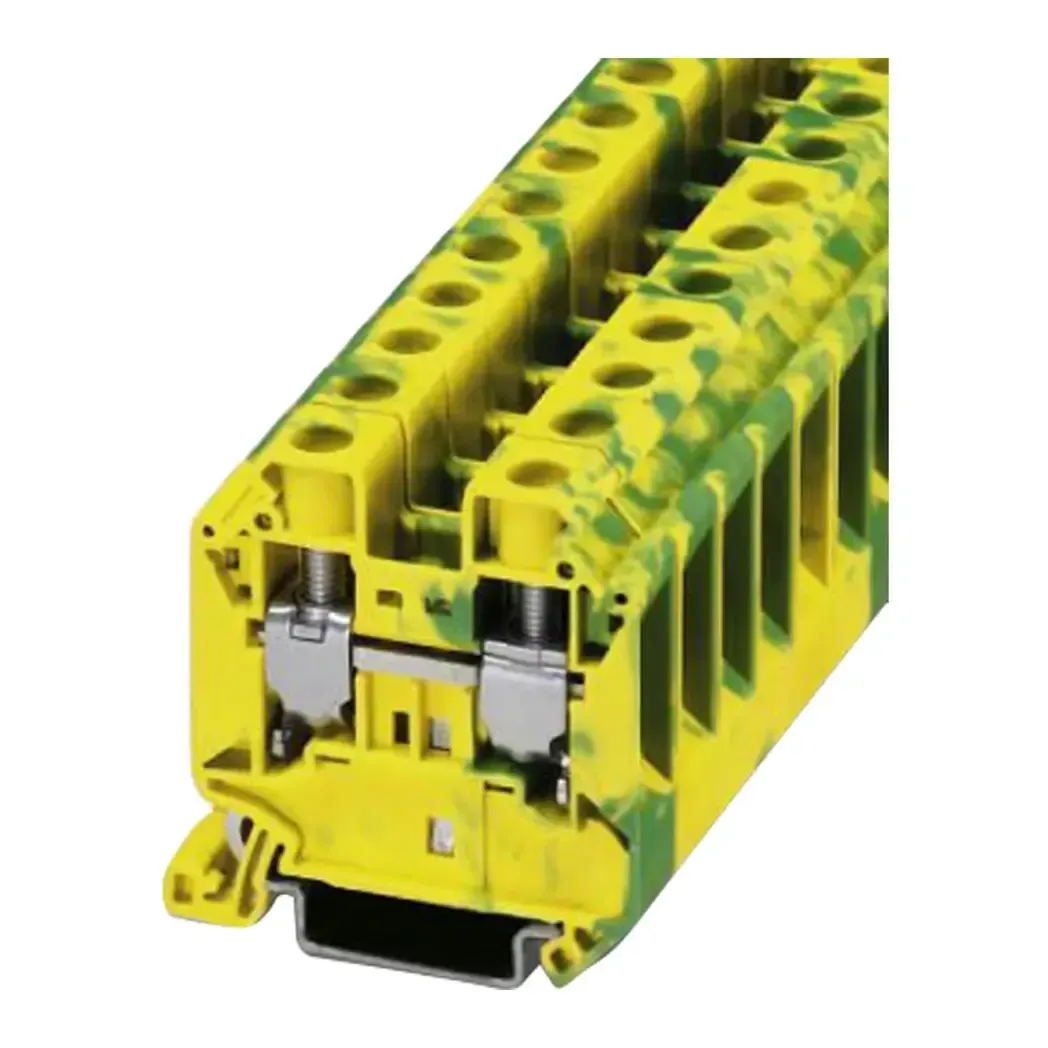

Phoenix Ground Modular Terminal Block UT 16-PE 3044212
The Phoenix Ground Modular Terminal Block UT 16-PE 3044212 is designed for electrical connections with a nominal cross section of 16mm. It features a green-yellow color and is made of PA insulating material with a flammability rating of V0. The block provides surge protection up to 8kV and is suitable for use in environments with a degree of pollution level of 3.
Stock Code:
3044212
Online:
In stock
Price 5.63 £
incl. VAT, 20%
priced individually
Product Features
Color | Green-yellow |
---|---|
ASD Level | 6.12 (m/s2)2/Hz |
Shock Form | Half-sine |
Acceleration | 3.12 g |
Test Spectrum | Service Life Test Category 2 Bogie-mounted |
Test Frequency | f1 = 5 Hz to f2 = 250 Hz |
Open Side Panel | Yes |
Test Directions | X- Y- and Z-axis |
Number Of Levels | 1 |
Finger Protection | Not Guaranteed |
Degree Of Pollution | 3 |
Insulating Material | PA |
Rated Surge Voltage | 8 kV |
Overvoltage Category | III |
Nominal Cross Section | 16 mm |
Number Of Connections | 2 |
Test Duration Per Axis | 5 h |
Insulating Material Group | I |
Back Of The Hand Protection | Not Guaranteed |
Test Specification Shock Test | DIN EN 50155 (VDE 0115-200):2008-03 |
Shock Protection Test Specification | DIN EN 50274 (VDE 0660-514):2002-11 |
Flammability Rating According To UL 94 | V0 |
Smoke Gas Toxicity NFPA 130 (SMP 800C) | Passed |
Surface Flammability NFPA 130 (ASTM E 162) | Passed |
Static Insulating Material Application In Cold | -60 C |
Test Specification Oscillation Broadband Noise | DIN EN 50155 (VDE 0115-200):2018-05 |
Calorimetric Heat Release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
Specific Optical Density Of Smoke NFPA 130 (ASTM E 662) | Passed |
Relative Insulation Material Temperature Index (Elec. UL 746 B) | 130 C |
Temperature Index Of Insulation Material (DIN EN 60216-1 (VDE 0304-21)) | 130 C |
