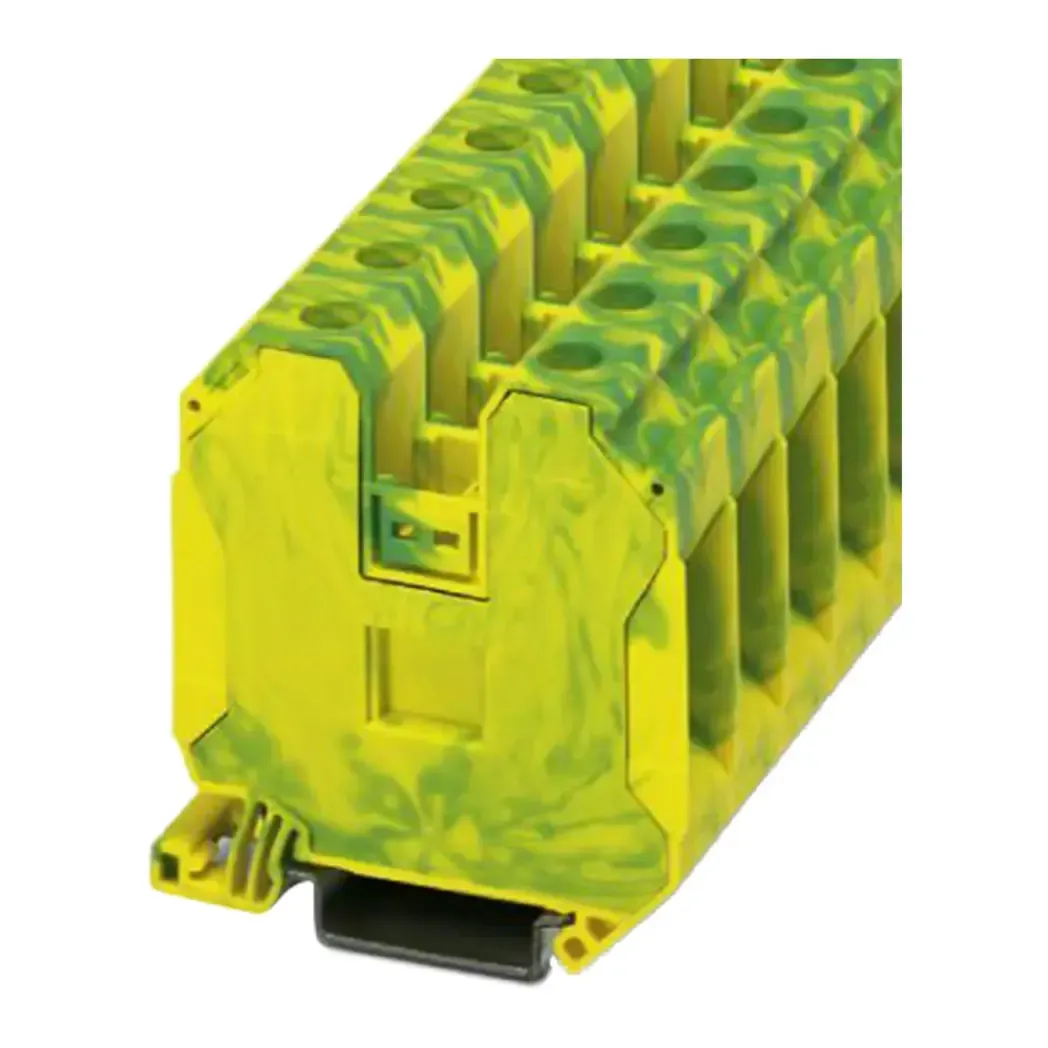

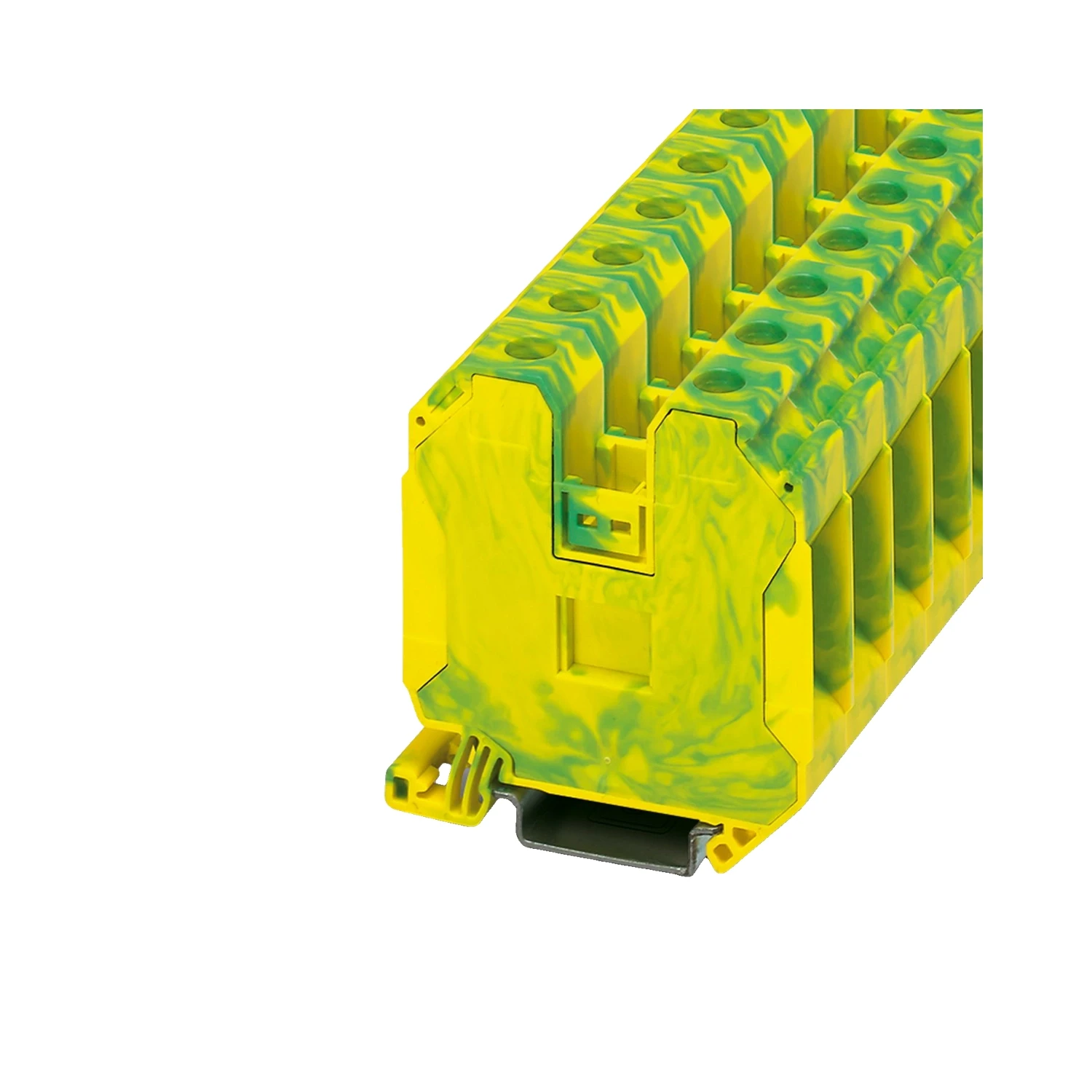

Phoenix Contact UT 35-PE 35mm² Earth Terminal Block Green Yellow 3044241
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3044241
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £6.54
Gross price
£7.85
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
PE terminal block from Phoenix Contact’s UT series. Screw connection with M6 thread, suited to 35mm² earth conductors in panel builds across machine, plant, and rail applications.
ATEX/IECEx certified (II 2 GD Ex eb IIC Gb) and rated to IEC 60947-7-2. Operating range down to -60°C makes it suitable for demanding environments.
- Conductor range: 1.5–35mm² rigid or flexible (14–2 AWG)
- Tightening torque: 3.2–3.7 Nm, stripping length 18mm
- Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail
- Overvoltage category III, pollution degree 3, rated surge voltage 8 kV
- UL 94 V-0 insulation, PA housing, green-yellow
