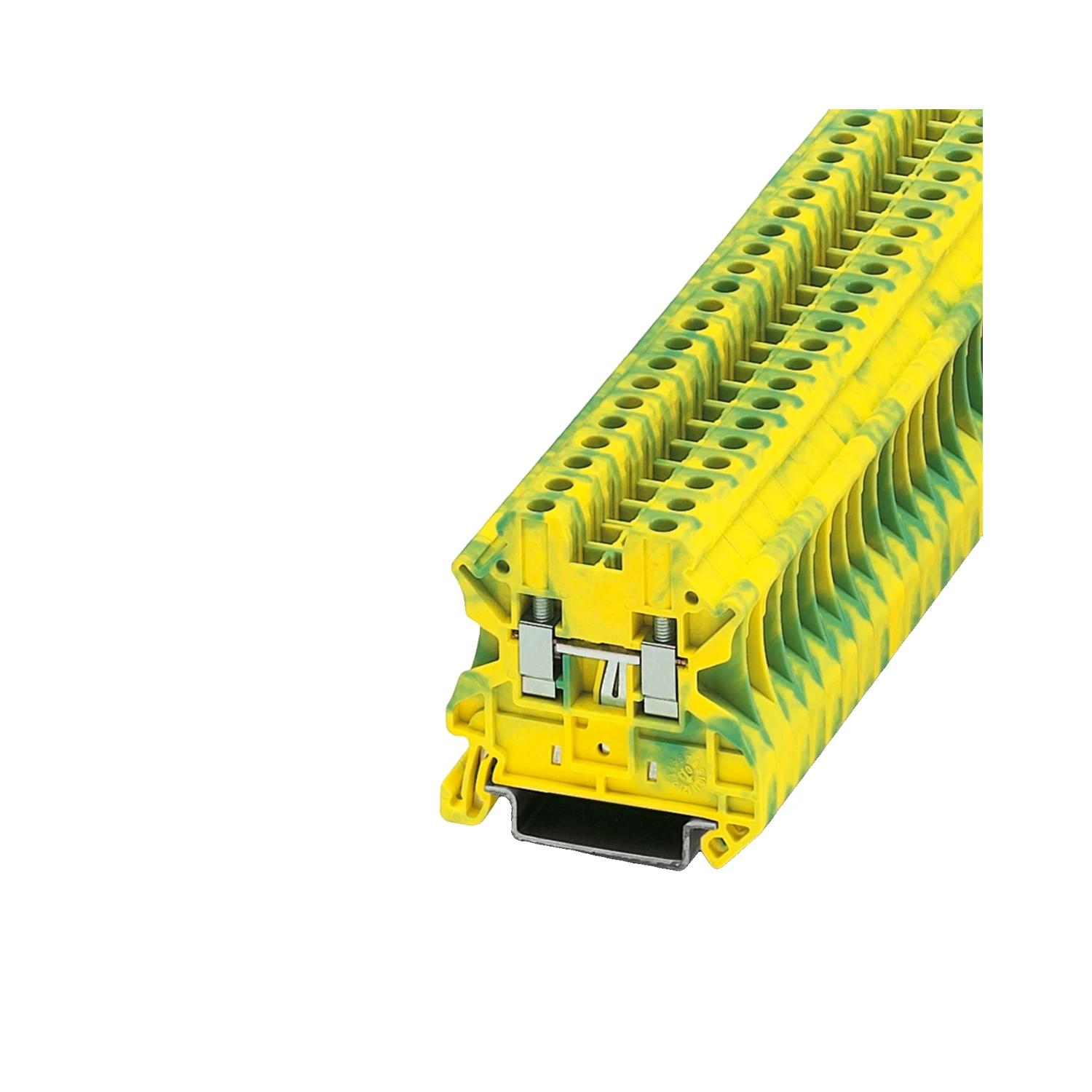

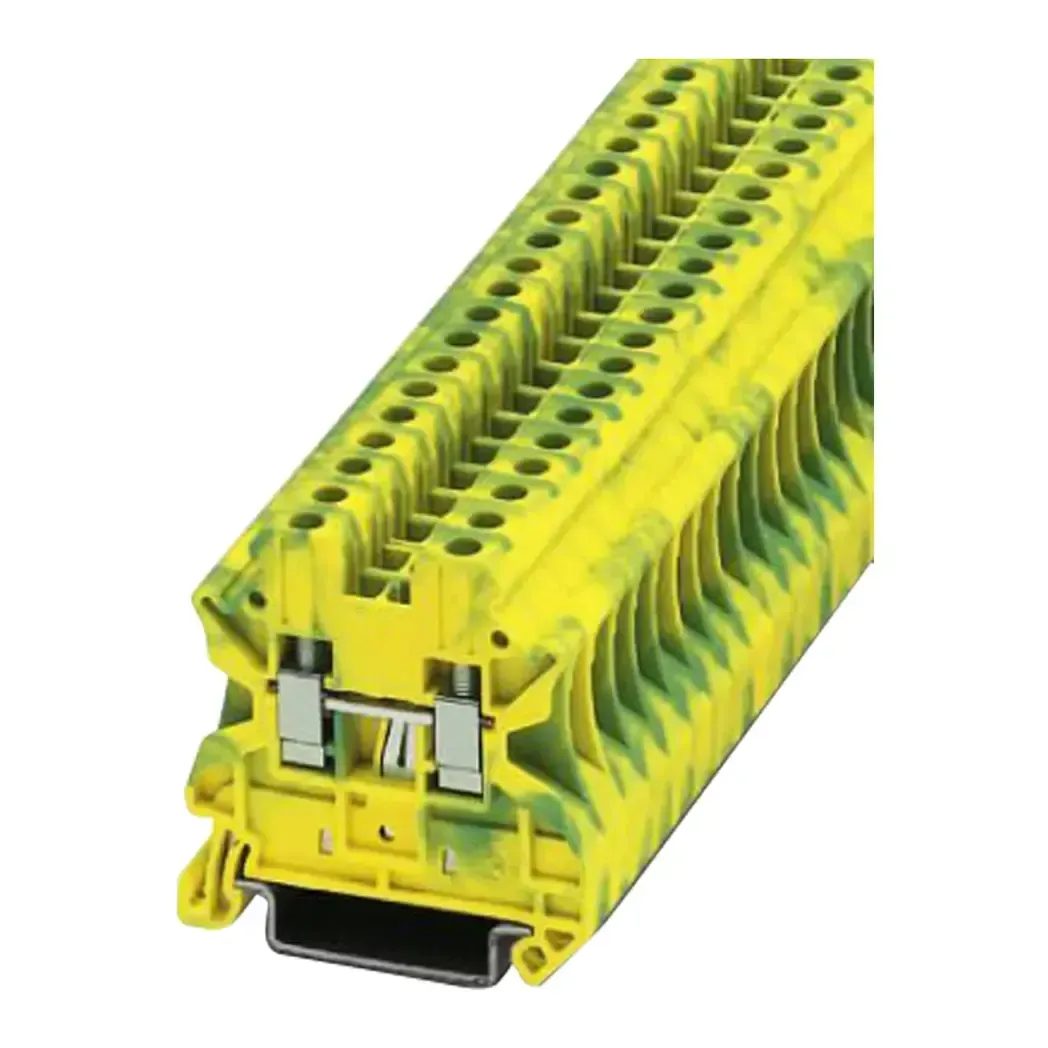

Phoenix Contact UT 4-PE Earth Terminal Block 4mm2 Green Yellow 3044128

Photo is representative

Phoenix Contact UT 4-PE Earth Terminal Block 4mm2 Green Yellow 3044128

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3044128
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £1.81

Gross price

£2.17

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Phoenix Contact UT 4-PE is a protective conductor (PE) terminal block from the UT series. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail with direct rail contact for grounding.

Screw connection via M3 thread with a tightening torque of 0.5–0.8 Nm. Accepts rigid and flexible conductors from 0.14 mm² up to 6 mm². ATEX/IECEx rated II 2 GD Ex eb IIC Gb — suitable for hazardous area panel builds.

  • Nominal cross-section: 4 mm²
  • Conductor range: 0.14–6 mm² (26–10 AWG)
  • Stripping length: 9 mm
  • Operating temp: -60 °C to +110 °C
  • Flammability: UL 94 V-0, PA insulator
Specifications

Connection Method

Screw connection

Screw Thread

M3

Nominal Cross-Section

4 mm²

Conductor Cross-Section (rigid)

0.14 mm² – 6 mm²

Conductor Cross-Section (flexible)

0.14 mm² – 6 mm²

Conductor Cross-Section (ferrule with sleeve)

0.14 mm² – 4 mm²

Cross-Section AWG

26 – 10

Tightening Torque

0.5 – 0.8 Nm

Stripping Length

9 mm

Rated Surge Voltage

8 kV

Overvoltage Category

III

Mounting Type

NS 35/7.5, NS 35/15

Width

6.2 mm

Height

47.7 mm

Depth

46.9 mm

Operating Temperature

-60 °C – 110 °C

Colour

Green-yellow

Insulating Material

PA

Flammability Rating

UL 94 V-0

Standard

IEC 60947-7-2

Ex Identification

II 2 GD Ex eb IIC Gb

Documents

datasheet Phoenix Contact 3044128 Datasheet
