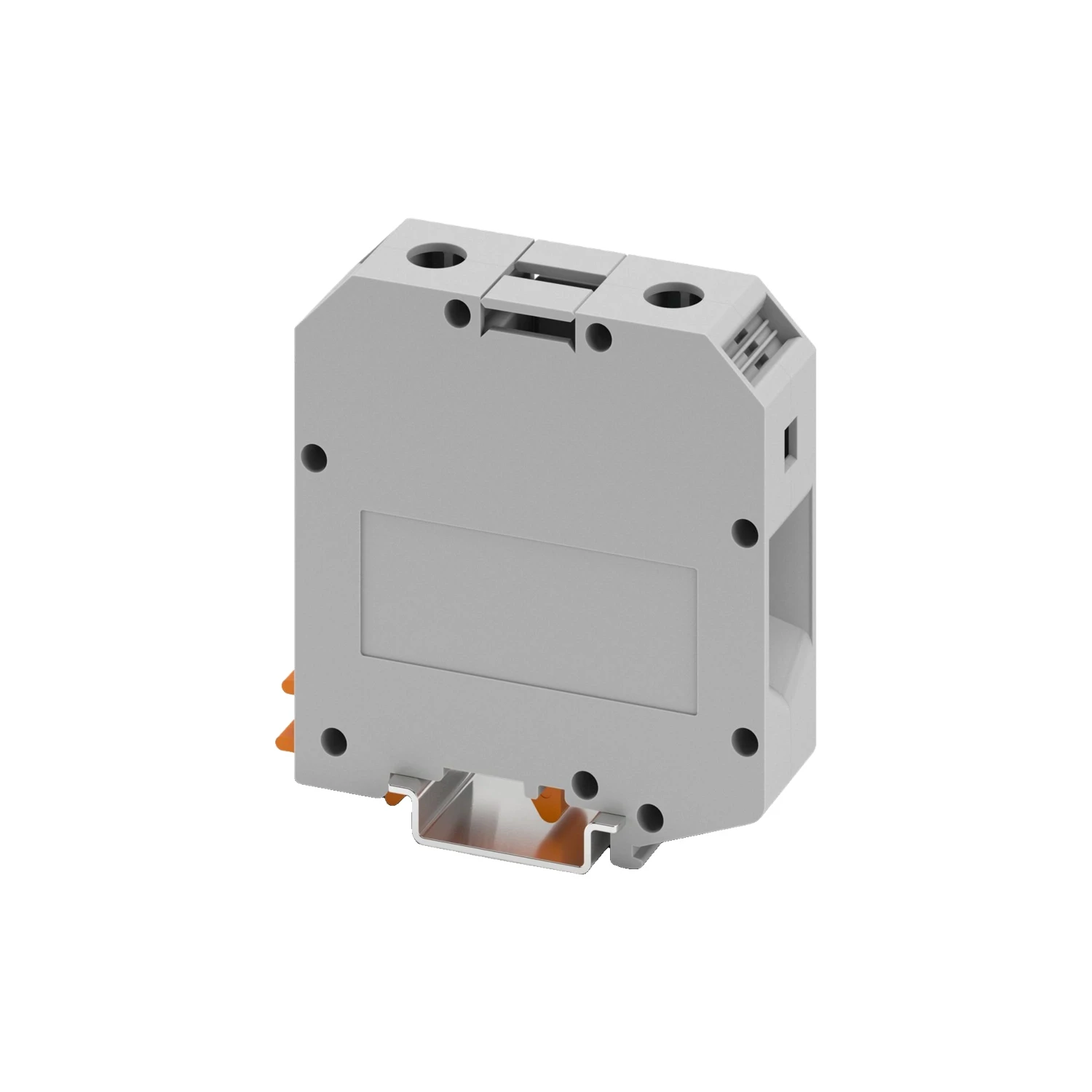

Phoenix Contact UKH 50 High-Current Screw Terminal Block 1000V 150A Grey
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3009118
GTIN
—
Stock status:
In stock
priced individually
Net price: £10.24
Gross price
£12.28
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

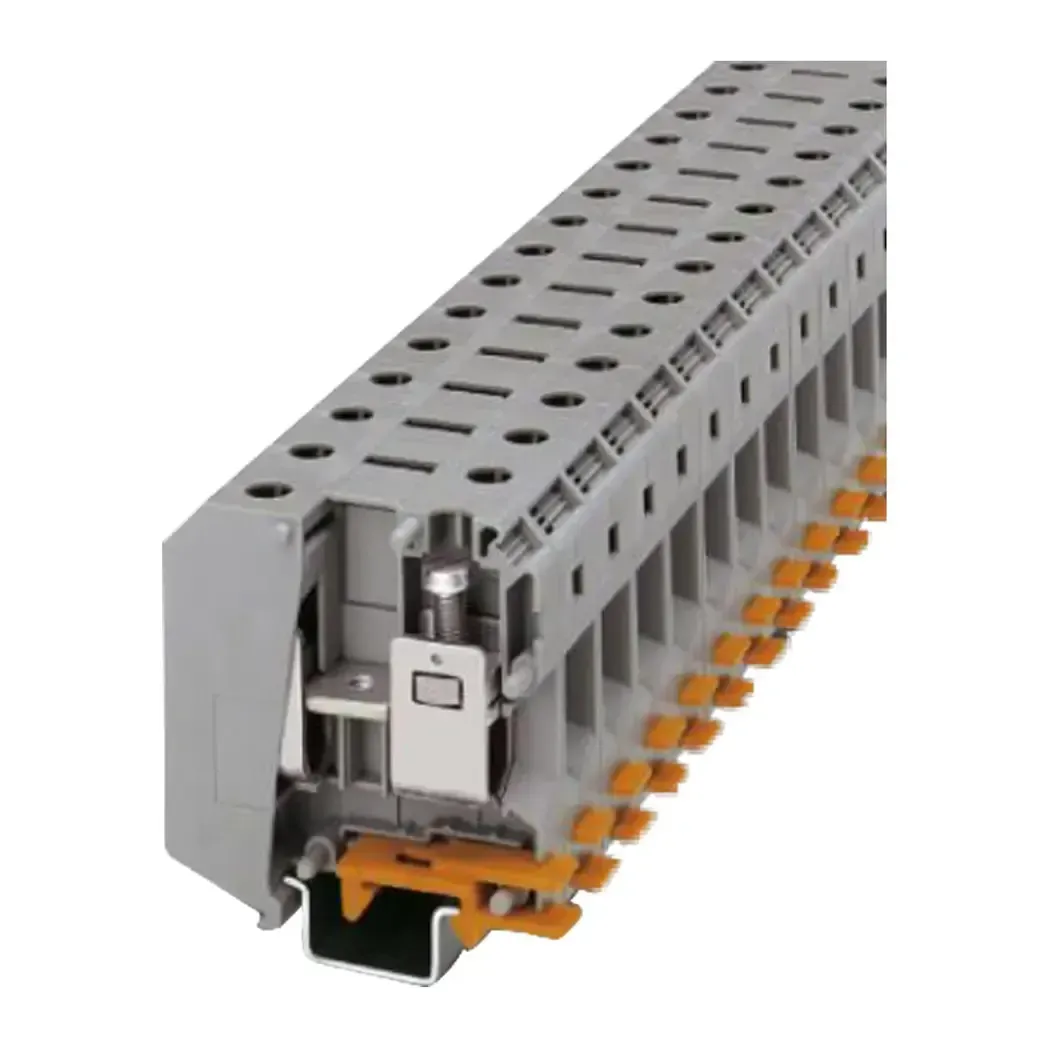

The UKH 50 is a high-current feed-through terminal block from Phoenix Contact, designed for screw connection of large-section conductors in heavy-duty panel builds. Rated 150A at 1000V, it takes rigid cable from 16–70mm² and flexible from 25–70mm². M6 screw with 6–8Nm torque. Clips to NS 35⁄7.5, NS 35⁄15, and NS 32 DIN rail.
ATEX/IECEx rated (II 2 GD Ex eb IIC Gb) — suitable for hazardous area installations.
- Nominal cross-section: 50mm²
- Rigid conductor range: 16–70mm²
- Flexible conductor range: 25–70mm²
- Stripping length: 24mm
- Short-time withstand current: 6kA (50mm²)
- Operating temperature: -60°C to +110°C
