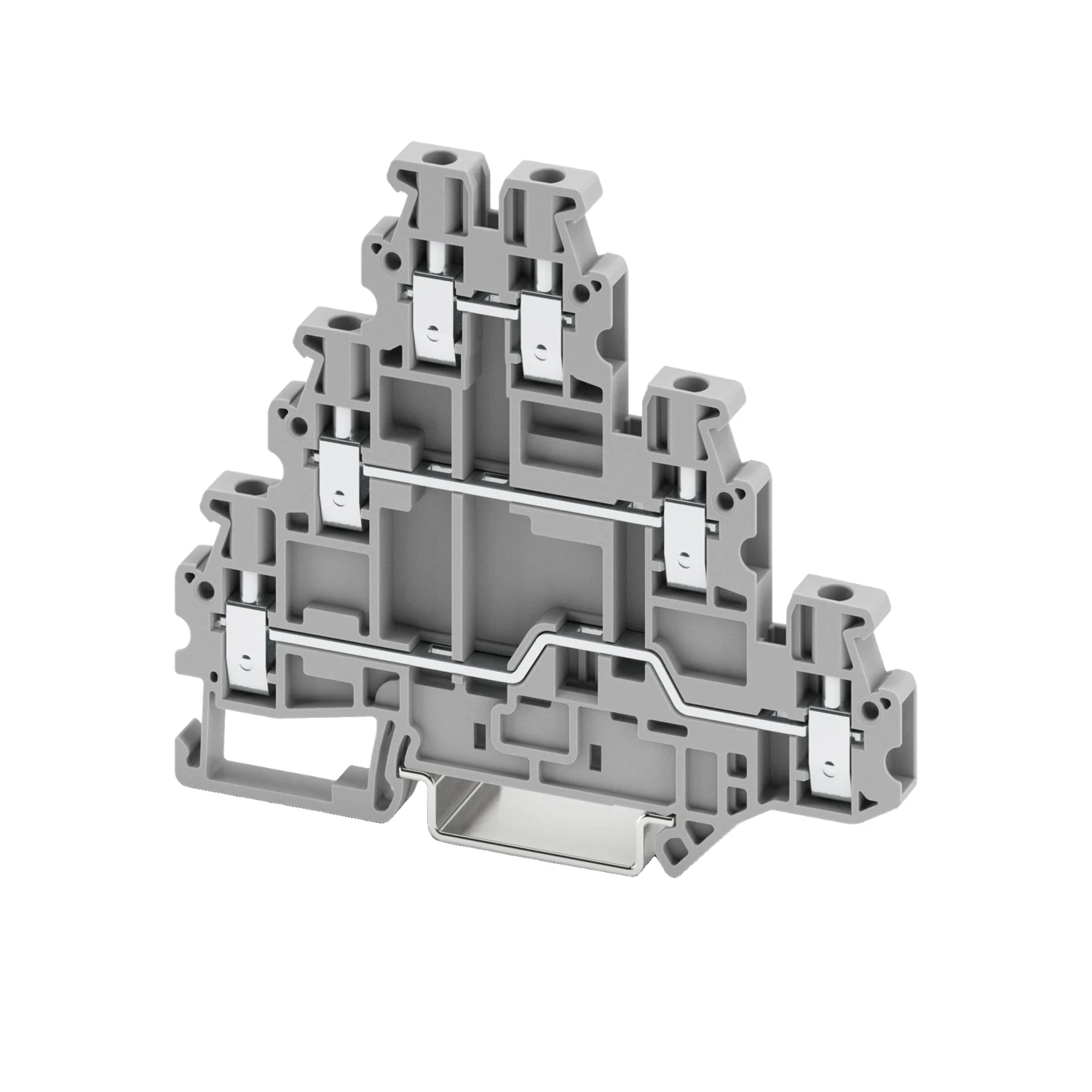

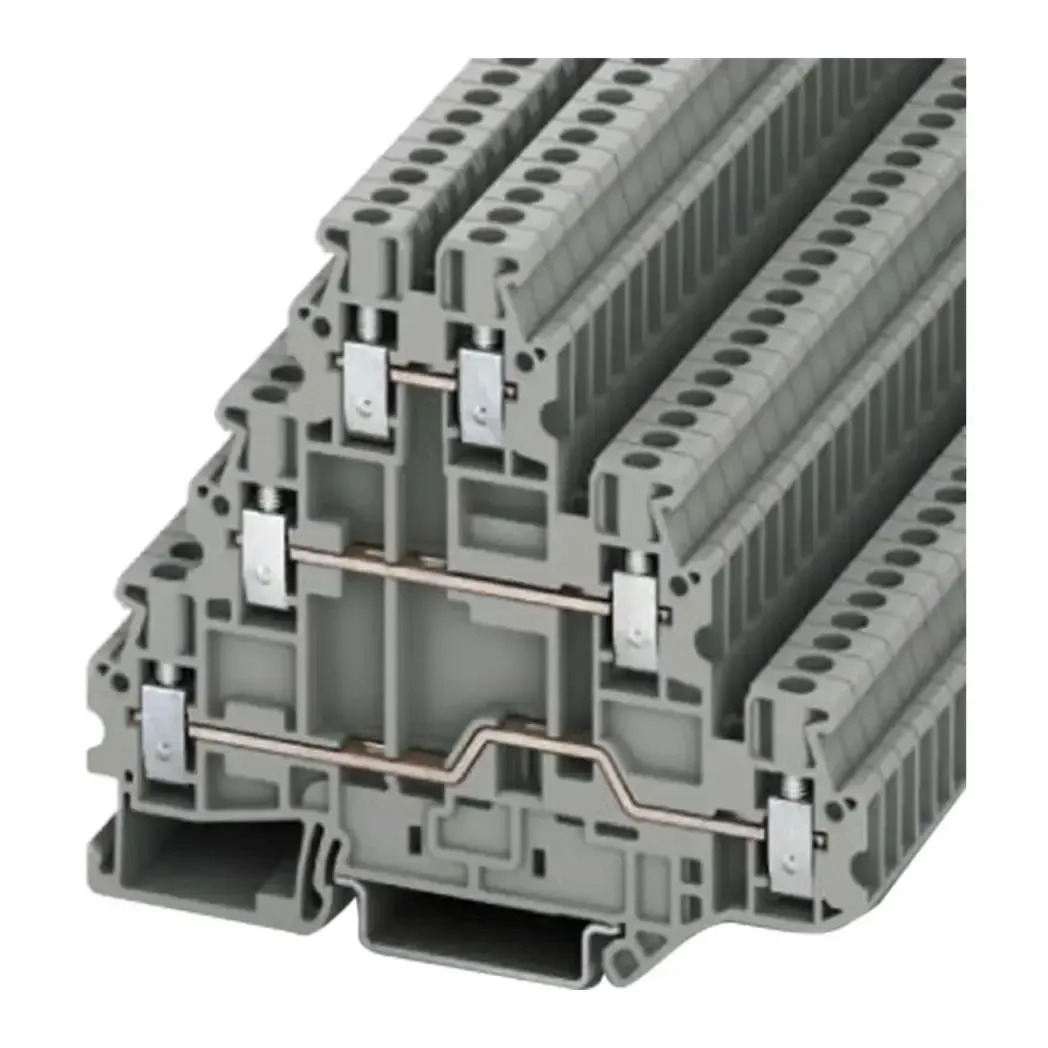

Phoenix Contact UT 2.5-3L Triple Deck Feed-Through Terminal Block 500V Grey 3214259
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3214259
GTIN
—
Stock status:
In stock
priced individually
Net price: £3.35
Gross price
£4.02
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Triple-deck feed-through terminal block from Phoenix Contact’s UT range. Three independent levels, each with two screw connections — six connections in a single 5.2 mm wide block. Designed for high-density panel builds where circuit separation across multiple levels saves rail space.
Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. M3 screw connection with 0.5–0.6 Nm torque. Polyamide insulator rated UL 94 V-0.
- 500 V nominal / 6 kV surge, 19 A nominal (2.5 mm²), 24 A max (4 mm²)
- Conductor range: 0.14–4 mm² rigid or flexible, 0.14–2.5 mm² with ferrule
- 9 mm strip length, M3 screw thread
- Operating temp: -60 °C to +110 °C
- Width: 5.2 mm, Height: 90 mm
