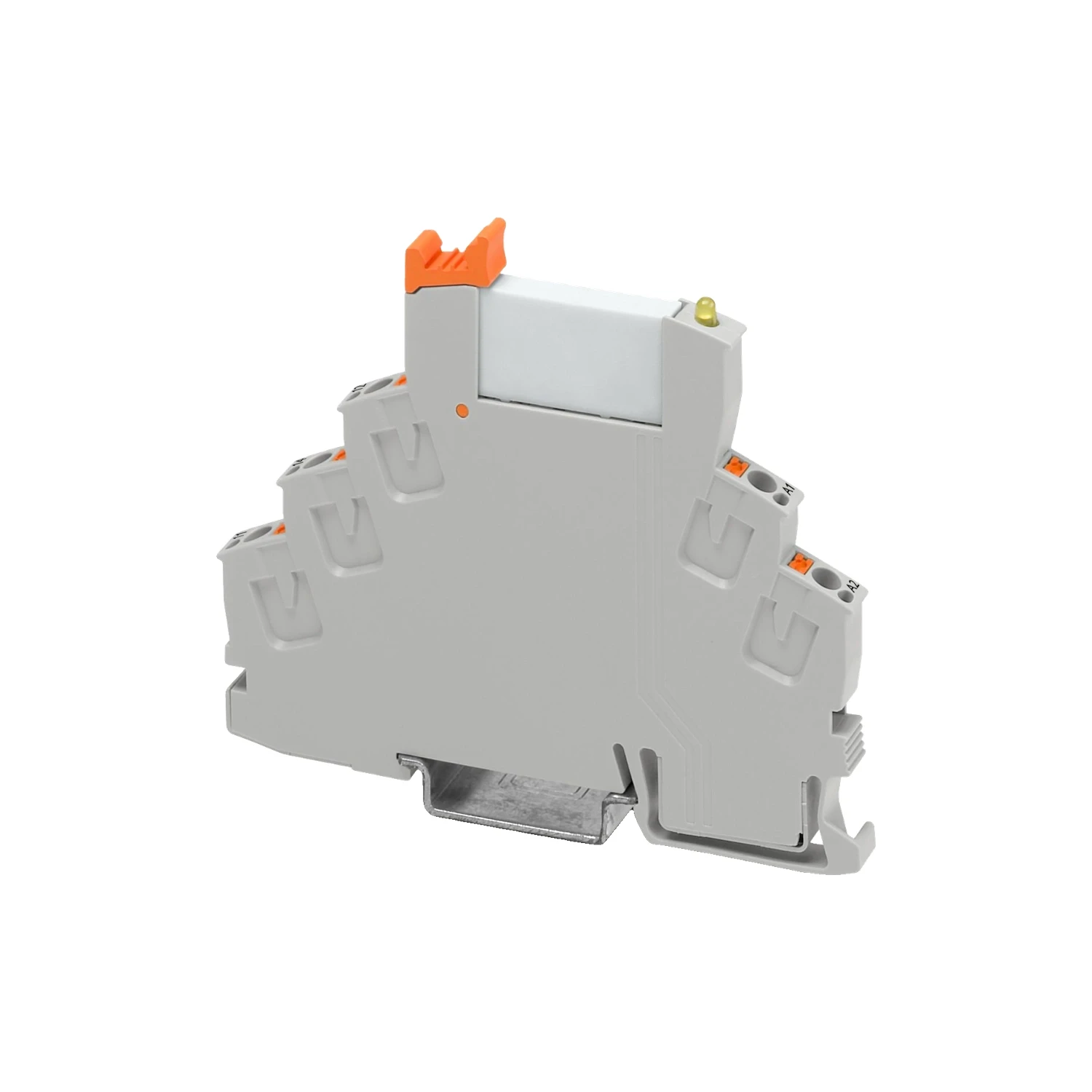

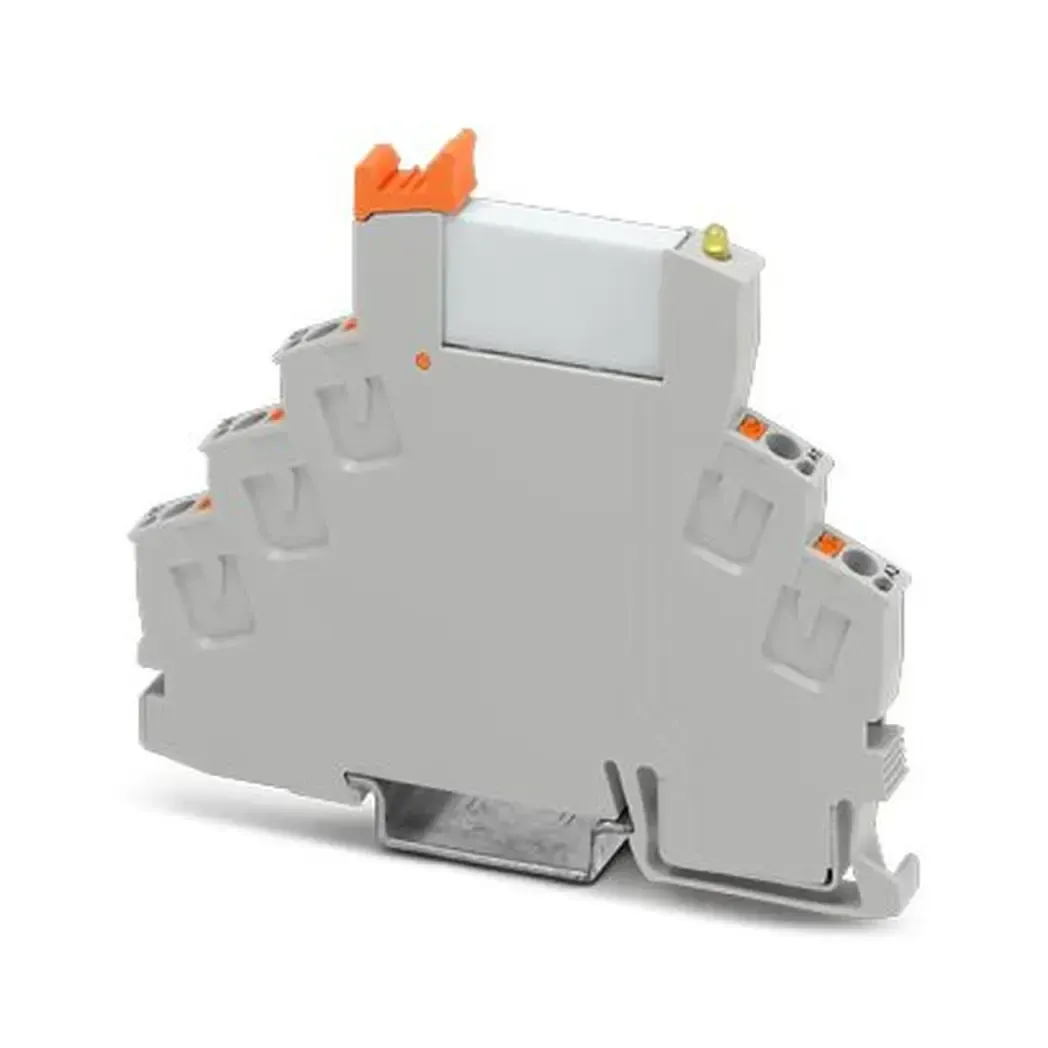

Phoenix Contact RIF-0-RPT-24DC/21 24VDC Push-In DIN Rail Relay Module 6A
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
2903370
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £11.45
Gross price
£13.74
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Preassembled relay module from the Phoenix Contact RIFLINE complete range. Combines the RIF-0-BPT/21 relay base with a REL-MR-24DC/21 plug-in miniature power relay — supplied ready to mount on NS 35⁄7.5 DIN rail with zero spacing between units.
Coil runs at 24V DC with a freewheeling diode for protection and a yellow LED for operating voltage indication. Contact is AgSnO, rated to 6A continuous with max switching voltage of 250V AC/DC.
- Push-in connection, 0.14–1.5 mm² (24–16 AWG), 8 mm strip length
- Input voltage range: 19.2–36V DC at 20°C
- Safe isolation, overvoltage category III, pollution degree 2
- IP20, ambient operating range -40°C to +60°C
- Mounting position: any
