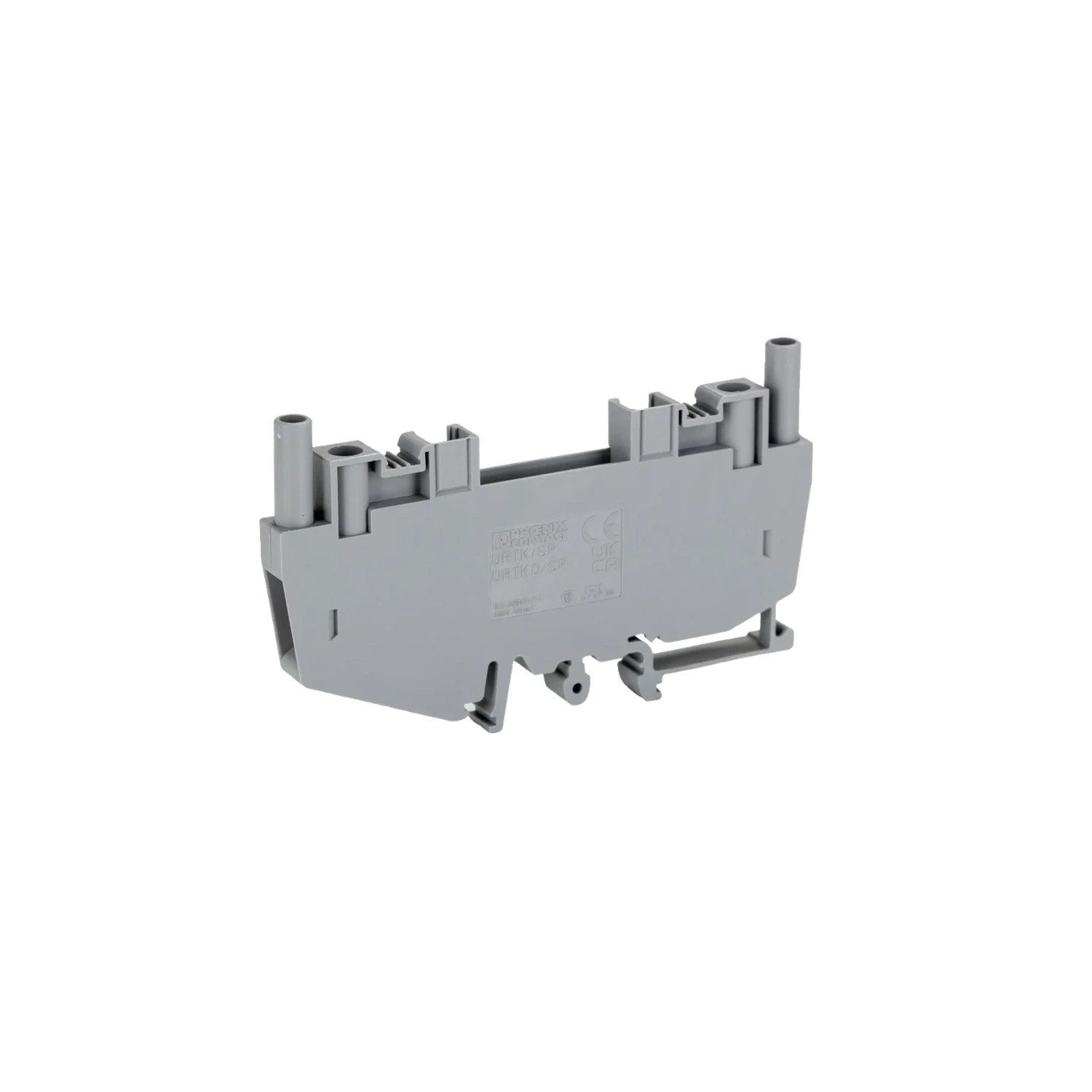

Phoenix Contact 0311126 Terminal Slide Connector for URTK SP 0.5 10mm Blocks Gray

Photo is representative

Phoenix Contact URTK SP Slide Connector for 0.5 10mm Terminal Blocks 0311126

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 0311126
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £6.29

Gross price

£7.55

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Slide connector for linking Phoenix Contact URTK/SP test disconnect terminal blocks rated 0.5–10 mm². Screw connection via M4 thread.

Compatible across the URTK/SP range for potential distribution between blocks in distribution panels up to 500 V.

  • Nominal voltage: 500 V
  • Nominal current: 41 A
  • Conductor cross-section: 0.5–10 mm² (rigid), 0.5–6 mm² (flexible)
  • Mounting: NS 35⁄7.5, NS 35⁄15, NS 32
  • Colour: Gray (RAL 7042)
Specifications

Nominal Voltage

500 V

Nominal Current

41 A

Max Load Current

50 A (with 10 mm² conductor)

Rated Surge Voltage

6 kV

Overvoltage Category

III

Connection Method

Screw connection

Screw Thread

M4

Tightening Torque

1.5–1.8 Nm

Conductor Cross-Section (rigid)

0.5–10 mm²

Conductor Cross-Section (flexible)

0.5–6 mm²

AWG Range

20–8 (rigid), 20–10 (flexible)

Stripping Length

11 mm

Connection Standard

IEC 60947-7-1

Mounting Type

NS 35/7.5, NS 35/15, NS 32

Width

8.2 mm

Height

99.5 mm

Depth on NS 35/7.5

59 mm

Depth on NS 35/15

66.5 mm

Depth on NS 32

64 mm

Colour

Gray (RAL 7042)

Insulating Material

PA

Flammability Rating

UL 94 V-0

Operating Temperature

-60 °C to 110 °C

Storage Temperature

-25 °C to 60 °C

Degree of Pollution

3

Documents

datasheet Phoenix Contact 0311126 Datasheet
