Phoenix Contact ZB 6 Terminal Marker Strip 51-60 White Horizontal Latching

Photo is representative

Phoenix Contact ZB 6 Terminal Marker Strip 51-60 White Horizontal Latching

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 10510160051
GTIN —
Stock status: 5 in stock

priced individually

Net price: £6.79

Gross price

£8.15

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

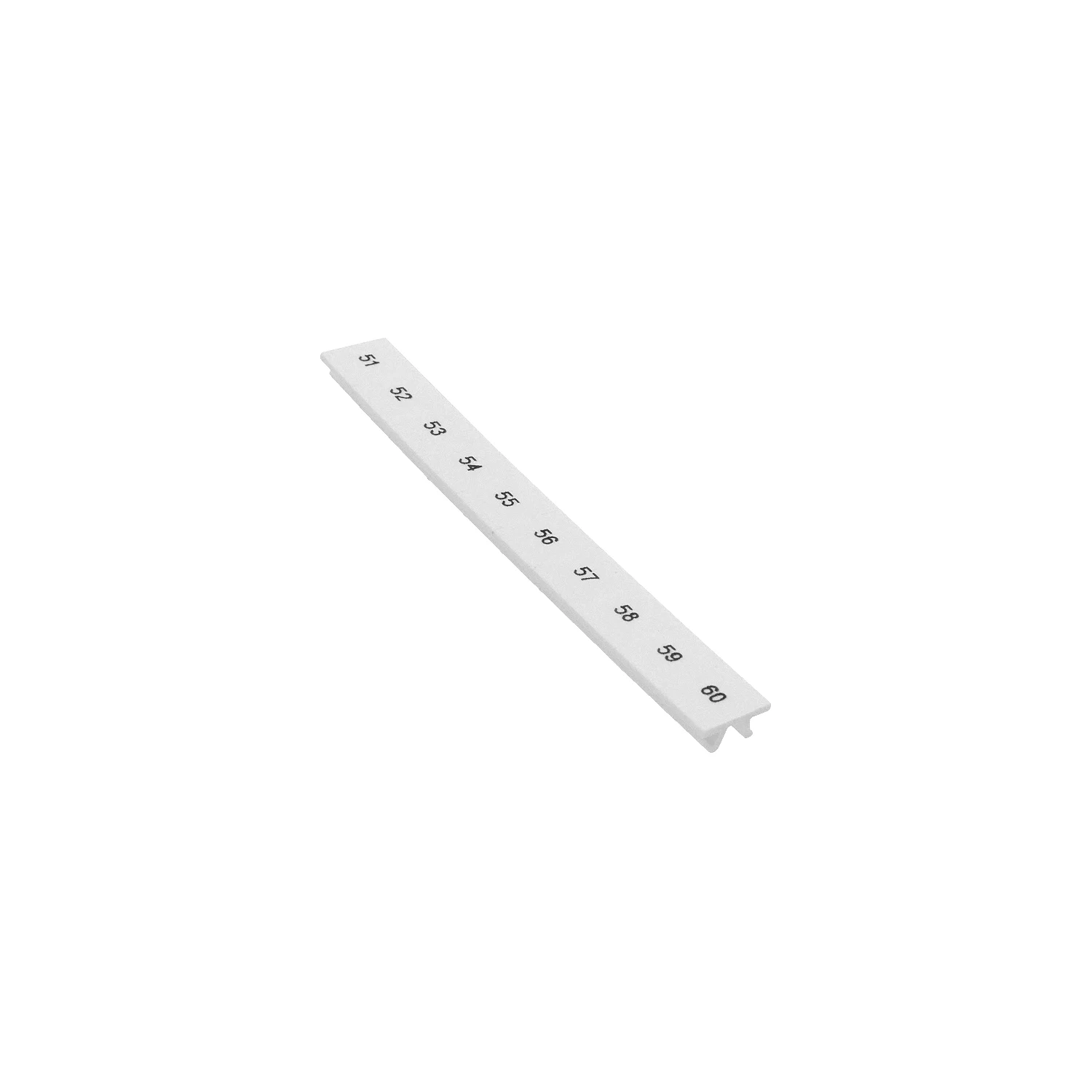

Phoenix Contact ZB 6 Zack marker strip for horizontal labelling of terminal blocks. Pre-printed 51 through 60, latching mount, fits 4 mm terminal series.

PA construction, halogen and silicone free. White (RAL 9010) with high slot type for secure seating on the terminal.

  • Pitch: 6.2 mm
  • Text field: 6.15 mm W × 10.50 mm H
  • Temp range: -40 °C to 100 °C
  • Flammability: UL 94 V2
  • Wipe resistance: DIN EN 61010-1
Specifications

Marking

51 ... 60

Pitch

6.2 mm

Mounting Type

Latching

Slot Type

High

Colour

White (RAL 9010)

Material

PA

Width

6.15 mm

Height

10.5 mm

Depth

4.20 mm

Text Field Width

6.15 mm

Text Field Height

10.50 mm

Flammability Rating

UL 94 V2

Operating Temperature

-40 °C ... 100 °C

Wipe Resistance Standard

DIN EN 61010-1 (VDE 0411-1)

Documents

datasheet Phoenix Contact 10510160051 Datasheet

Phoenix Contact
