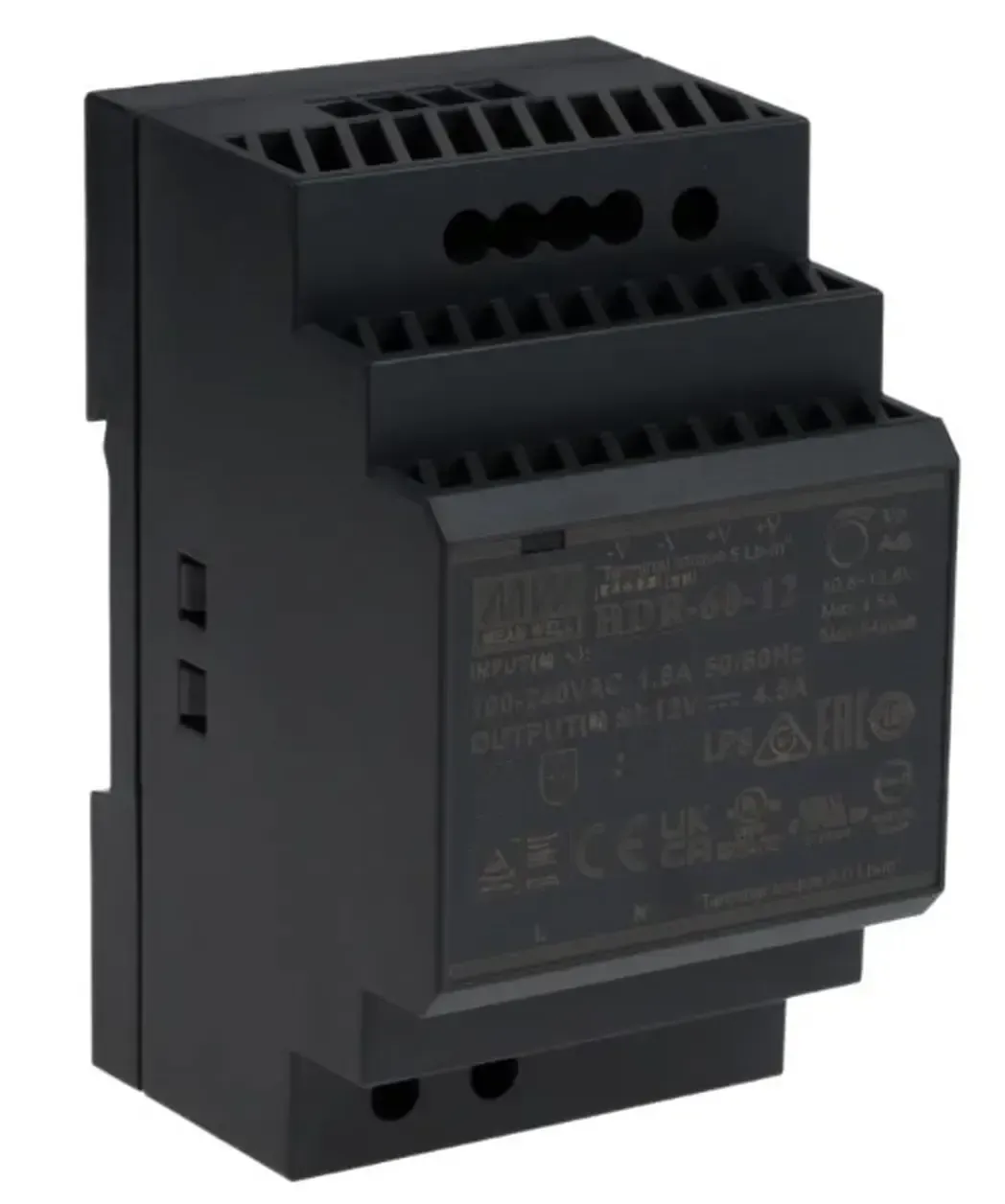

HDR6012 - Power Supply Unit 4.5A 12V DC DIN Rail Mount Meanwell

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

Power Supply Unit 4.5A 12V DC DIN Rail Mount Meanwell

The Power Supply Unit 4.5A 12V DC DIN Rail Mount Meanwell is a small and compact switch mode power supply with an output voltage of 12V dc and output current of 4.5A. It is designed for mounting on DIN rail and meets standards such as RoHS, TUV EN 60950-1, and UL 508. With load regulation of 1% and a wide output voltage adjustment range of 10.8-13.8V, this power supply unit is reliable and efficient for various electrical applications.

Stock Code HDR6012
Few in stock
Price 54.58 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    HDR6012

  • MTBF

    927.6kh

  • Type

    Switch Mode

  • Depth

    54.5mm

  • Width

    52.5mm

  • Height

    90mm

  • Series

    HDR

  • Power Rating

    54W

  • Mounting Type

    DIN Rail Mount

  • Standards Met

    RoHS Compliant, TUV EN 60950-1, UL 508

  • Output Current

    4.5A

  • Output Voltage

    12V DC

  • Load Regulation

    1%

  • Electrical Phase

    1

  • Ripple And Noise

    120mV Pk-Pk

  • Special Features

    Small & Compact

  • Maximum Temperature

    +70°C

  • Minimum Temperature

    -30°C

  • Output Voltage Adjustment Range

    10.8-13.8V
