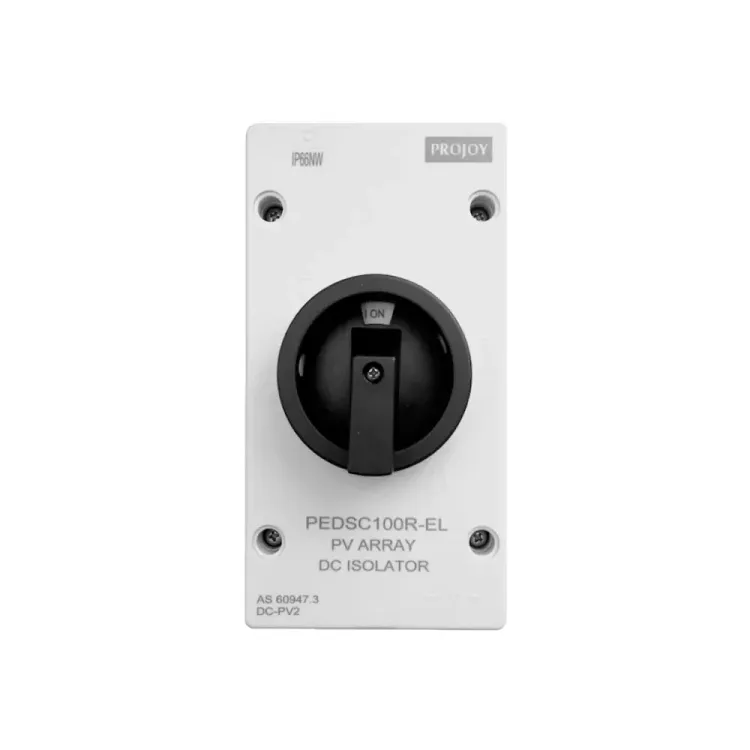

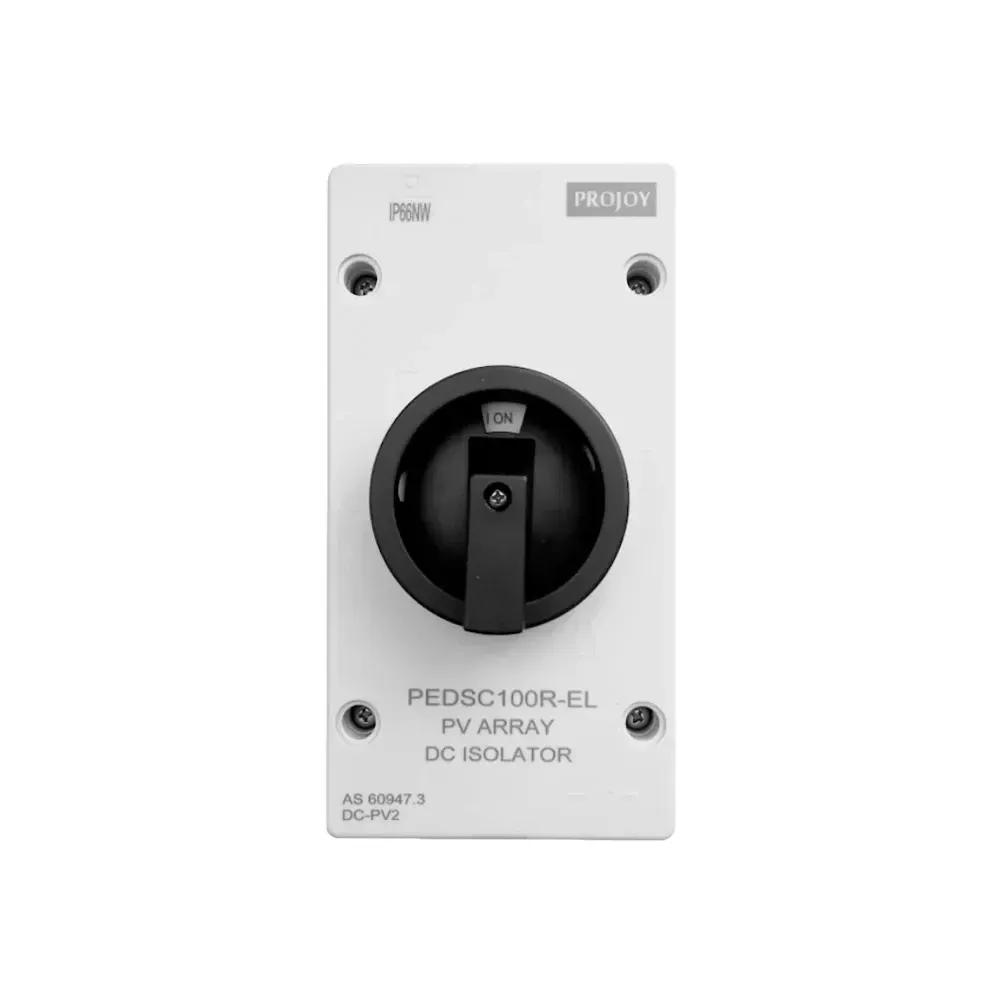

Projoy PEDSC100R-EL32R-4 4-pole DC isolator for solar PV systems

Photo is representative

Projoy 32A 4-Pole DC Isolator for Solar PV Systems, IP66

Product Information

Stock Code -PEDSC100R-EL32R-4
GTIN —
Stock status: Out of stock

priced individually

Net price: £23.80

Gross price

£28.56

The Projoy PEDSC100R-EL32R-4 is a high-performance DC isolator specifically engineered for solar photovoltaic (PV) applications. This robust 4-pole isolator delivers exceptional reliability and versatility in outdoor and industrial environments. Designed to meet the demanding requirements of solar power systems, it offers superior protection with its IP66 rating and ability to withstand harsh conditions.

  • High insulation voltage of DC 1500V
  • Suitable for solar PV power supply isolation
  • Multiple mounting options (panel, DIN rail, enclosure)
  • Extreme temperature operation from -40°C to +70°C
  • Advanced energy storage spring for quick switching
Specifications

Type

4-Pole DC Isolator

Model

PEDSC100R-EL32R-4

Rated Current

32A

Insulation Voltage

DC 1500V

Protection Rating

IP66

Temperature Range

-40°C to +70°C

Mechanical Life

10,000 operations

Electrical Life

1,000 operations

Mounting Options

Panel, DIN rail, Enclosure

Application

Solar PV Systems

Flame Retardant

Yes
