ESPRHD2 - Rate of Rise Heat Detector C/W (Diode) Base 24V ESP ESPRHD2

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

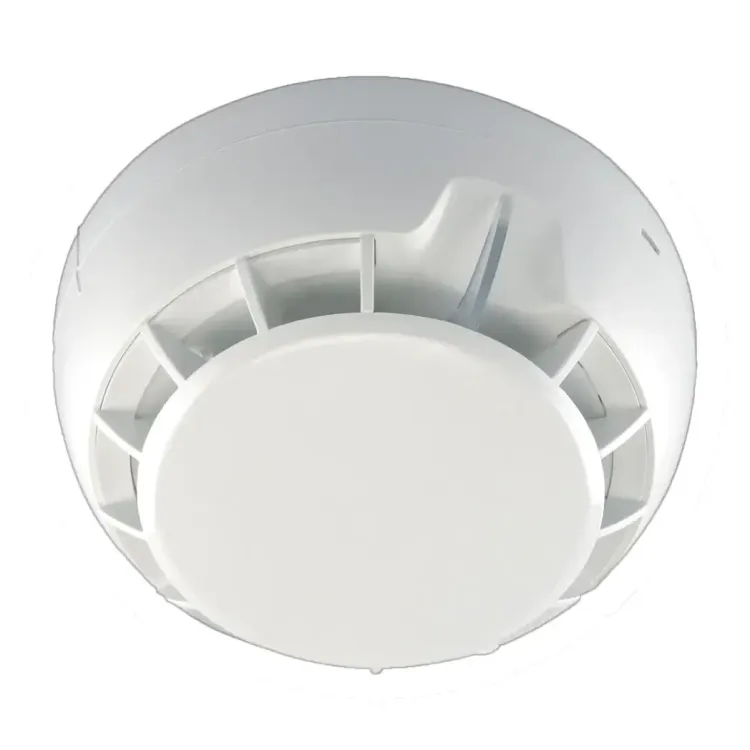

Rate of Rise Heat Detector C/W (Diode) Base 24V ESP ESPRHD2

The Rate of Rise Heat Detector ESPRHD2 is designed to detect temperatures above 58°C or rapid changes in temperature, featuring a low profile design, LED indication, and sensor status indication. Suitable for conventional systems, it operates at 9-30VDC with minimal standby and alarm current consumption. Ideal for applications requiring EN54-5 Class A1R approval.

Stock Code ESPRHD2
Out of stock

Product Features

  • Sku

    ESPRHD2

  • Type

    Conventional

  • Approval

    EN54-5 Class A1R

  • Wire Gauge

    0.4mm - 2.0mm TWIN

  • Test Facility

    Heat Source

  • Operating Voltage

    9 - 30VDC

  • Alarm Current @ 24v

    49mA

  • Operating Temperature

    -10 C to 60 C

  • Standby Current @ 24v

    < 60 A
