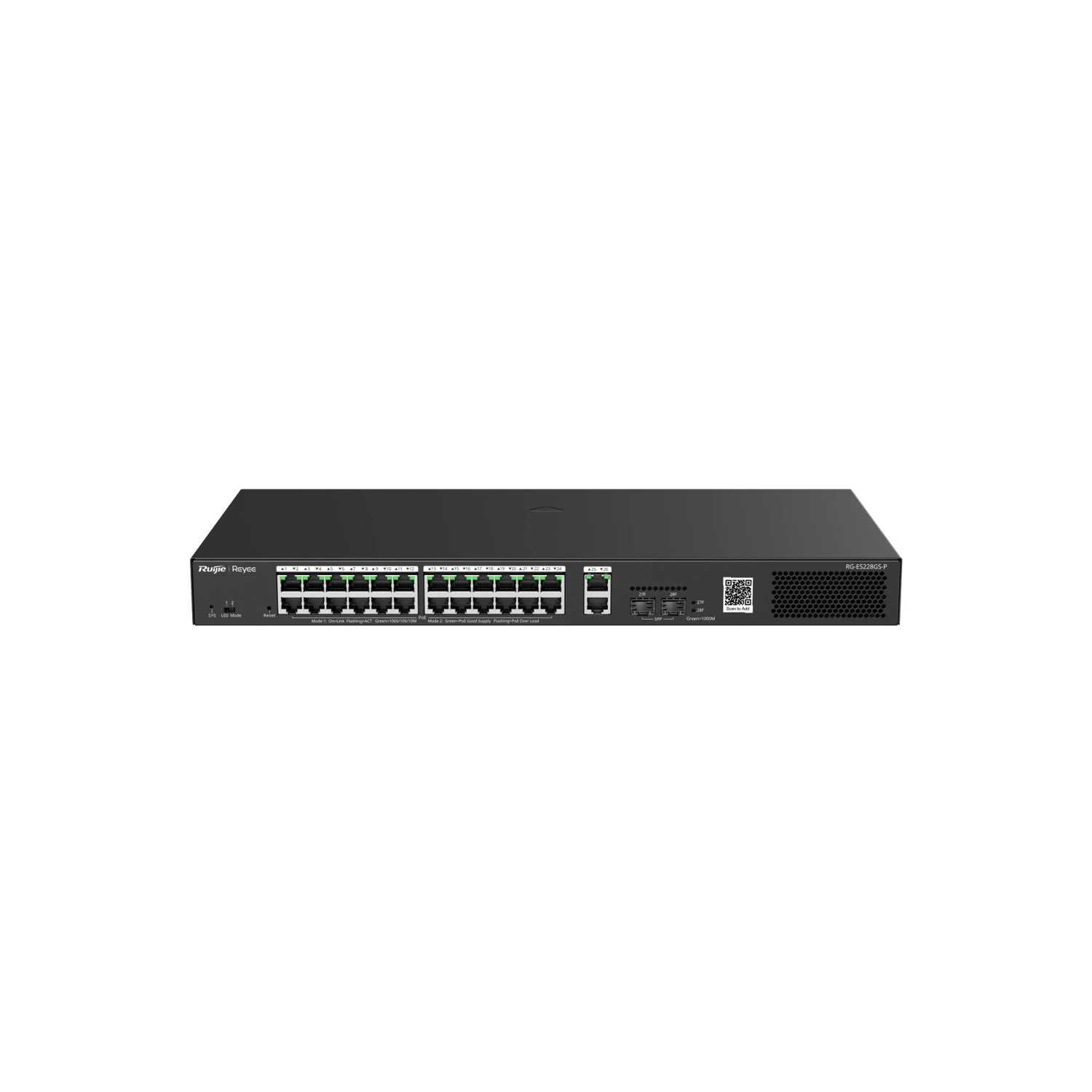

Reyee RG-ES228GS-P 28 Port Gigabit Smart PoE+ Switch 2 SFP 370W 220V AC

Photo is representative

Reyee RG-ES228GS-P 28 Port Gigabit Smart PoE+ Switch 2 SFP 370W 220V AC

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RG-ES228GS-P
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £291.15

Gross price

£349.38

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

28-port Layer 2 smart switch from Reyee. Designed for small-to-medium business networks and CCTV installs where PoE+ and centralised cloud management are needed.

24 ports deliver PoE/PoE+ (802.3af/at) with a 370W total budget. Two RJ45 uplinks and two 1GE SFP ports handle your uplink or fibre runs. Managed via eWeb, Ruijie Cloud, or the Reyee App. Rack-mounts in 1U — brackets included.

  • 56 Gbps switching capacity, 41.6 Mpps forwarding rate
  • Max 16 VLANs (802.1Q), DHCP snooping, broadcast/multicast storm control
  • PoE watchdog, camera detection, inbound/outbound rate limiting
  • ESD protection: 8 kV air discharge, 6 kV contact
  • MTBF: 200,000 hours
Specifications

Total Ports

28 (26 x RJ45, 2 x 1GE SFP)

PoE Ports

24

PoE Standard

IEEE 802.3af/at (PoE/PoE+)

PoE Budget

370 W

Switching Capacity

56 Gbps

Forwarding Rate

41.6 Mpps

Power Input

100–240 V AC, 50–60 Hz

Max Power Consumption (full PoE)

400 W

Max Power Consumption (no PoE)

25 W

Mounting

Rack-mount 1U (19")

Dimensions (W x D x H)

440 x 214.9 x 44 mm

Weight (unit)

2.84 kg

Operating Temperature

0°C to 40°C

MTBF

200,000 hours

ESD Protection (air discharge)

8 kV

Surge Protection (power connector)

±6 kV common mode and differential mode

Max VLANs

16

Max MAC Address Entries

8000

Jumbo Frame (MTU)

10,000 bytes

Certification

CE, FCC

Safety Compliance

EN 62368-1

Warranty

3 years

Documents

datasheet RG-ES228GS-P Datasheet
