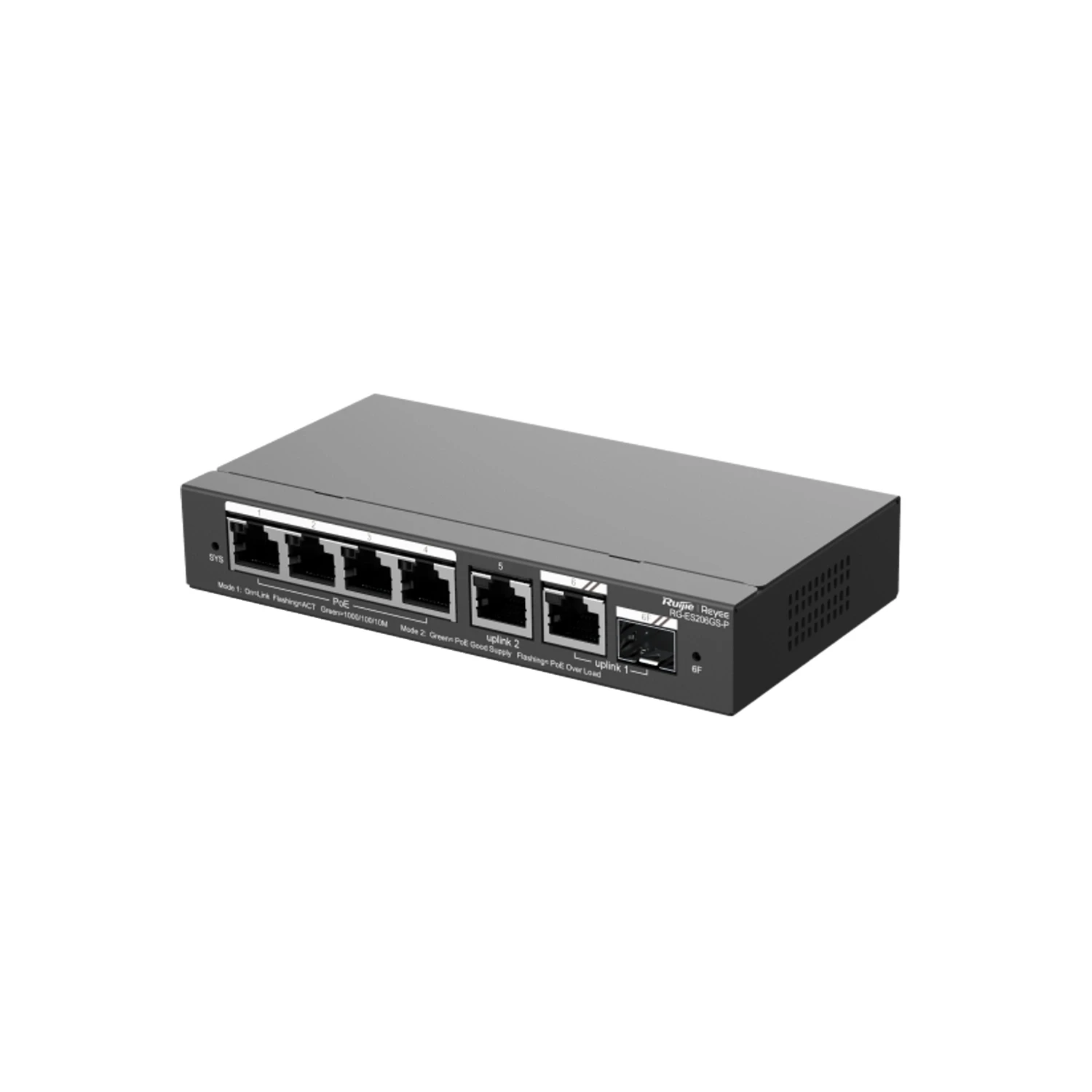

Reyee RG-ES206GS-P 6-Port Gigabit Smart PoE Switch 54W with SFP

Photo is representative

Reyee RG-ES206GS-P 6-Port Gigabit Smart PoE Switch 54W with SFP

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RG-ES206GS-P
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £59.10

Gross price

£70.92

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Layer 2 managed PoE switch with cloud management via Ruijie Cloud or Reyee App. Six Gigabit RJ45 ports with four PoE/PoE+ outputs (IEEE 802.3af/at) and one SFP combo port. Fanless metal housing for wall or desk mount.

Supports camera detection, PoE watchdog, VLAN (up to 16), broadcast/multicast storm control, and DHCP snooping. Managed via eWeb or Ruijie Cloud — no SNMP.

  • 54W PoE budget across 4 ports
  • 12 Gbps switching capacity, 8.9 Mpps forwarding rate
  • 9216-byte jumbo frame support
  • ESD protection: 8 kV air discharge, 6 kV contact discharge
  • Surge protection: ±6 kV service port, ±4 kV power connector
Specifications

PoE Standard

IEEE 802.3af/at (PoE/PoE+)

PoE Ports

4

PoE Budget

54 W

Total RJ45 Ports

6 x 10/100/1000BASE-T

SFP Ports

1 x 1GE SFP (combo)

Switching Capacity

12 Gbps

Forwarding Rate

8.9 Mpps

Max VLANs

16

Max MAC Entries

2000

Jumbo Frame (MTU)

9216 bytes

Input Voltage (Rated)

100–240 V AC, 50–60 Hz

Max Power Consumption (PoE Full Load)

60 W

Max Power Consumption (No PoE)

6 W

Mounting

Wall or desk mount

Casing

Metal, fanless

Dimensions (W x D x H)

148 x 78 x 26 mm

Weight (without packaging)

0.31 kg

Operating Temperature

0°C to 40°C

Storage Temperature

-40°C to +70°C

Operating Humidity

10% to 90% RH (non-condensing)

ESD Protection (Air Discharge)

8 kV

ESD Protection (Contact Discharge)

6 kV

Surge Protection (Service Port)

±6 kV common mode

Surge Protection (Power Connector)

±4 kV common mode, ±2 kV differential mode

MTBF

200,000 hours

Certifications

CE, FCC

Safety Compliance

EN 62638-1

EMC

EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 300 386

Warranty

3 years

Documents

datasheet RG-ES206GS-P Datasheet
