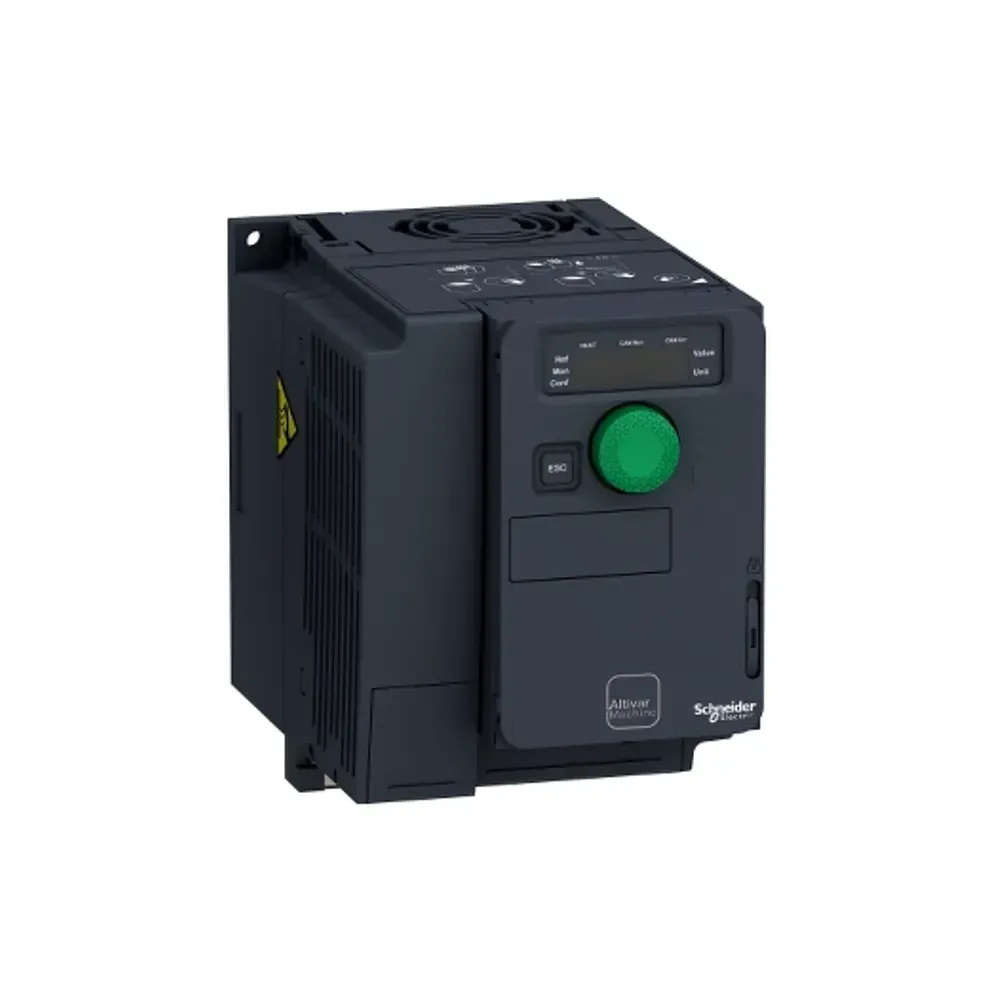

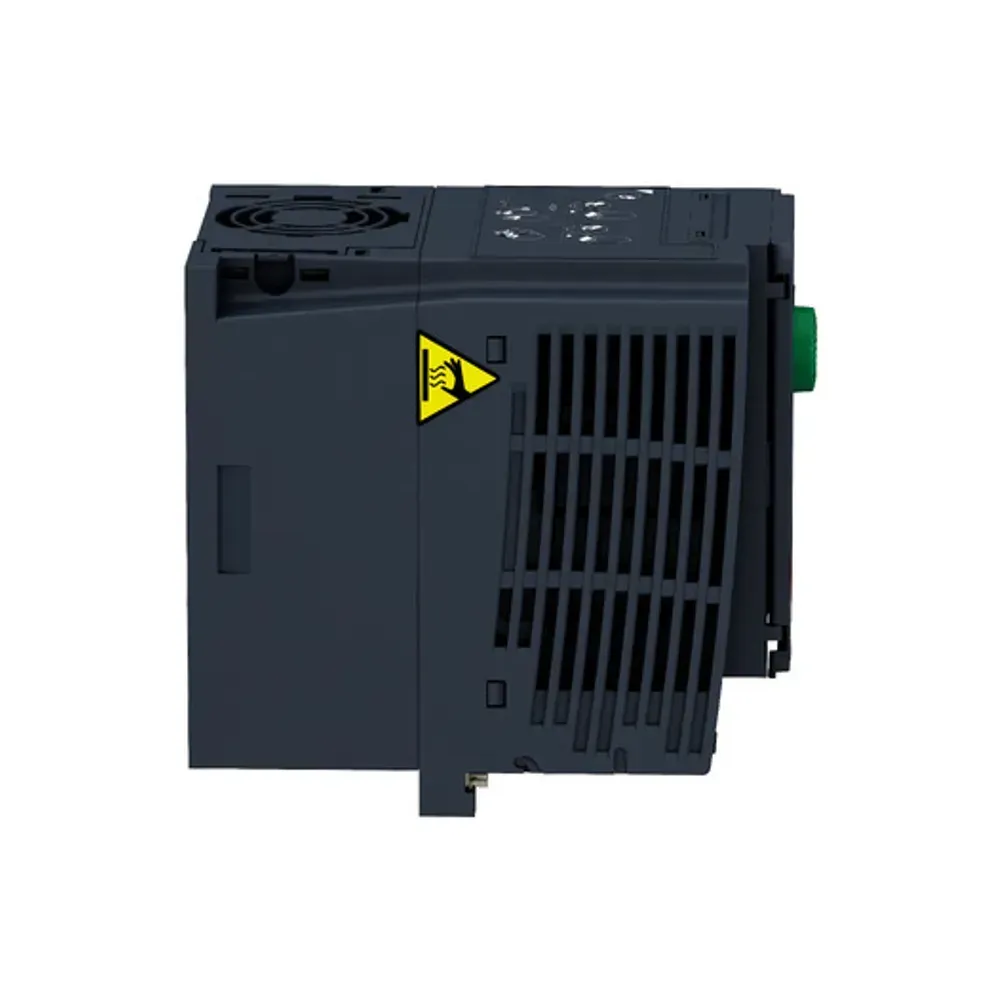

Schneider ATV320U15M2C Variable Speed Drive 1.5kW 230V Input 3PH Output
Schneider ATV320U15M2C Variable Speed Drive 1.5kW 230V Input 3PH Output
Schneider ATV320U15M2C Variable Speed Drive 1.5kW 230V Input 3PH Output
Schneider ATV320U15M2C Variable Speed Drive 1.5kW 230V Input 3PH Output

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Schneider 1.5kW IP20 Variable Speed Drive Altivar Machine

The Schneider Altivar Machine ATV320U15M2C is a compact 1.5kW variable speed drive designed for OEMs. It supports 1-phase 200–240V input and delivers 3-phase 380V output, ideal for complex machines and energy-efficient motor control in harsh industrial conditions.

Features include:

  • 1.5kW (2 HP) output power – Heavy duty
  • Input: 1 phase 200–240V AC
  • Output: 3 phase 380V AC
  • 8.0 A nominal output current
  • Integrated Class C2 EMC filter
  • Compact design – wall mountable
  • Controls asynchronous & synchronous (PM, IE2, IE3) motors
  • Advanced motor control functions: torque & speed control, sensorless vector control
  • Ambient operating temperature: up to 60°C without derating
  • 5 integrated safety functions via SoMove
  • IP20 protection rating
  • Modbus and CANopen embedded communication
  • Supports EtherNet/IP, EtherCAT, PROFIBUS, PROFINET, and more via expansion cards
  • IEC 60721-3-3 Class 3C3 conformal coating on PCB for harsh environments
Stock Code: ATV320U15M2C
Few in stock
Price 264.42 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    ATV320U15M2C

  • Brand

    Schneider Electric
