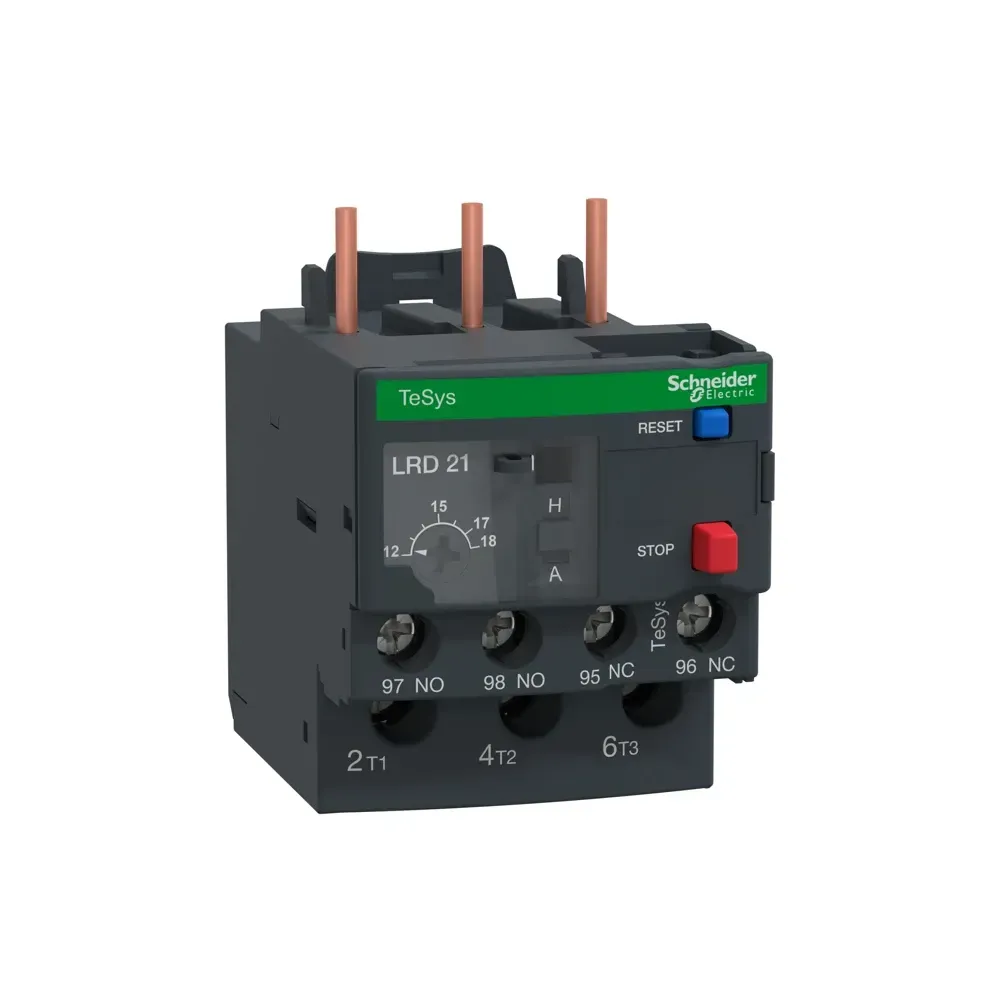

Schneider Electric LRD21 12-18A thermal overload relay Class 10A

Photo is representative

Schneider Electric LRD21 Thermal Overload Relay 12-18A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD21
GTIN 3389110346831
Stock status: In stock

priced individually

More arriving soon

Net price: £54.04

Gross price

£64.84

Schneider Electric LRD21 (LRD21) thermal overload relay from the TeSys Deca range, adjustable 12…18 A for motor protection. Class 10A thermal trip characteristics; rated operational voltage 690 V AC (0…400 Hz). Manual reset via blue push-button and red push-button stop; auxiliary contact configuration 1NO+1NC. Direct mountable under TeSys contactors (e.g., LC1D18, LC1D25, LC1D32, LC1D38) and suitable for AC or DC control circuits. Ambient compensation -20…60 °C; screw clamp terminals with specified torque, conforming to IEC 60947-4-1.

Specifications

Current Range

12-18A adjustable

Trip Class

Class 10A thermal protection

Operating Voltage

690V AC (0…400 Hz) maximum

Auxiliary Contacts

1NO+1NC configuration

Reset Type

Manual reset (blue push-button), stop (red push-button)

Mounting

Under contactor or plate/rail with accessories; direct mount to TeSys contactors (LC1D18/25/32/38)
