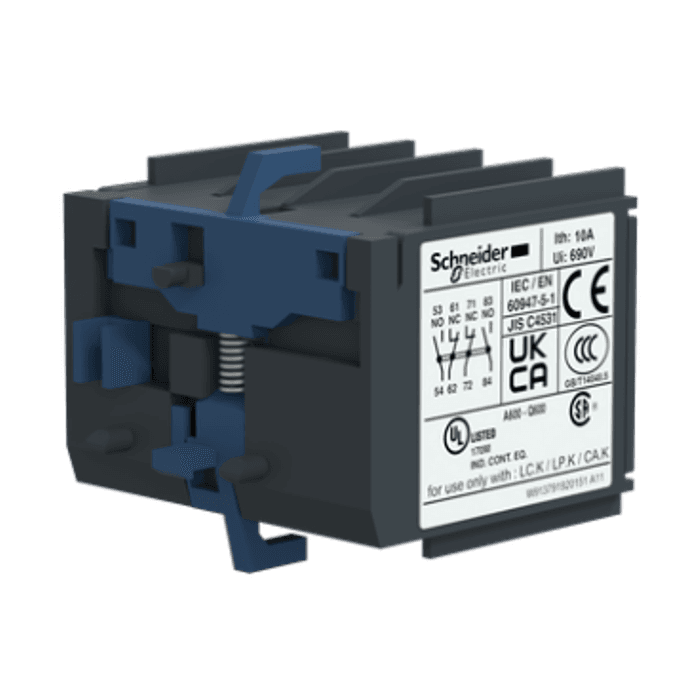

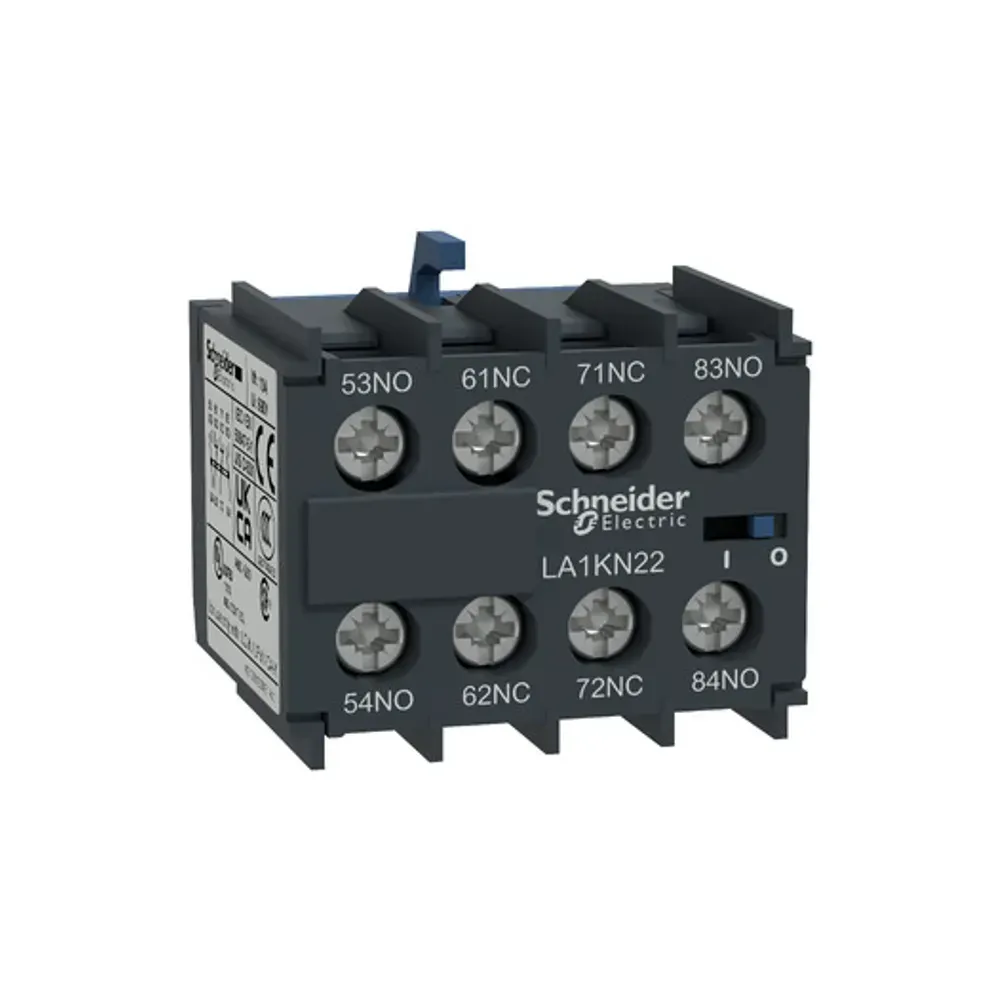

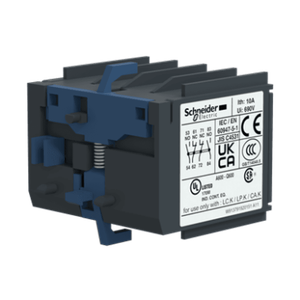

Schneider LA1KN22 Auxiliary Contact Block 2NO 2NC Front Mount
Schneider LA1KN22 Auxiliary Contact Block 2NO 2NC Front Mount

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Schneider 2NO 2NC Front Mount TeSys K Auxiliary Contact Block

The Schneider LA1KN22 is a front-mount auxiliary contact block offering 2 normally open and 2 normally closed contacts. Designed for TeSys K series contactors and control relays, this robust unit provides reliable auxiliary switching up to 10A and is certified to global standards.

Features include:

  • Auxiliary contact block for TeSys K contactors (LC1K, CA2K, CA3K)
  • 2 Normally Open (NO) + 2 Normally Closed (NC) contacts
  • Front clip-on mounting for quick and secure installation
  • Screw clamp terminals for solid and safe connections
  • Rated operational voltage: 690V AC, 25–400Hz
  • Rated insulation voltage: 690V (IEC), 600V (UL/CSA)
  • Thermal current rating: 10A at 50°C
  • Compact and reliable for use in motor control circuits
  • Standards-compliant (IEC, UL, CSA, CCC, CE, UKCA)
  • Ideal for expanding control functionality in compact applications
Stock Code: LA1KN22
Running low
Price 21.77 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    LA1KN22

  • Brand

    Schneider Electric

  • Normally Open Contacts

    2

  • Normally Closed Contacts

    2

  • Mounting

    Front

  • Terminal Type

    Screw Clamp

Documents

Brand

Schneider Electric
