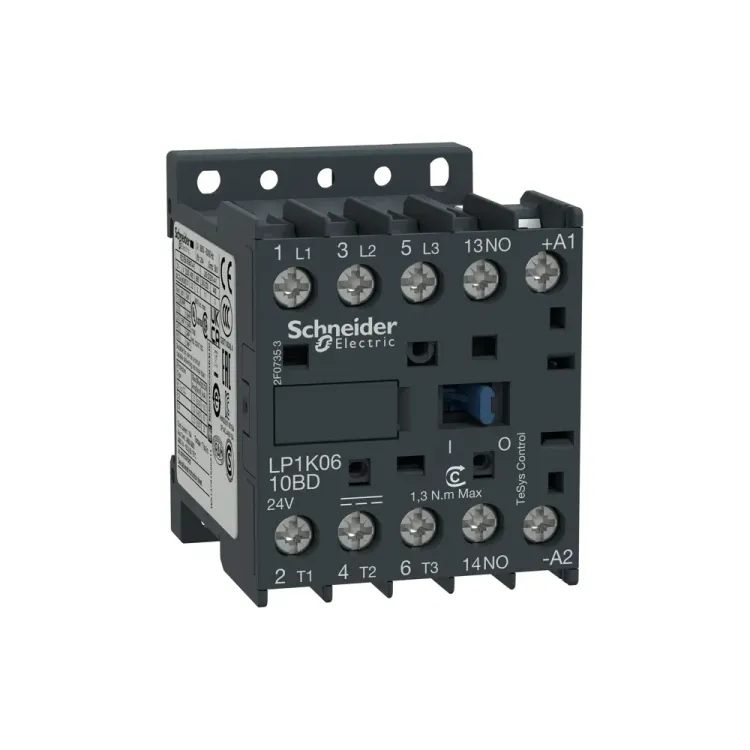

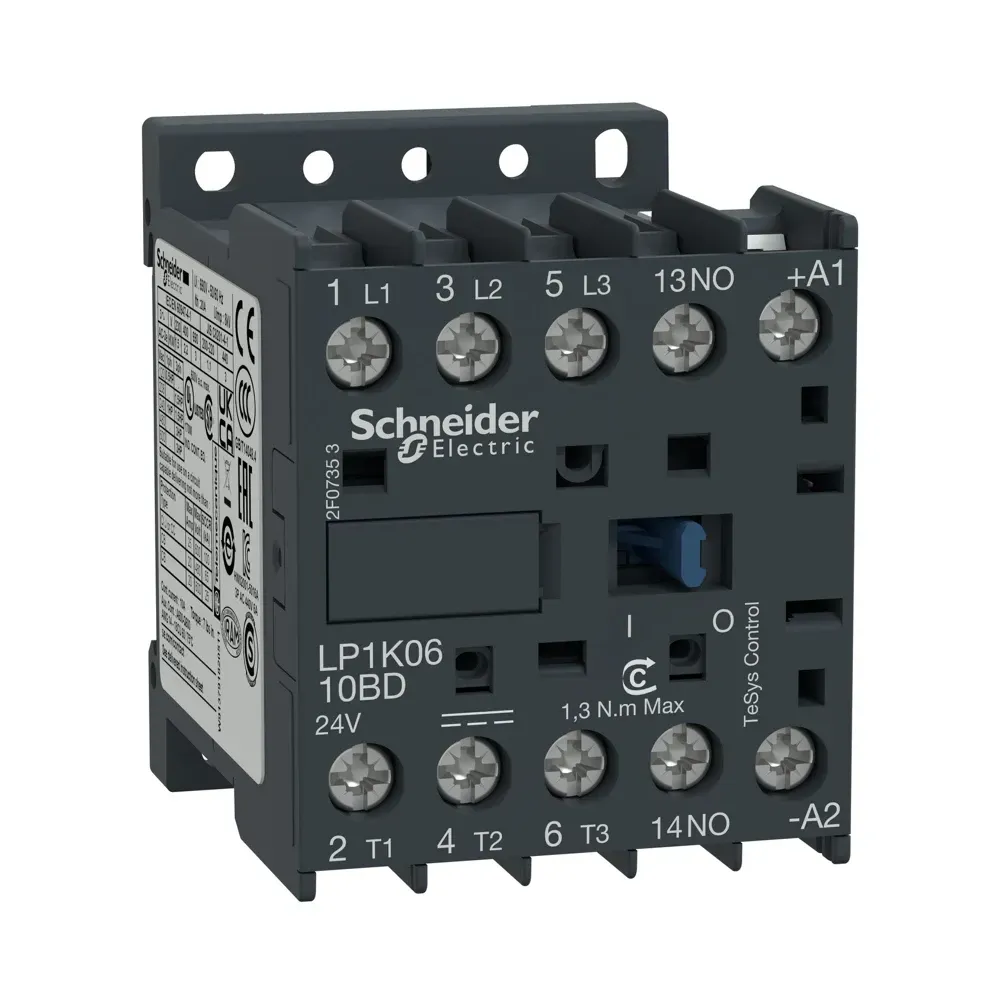

Front view Schneider TeSys K LP1K0910BD 3-pole 9A contactor with 1NO auxiliary

Photo is representative

Schneider TeSys K 9A 24V DC 3P Mini Contactor - LP1K0910BD

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LP1K0910BD
GTIN —
Stock status: 6 in stock

priced individually

Net price: £50.42

Gross price

£60.51

Schneider TeSys K mini contactor LP1K0910BD — 3-pole, 9 A AC-3 / AC-3e motor contactor with 1 NO instantaneous auxiliary contact and 24 V DC control coil. Compact DIN-rail or plate-mount design with screw-clamp terminals, IEC/EN and UL/CSA approvals. Suited for small motor starters (DOL, reversing, star-delta), lighting and resistive loads where space-saving switching is required.

Specifications

Current Rating

9 A (AC-3 / AC-3e at ≤ 440 V AC)

Control Coil

24 V DC (UC = 24 V DC)

Contact Configuration

3P power contacts (3 NO) + 1 NO auxiliary (instantaneous)

Frame Size

TeSys K (LP1K) ultra-compact

Terminal Type

Screw clamp terminals (1–2 cables; see datasheet for conductor ranges)

Mounting Method

35 mm DIN rail or plate

Motor Rating (AC-3)

2.2 kW @ 220–230 V; 4 kW @ 380–415 V; 4 kW @ 440–690 V

Operational Voltages

Power circuit ≤ 690 V AC (≤ 400 Hz); signalling circuit ≤ 690 V AC

Thermal Conventional Current (Ith)

20 A (power circuit at 60 °C); 10 A (signalling at 50 °C)

Making / Breaking Capacity

Irms making 110 A; breaking capacities up to 110 A depending on voltage (see datasheet)

Short-time Withstand (Icw)

90 A (50 °C, 1 s) decreasing to 20 A (≥15 min) — see datasheet table

Associated Fuse Rating

25 A gG (≤ 440 V) for power circuit; 10 A gG for signalling

Coil Power Consumption

Inrush 3 W; Hold-in 3 W (at 20 °C); Heat dissipation 1.3 W

Operating Speed & Times

Max 3600 cyc/h; operate 30–40 ms (energise, NO close); release 10 ms (de-energise, NO open)

Durability

Mechanical 10 million cycles; Electrical 1.3 million cycles (9 A AC-3)

Insulation & Surge

Rated insulation Ui: 690 V (IEC), 600 V (UL/CSA); impulse withstand 8 kV; Overvoltage category III

Protection & Certification

EN/IEC 60947-4-1, EN/IEC 60947-5-1; UL, CSA, CB, CCC, CE, UKCA, EAC

Ingress Protection

IP2X

Ambient Temperature

Operation: -25…50 °C; Storage: -50…80 °C

Dimensions & Weight

H 58 mm × W 45 mm × D 57 mm; Net weight 0.225 kg

Tightening Torque

0.8…1.3 N·m on screw clamp terminals

Country of Origin

FR

Warranty

18 months
